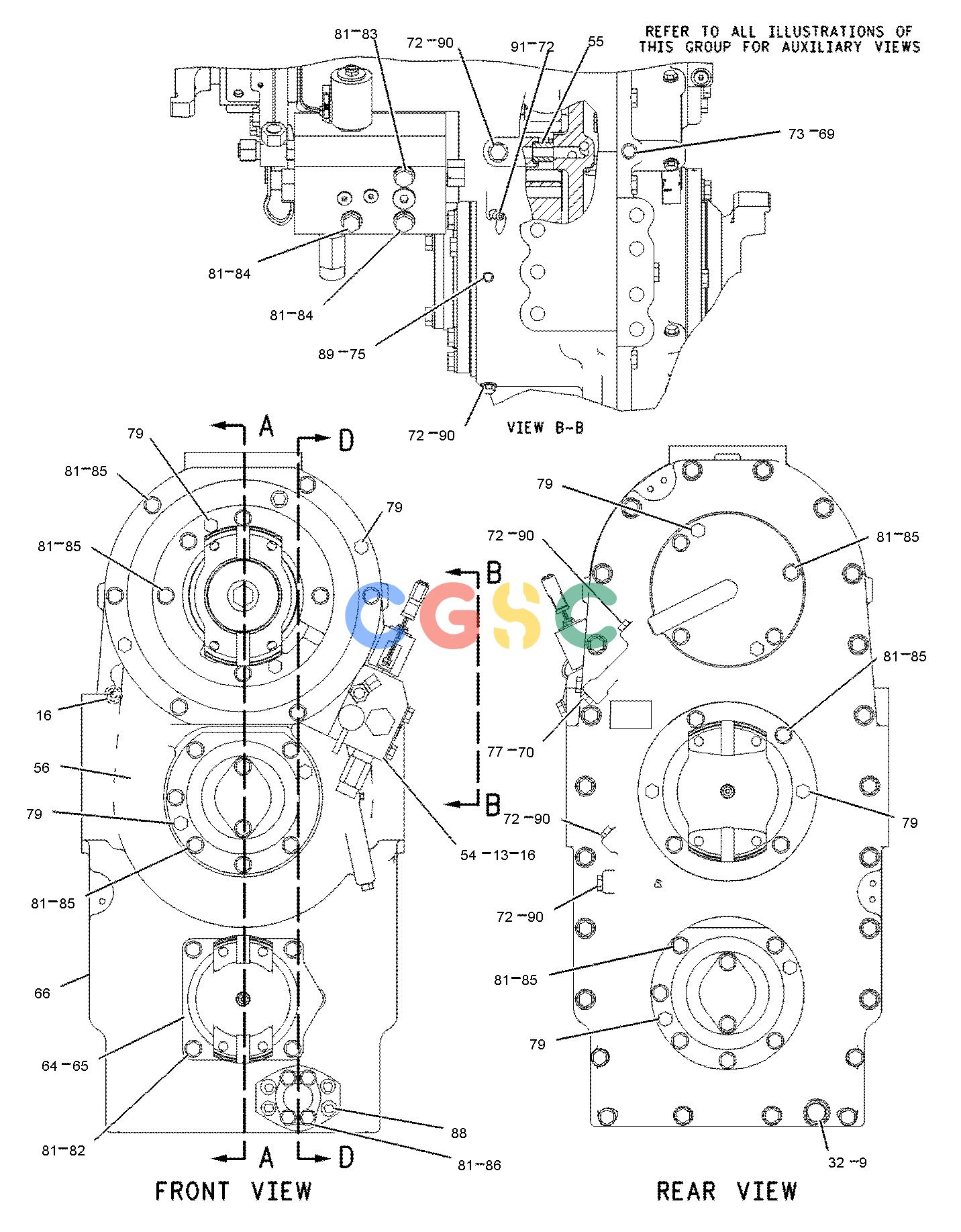

卡特零件查询（725） 213-3925: GEAR GP-OUTPUT TRANSFER
广数供应链运营团队, 14 02月, 2025，浏览：
829 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1M-4120 | [1] | RACE | |
| 2. | 128-3935 | [4] | BEARING AS-ROLLER | |
| 3. | 1M-5514 | [4] | RACE-ROLLER BEARING | |
| 4. | 1T-1006 | [3] | RETAINER | |
| 5. | 2D-8009 | [1] | SEAL-O-RING | |
| 6. | 2H-3935 | [4] | SEAL-O-RING | |
| 7. | 2R-0239 | [1] | SEAL-O-RING | |
| 8. | 3J-7719 | [1] | RING-RETAINING(INNER) | |
| 9. | 3K-0360 | [1] | SEAL-O-RING | |
| 10. | 3K-7161 | [1] | NUT-FLARED(3/8-24-THD) | |
| 11. | 3S-1404 | [1] | BEARING AS-ROLLER | |
| 12. | 4S-5971 | [2] | COVER | |
| 13. | 5F-7054 | [1] | SEAL-O-RING | |
| 14. | 5H-6005 | [4] | SEAL-O-RING | |
| 15. | 5K-9243 | [7] | ELBOW-FLARED | |
| 16. | 6F-6672 | [3] | SEAL-O-RING | |
| 17. | 7F-2122 | [1] | SEAL-O-RING | |
| 18. | 7F-8268 | [2] | SEAL-O-RING | |
| 19. | 8C-5238 | [1] | SEAL-V-RING | |
| 20. | 8S-9078 | [1] | RING-RETAINING | |
| 21. | 8S-9151 | [4] | CUP-BEARING | |
| 22. | 8S-9152 | [4] | CONE-BEARING | |
| 23. | 8T-6404 | [1] | SEAL-O-RING | |
| 25. | 9D-8042 | [1] | SEAL-O-RING | |
| 26. | 9H-5322 | [2] | RACE-ROLLER BEARING | |
| 27. | 9P-7118 | [2] | RING-SEAL | |
| 28. | 9S-5279 | [2] | BEARING AS-ROLLER | |
| 29. | 9S-7581 | [1] | CONNECTOR | |
| 30. | 9W-7925 | [1] | BEARING AS-TAPERED ROLLER | |
| 31. | 9W-7926 | [1] | CUP-BEARING | |
| 32. | 9X-2230 | [1] | PLUG-DRAIN(MAGNETIC)(OUTPUT TRANSFER GEAR) | |
| 33. | 9X-4605 | [1] | SEAL-LIP TYPE | |
| 34. | 9X-7743 | [1] | SEAL-LIP TYPE | |
| 35. | 137-2417 | [1] | YOKE | |
| 36. | 147-5529 | [1] | SEAL-LIP TYPE | |
| 37. | 148-9297 | [1] | SHROUD AS | |
| 38. | 148-9298 | [1] | PLATE AS | |
| 39. | 148-9306 | [1] | RETAINER AS | |
| | 9W-7783 | [1] | PLUG | |
| 40. | 148-9307 | [2] | SHIM PACK(INCLUDES 13-SHIMS) | |
| 41. | 148-9308 | [1] | CAGE AS | |
| | 9W-7783 | [2] | PLUG | |
| 42. | 148-9313 | [1] | TUBE | |
| 43. | 148-9314 | [1] | COVER AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| 44. | 148-9316 | [1] | RETAINER AS | |
| | 9W-6068 | [2] | PLUG | |
| | 9W-7783 | [1] | PLUG | |
| 45. | 148-9319 | [1] | YOKE AS | |
| 46. | 148-9328 | [1] | YOKE AS | |
| 47. | 148-9336 | [1] | GEAR(54-TEETH) | |
| 48. | 148-9337 | [1] | GEAR(58-TEETH) | |
| 49. | 148-9350Y | [1] | CARRIER GP-PLANETARY | |
| 50. | 148-9352 | [1] | SHAFT | |
| 51. | 148-9353 | [1] | SHAFT | |
| 52. | 148-9355 | [1] | PLATE | |
| 53. | 148-9357 | [1] | GEAR-SPUR(63-TEETH) | |
| 54. | 148-9368Y | [1] | VALVE GP-SOLENOID & RELIEF(OUTPUT TRANSFER GEAR) | |
| 55. | 148-9375 | [1] | SEAL | |
| 56. | 148-9385 | [1] | TUBE AS | |
| 57. | 148-9386 | [1] | TUBE AS | |
| 58. | 148-9387 | [1] | GEAR-SPUR(43-TEETH) | |
| 59. | 148-9388 | [1] | GEAR-SPUR(50-TEETH) | |
| 60. | 148-9391 | [2] | CAGE | |
| 61. | 154-8000 | [1] | SEAL-V-RING | |
| 62. | 155-6647 | [1] | CUP-BEARING | |
| 63. | 155-6648 | [1] | CONE-BEARING | |
| 64. | 176-1378 | [1] | SEAL-O-RING | |
| 65. | 188-8889 | [1] | RETAINER | |
| 66. | 196-1255Y | [1] | CASE GP-TRANSFER | |
| 67. | 212-9963 | [1] | FLANGE | |
| 68. | 085-8091M | [3] | BOLT(M10X1.5X55-MM) | |
| 69. | 1J-9671 | [1] | SEAL-O-RING | |
| 70. | 1N-5999 | [1] | PLUG-O-RING | |
| 71. | 1P-3707 | [1] | SEAL-RECTANGULAR | |
| 72. | 3J-7354 | [6] | SEAL-O-RING | |
| 73. | 3K-8460 | [1] | PLUG(1/2-20-THD) | |
| 74. | 4J-2506 | [1] | SEAL-O-RING | |
| 75. | 4J-7533 | [1] | SEAL-O-RING | |
| 76. | 5P-4116 | [1] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 77. | 7J-0204 | [1] | SEAL-O-RING | |
| 78. | 7X-2555M | [3] | BOLT(M16X2X80-MM) | |
| 79. | 7X-2621M | [12] | BOLT(M10X1.5X12-MM) | |
| 80. | 8C-3206 | [2] | FLANGE-HALF | |
| 81. | 8T-4121 | [52] | WASHER-HARD(11X21X2.5-MM THK) | |
| 82. | 8T-4136M | [8] | BOLT(M10X1.5X25-MM) | |
| 83. | 8T-4172M | [1] | BOLT(M10X1.5X80-MM) | |
| 84. | 8T-4178M | [2] | BOLT(M10X1.5X90-MM) | |
| 85. | 8T-4195M | [34] | BOLT(M10X1.5X30-MM) | |
| 86. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 87. | 8T-7547M | [1] | BOLT(M8X1.25X30-MM) | |
| 88. | 8T-8441M | [4] | BOLT-SOCKET HEAD(M12X1.75X25-MM) | |
| 89. | 9S-4180 | [1] | PLUG | |
| 90. | 9S-4182 | [5] | PLUG(7/16-20-THD) | |
| 91. | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
