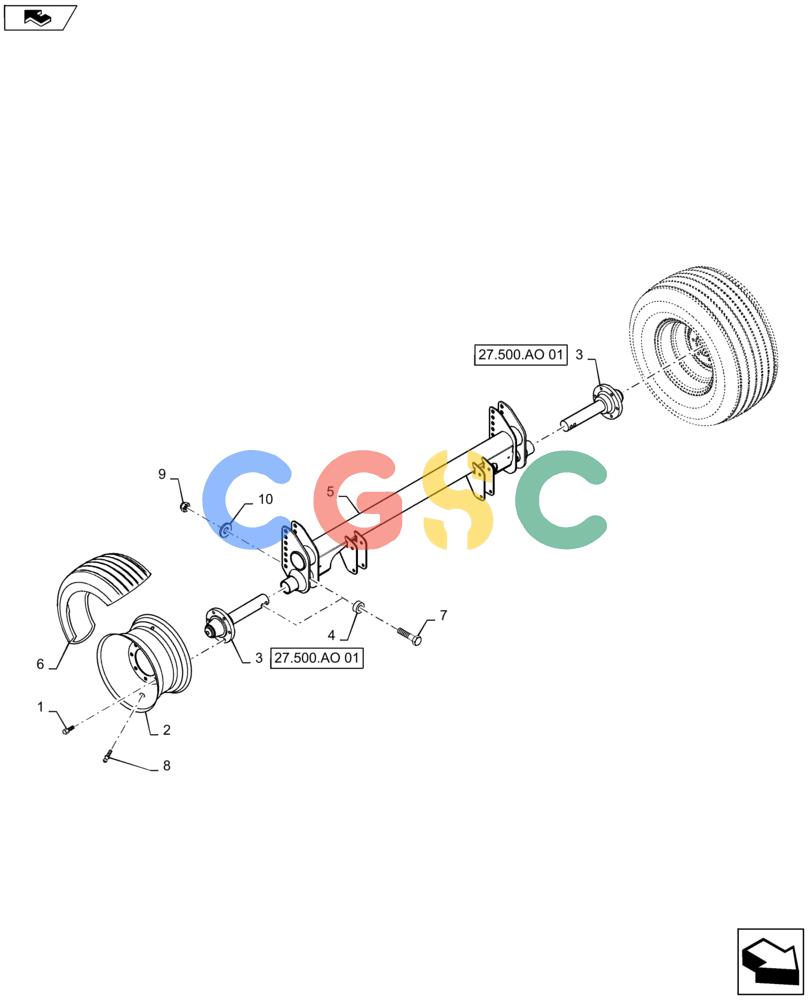

凯斯零件查询(RB455) - CASE IH ROUND BALER - NORTH AMERICA (1/14-12/15) (27.500.AL[03]) - VAR - 807260 - WHEELS & TIRES, 31 X 13.50-15, 8 PLY RIB Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
397 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
198056
|
[12] |
WHEEL BOLT,1/2" - 20 x 1.031"
|
NH
|
| 2. |
86604325
|
[2] |
RIM
|
PA
|
| 3. |
86974344
|
[2] |
HUB
|
PA
Spindle A Superseded by part number: 87663732
|
| 4. |
86641937
|
[2] |
SPACER,16.6mm ID x 31.75mm OD x 12.7mm Thk
|
PA
|
| 5. |
47569777
|
[1] |
AXLE
|
NH
W/ Undershot Rotors
|
| 5. |
84535647
|
[1] |
AXLE
|
NH
W/ Overshot Feeders
|
| 6. |
86564435
|
[2] |
TYRE/TIRE
|
NH
Tubeless Superseded by part number: TT41N397
|
| 7. |
374889
|
[2] |
BOLT,Hex, M16 x 100mm, Cl 8.8
|
NH
|
| 8. |
196033
|
[2] |
VALVE STEM
|
NH
|
| 9. |
86000441
|
[2] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 10. |
122432
|
[2] |
WASHER,17mm ID x 41mm OD x 6mm Thk
|
NH
Superseded by part number: 84058945
|
