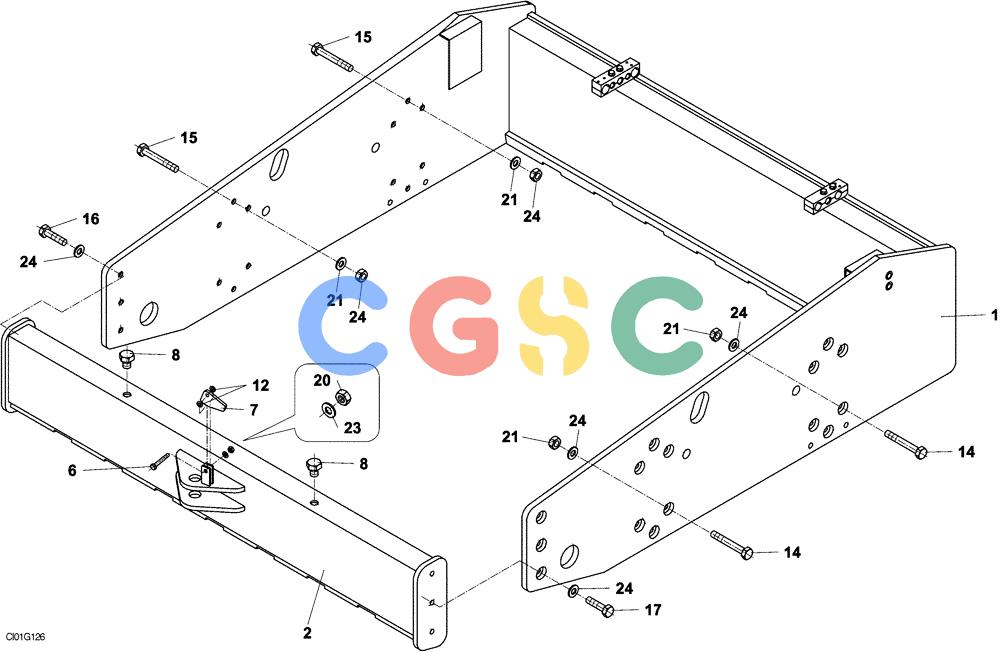

纽荷兰零件查询(CV700) - VIBRATORY ROLLER (9/01-) (12-005-00[01]) - CHASSIS - DRUM New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
238 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND104239 | [1] | FRAME | STA |
| 2. | ND104285 | [1] | CROSSRAIL | STA |
| 6. | ND053434 | [1] | SCREW | STAM10x50 |
| 7. | ND048624 | [1] | PLATE | STA |
| 8. | ND109004 | [2] | PLUG | STA |
| 12. | ND037213 | [2] | WASHER | STA |
| 14. | ND021335 | [12] | BOLT | STAM16 x 65 |
| 15. | ND103566 | [12] | BOLT | STAM16 x 55 |
| 16. | ND021330 | [3] | BOLT | STAM16 x 35 |
| 17. | ND021332 | [3] | BOLT | STAM16 x 45 |
| 20. | ND027302 | [1] | NUT | STAM10 |
| 21. | ND021851 | [24] | NUT | STAM16 |
| 23. | ND029250 | [1] | WASHER | STAID 10,5 |
| 24. | ND035943 | [30] | WASHER | STAID 16 |
