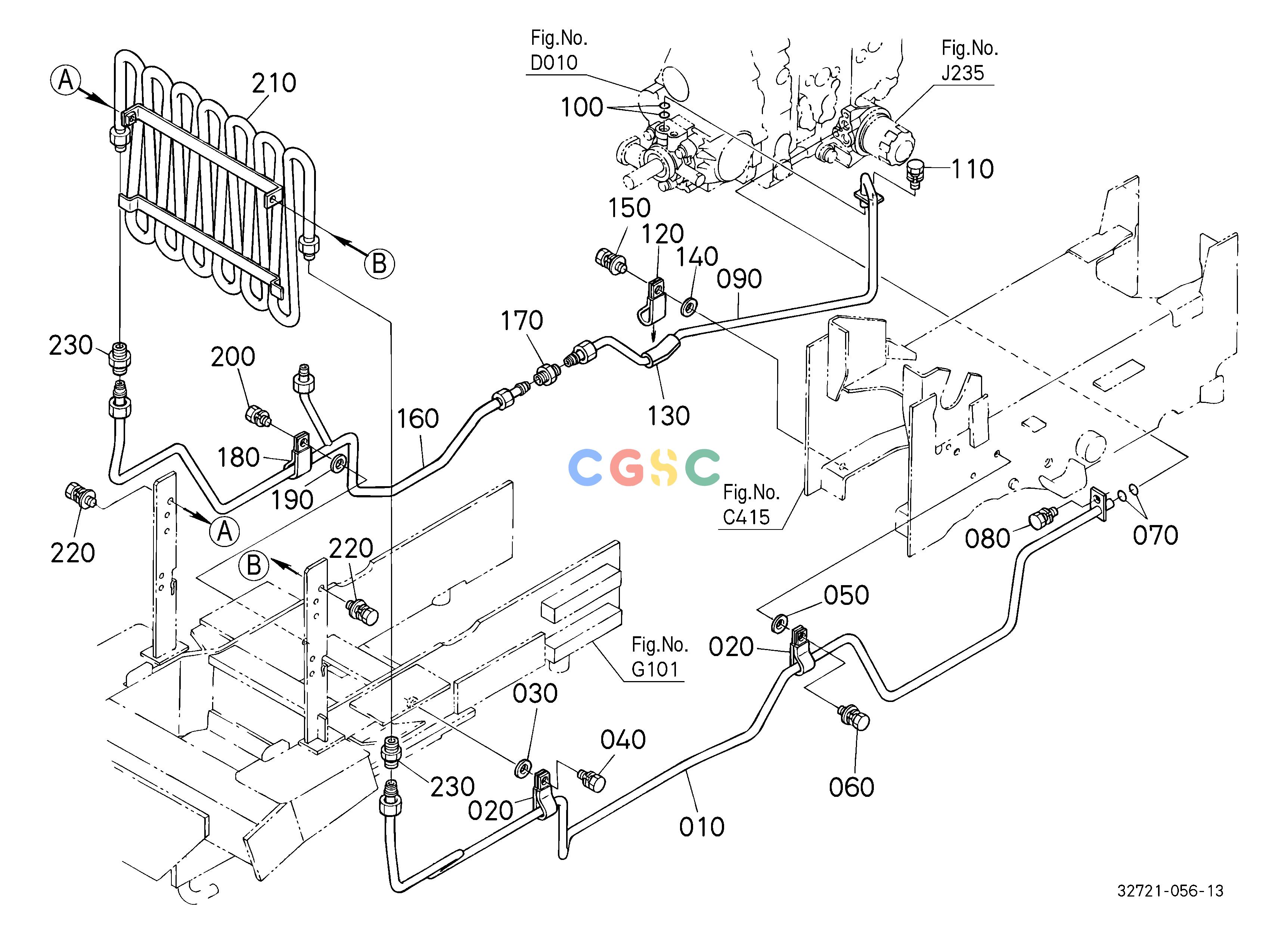

久保田零件查询J24000 HYDRAULIC OIL LINE(OIL COOLER) PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
680 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3272139320
|
[1] |
PIPE RETURN
|
1.1000(lbs); 0.500
|
| 010. |
H327039300
|
[1] |
PIPE RETURN
|
1.1000(lbs); 0.500
|
| 010. |
3272139323
|
[1] |
PIPE
|
1.1660(lbs); 0.530
|
| 020. |
6C05039410
|
[2] |
CLAMP PIPE
|
0.0286(lbs); 0.013
|
| 030. |
0401360100
|
[1] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 040. |
0113351016
|
[1] |
BOLT
|
0.0374(lbs); 0.017
|
| 050. |
0401360080
|
[1] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 060. |
0112560816
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 070. |
0481100120
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
0481600120
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 080. |
0112360816
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 090. |
3272139350
|
[1] |
PIPE
|
0.3960(lbs); 0.180
|
| 090. |
3272139353
|
[1] |
PIPE
|
0.4048(lbs); 0.184
|
| 100. |
0481100100
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 100. |
0481600100
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 110. |
0112360816
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 120. |
6C05039410
|
[1] |
CLAMP PIPE
|
0.0286(lbs); 0.013
|
| 130. |
3741075540
|
[1] |
CUSHION
|
0.0022(lbs); 0.001
|
| 130. |
T043035340
|
[1] |
CUSHION PIPE
|
0.0044(lbs); 0.002
|
| 140. |
0401360080
|
[1] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 150. |
0112560816
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 160. |
3272139360
|
[1] |
PIPE
|
0.7700(lbs); 0.350
|
| 160. |
H327139300
|
[1] |
PIPE
|
0.7700(lbs); 0.350
|
| 160. |
3272139363
|
[1] |
PIPE
|
0.7832(lbs); 0.356
|
| 170. |
3258338980
|
[1] |
JOINT PIPE
|
0.0000(lbs); 0.000
|
| 170. |
0601351002
|
[1] |
JOINT PIPE
|
0.0660(lbs); 0.030
|
| 170. |
0601351003
|
[1] |
JOINT PIPE
|
0.0616(lbs); 0.028
|
| 180. |
6C05039410
|
[1] |
CLAMP PIPE
|
0.0286(lbs); 0.013
|
| 190. |
0401360100
|
[1] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 200. |
0113351016
|
[1] |
BOLT
|
0.0374(lbs); 0.017
|
| 210. |
3272158710
|
[1] |
PIPE COOLER
|
0.0000(lbs); 0.000
|
| 210. |
3272158712
|
[1] |
PIPE COOLER
|
3.7400(lbs); 1.700
|
| 210. |
H327058700
|
[1] |
PIPE COOLER
|
3.7400(lbs); 1.700
|
| 210. |
6C15058710
|
[1] |
PIPE COOLER
|
3.7400(lbs); 1.700
|
| 220. |
0112560816
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 220. |
0112550818
|
[2] |
BOLT
|
0.0330(lbs); 0.015
|
| 230. |
3135138330
|
[2] |
JOINT PIPE
|
0.0000(lbs); 0.000
|
| 230. |
0601311202
|
[2] |
JOINT PIPE
|
0.0880(lbs); 0.040
|
| 230. |
0601351203
|
[2] |
JOINT PIPE
|
0.0770(lbs); 0.035
|
