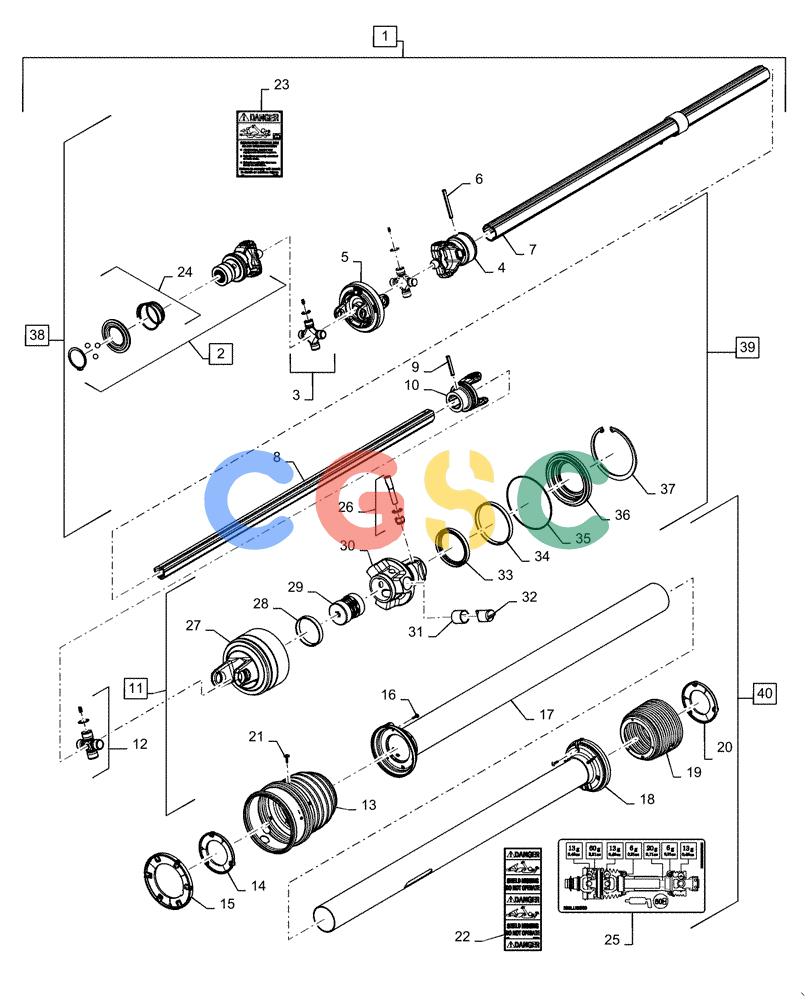

凯斯零件查询(RB455) - CASE IH ROUND BALER - NORTH AMERICA (1/14-12/15) (31.201.AD[04]) - VAR - 726872 - PTO ASSY, 1000 RPM, COC, 1200 N-M Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
626 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47372355
|
[1] |
PTO
|
NH
Cut Out Clutch, 1200 Nm, Incl 2 - 40
|
| 2. |
87517788
|
[1] |
YOKE
|
BEL
Incl 24
|
| 3. |
87517787
|
[2] |
U-JOINT SPIDER
|
BEL
|
| 4. |
87517786
|
[1] |
YOKE
|
BEL
|
| 5. |
87517785
|
[1] |
BODY
|
BEL
|
| 6. |
87517784
|
[1] |
ROLL PIN,8.6mm OD x 80mm L
|
BEL
|
| 7. |
84540237
|
[1] |
DRIVE SHAFT
|
NH
Outer
|
| 8. |
84540238
|
[1] |
DRIVE SHAFT
|
NH
Inner
|
| 9. |
87586150
|
[1] |
ROLL PIN,8mm OD x 55mm L
|
ZED
|
| 10. |
87517779
|
[1] |
YOKE
|
BEL
Rear
|
| 11. |
47598207
|
[1] |
PTO CLUTCH
|
NH
Cutout, Incl 26 - 37
|
| 12. |
87018246
|
[1] |
SPIDER
|
RAC
|
| 13. |
84540241
|
[1] |
CONE
|
NH
|
| 14. |
87517774
|
[1] |
SHIELD
|
BEL
Front
|
| 15. |
87517775
|
[1] |
SHIELD
|
BEL
Front
|
| 16. |
87587200
|
[6] |
SELF-TAP SCREW
|
ZED
4.8 x 22
|
| 17. |
84540242
|
[1] |
SHIELD
|
NH
Outer
|
| 18. |
84540243
|
[1] |
SHIELD
|
NH
Inner
|
| 19. |
84147760
|
[1] |
CONE
|
NH
Shield
|
| 20. |
86625852
|
[1] |
RING NUT
|
NH
|
| 21. |
87716643
|
[6] |
SELF-TAP SCREW
|
ZED
4.8 x 22, Flange Head
|
| 22. |
849471
|
[1] |
DANGER DECAL
|
NH
|
| 23. |
849472
|
[1] |
DANGER DECAL
|
NH
|
| 24. |
47654384
|
[1] |
COLLAR
|
NH
Collar Superseded by part number: 87587209
|
| 25. |
47598238
|
[1] |
IMPORTANT DECAL
|
NH
|
| 26. |
47362902
|
[1] |
PIN
|
NH
Kit Superseded by part number: 86625865
|
| 27. |
47598242
|
[1] |
YOKE
|
NH
|
| 28. |
84540246
|
[1] |
RING,72mm ID x 77mm OD
|
NH
Guide Superseded by part number: 47475722
|
| 29. |
47598325
|
[1] |
SPRING,58mm OD x 72mm L
|
NH
|
| 30. |
84540248
|
[1] |
HUB
|
NH
|
| 31. |
84801513
|
[3] |
BUSHING,28mm ID x 32mm ID x 30mm Thk
|
ZED
|
| 32. |
84801514
|
[1] |
COVER
|
ZED
|
| 33. |
84540249
|
[1] |
RING,105mm ID x 110mm OD x 10mm Thk
|
NH
|
| 34. |
84540296
|
[1] |
SEAL
|
NH
|
| 35. |
84540254
|
[1] |
RING,139.4mm ID x 2.62mm Thk
|
NH
|
| 36. |
84540255
|
[1] |
COVER
|
NH
|
| 37. |
87039016
|
[1] |
SNAP RING,M138
|
PA
|
| 38. |
47598556
|
[1] |
HALF SHAFT
|
NH
Outer, Incl 2 - 7, 13 - 17, 22, 23, 25
|
| 39. |
47598557
|
[1] |
HALF SHAFT
|
NH
Inner, Incl 8 - 11, 16, 18 - 20, 26 - 37
|
| 40. |
47598558
|
[1] |
KIT
|
NH
Shield, Incl 13 -21
|
