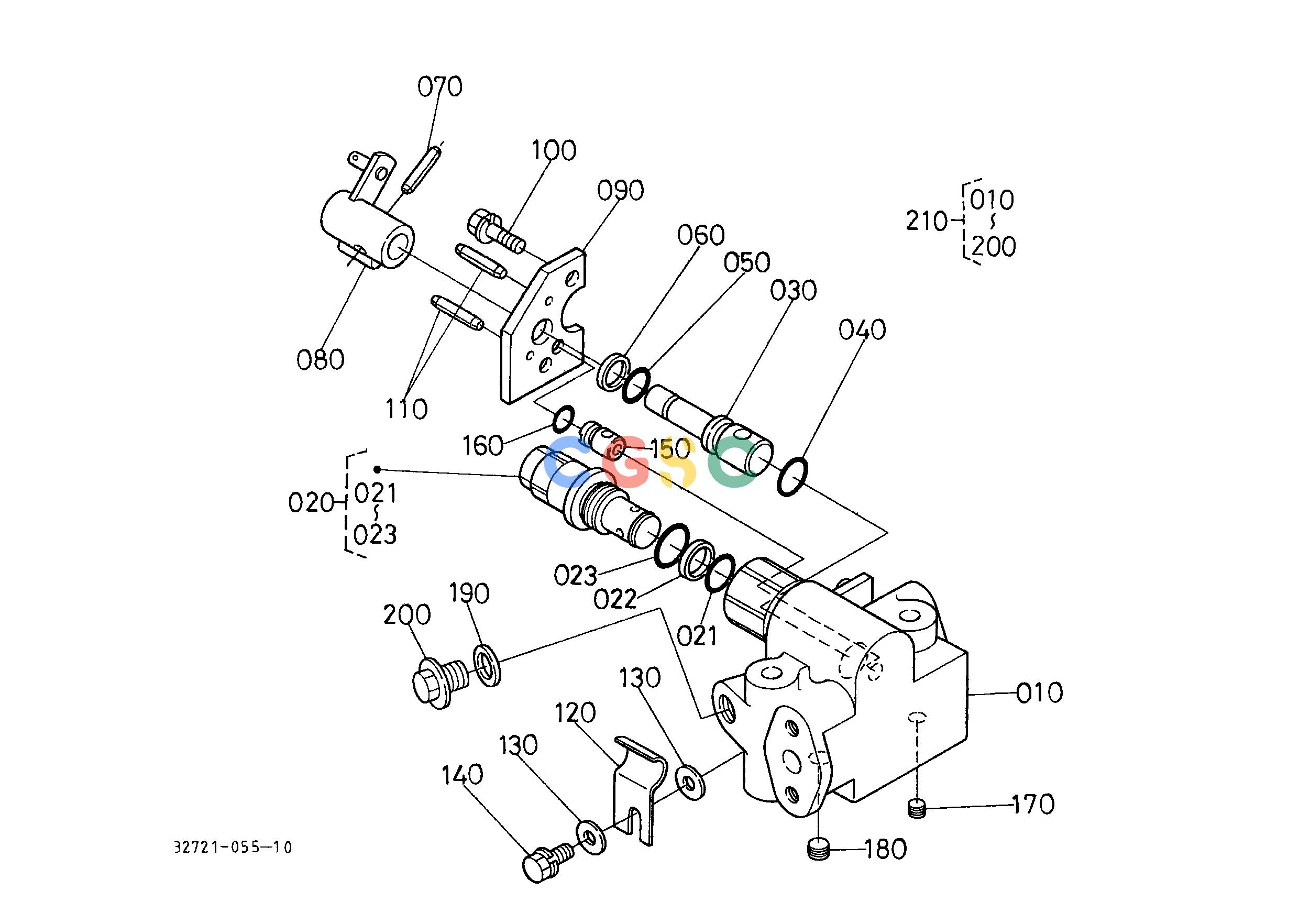

久保田零件查询J46101 HYDRAULIC OUTLET [COMPONENT PARTS] ## S.No.<=65166 PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
947 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3272139510
|
[1] |
BODY RELIEF VALVE
|
4.5540(lbs); 2.070
|
| 020. |
3272137900
|
[1] |
ASSY VALVE RELIEF
|
0.3652(lbs); 0.166
|
| 021. |
0481705150
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 022. |
6781038370
|
[1] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 023. |
0481700220
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
3272139520
|
[1] |
SPOOL
|
0.1540(lbs); 0.070
|
| 040. |
0481000180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
0481700180
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
0481000140
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
0481700140
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 060. |
3407666250
|
[1] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 070. |
0541100422
|
[1] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 080. |
3272139530
|
[1] |
LEVER
|
0.1518(lbs); 0.069
|
| 090. |
3272139540
|
[1] |
PLATE
|
0.2090(lbs); 0.095
|
| 100. |
0112350820
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 110. |
0541100412
|
[2] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 110. |
0541100414
|
[2] |
PIN SPRING
|
0.0022(lbs); 0.001
|
| 120. |
3843017180
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 130. |
0401360060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 140. |
0102350616
|
[1] |
BOLT
|
0.0132(lbs); 0.006
|
| 150. |
3272139550
|
[1] |
SPOOL
|
0.0748(lbs); 0.034
|
| 160. |
0481000070
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 160. |
0481700070
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 170. |
3135137160
|
[2] |
PLUG
|
0.0066(lbs); 0.003
|
| 180. |
3135137150
|
[2] |
PLUG
|
0.0132(lbs); 0.006
|
| 190. |
0471701700
|
[1] |
WASHER WITH RUBBER
|
0.0066(lbs); 0.003
|
| 200. |
0631125030
|
[1] |
PLUG
|
0.1122(lbs); 0.051
|
| 210. |
3272139500
|
[1] |
ASSY VALVE
|
5.5000(lbs); 2.500
|
