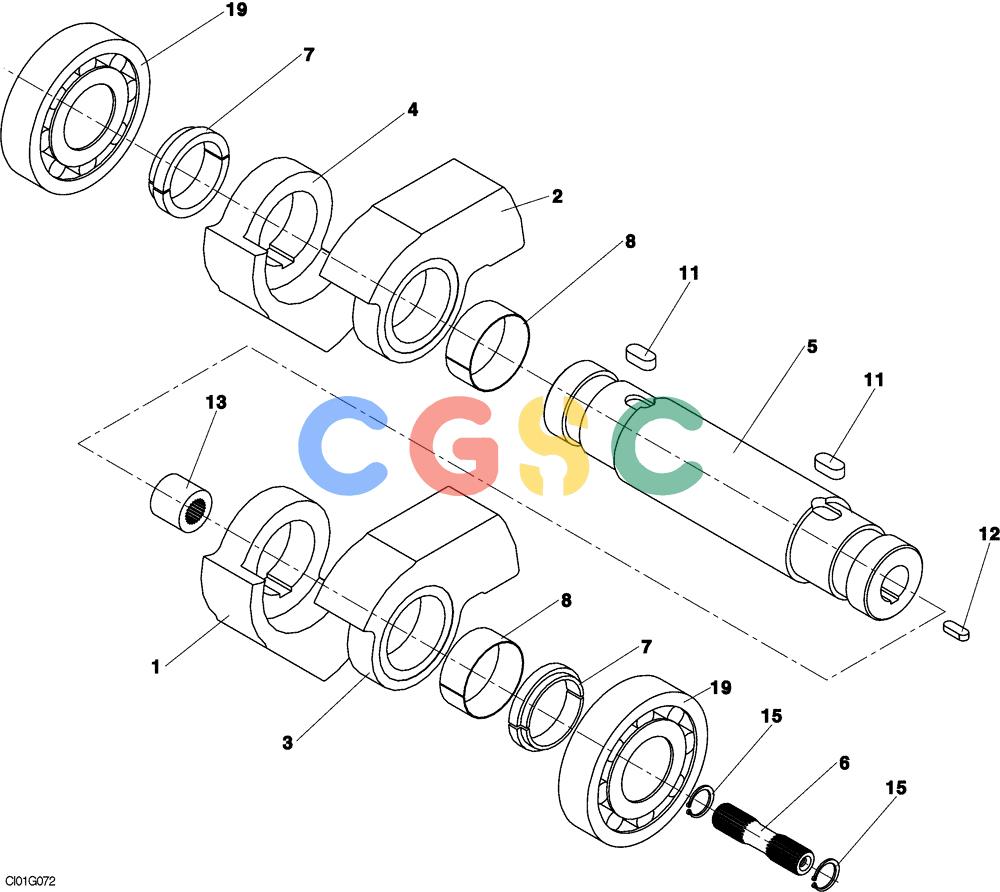

纽荷兰零件查询(CV700) - VIBRATORY ROLLER (9/01-) (12-012-00[01]) - VIBRATORY - DRUM New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
447 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND104244 | [1] | ECCENTRIC | STA |
| 2. | ND104247 | [1] | ECCENTRIC | STA |
| 3. | ND104248 | [1] | ECCENTRIC | STA |
| 4. | ND104246 | [1] | ECCENTRIC | STA |
| 5. | ND104279 | [1] | SHAFT | STA |
| 6. | ND104342 | [1] | SHAFT | STA |
| 7. | ND024475 | [2] | RING | STA |
| 8. | ND104340 | [2] | BUSHING | STA |
| 11. | ND033853 | [2] | KEY | STA |
| 12. | ND033840 | [1] | KEY | STA6 x 32 |
| 13. | ND104341 | [1] | INSERT | STA |
| 15. | ND069833 | [2] | SNAP RING | STA |
| 19. | ND068950 | [2] | ROLLER BEARING | STA Superseded by part number: 84410880 |
