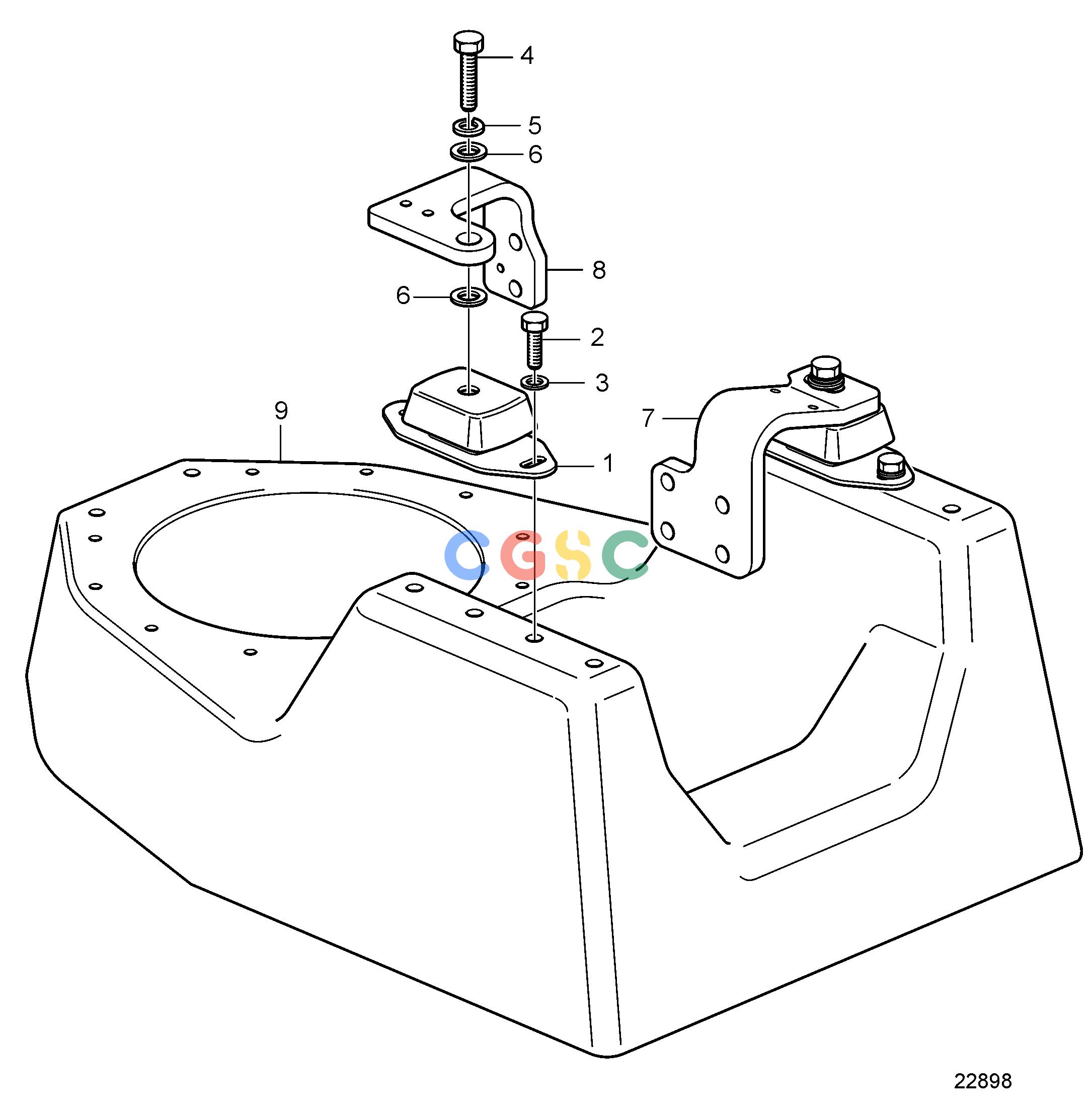

沃尔沃零件查询D1-13; D1-13B; D1-20; D1-20B; D1-30; D1-30B; D2-40; D2-40B; D1-13F; D1-20F; D1-30F; D2-40FEngineEngine Suspension, Sail Boat Drive UnitEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
962 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
861460
|
[2] |
Rubber cushion
|
|
| 2. |
963580
|
[4] |
Hexagon screw
|
|
| 3. |
976945
|
[4] |
Washer
|
|
| 4. |
959710
|
[2] |
Hexagon screw
|
|
| 5. |
941912
|
[2] |
Spring washer
|
|
| 6. |
955900
|
[4] |
Washer
|
|
| 7. |
3819577
|
[1] |
Engine bracket, front
|
Starboard, D1-13A, D1-13B, Replaced by 21107569
|
| 7. |
21107569
|
[1] |
Engine bracket, front
|
Starboard, D1-13F
|
| 8. |
3812710
|
[1] |
Engine bracket, front
|
Port
|
| 9. |
3842284
|
[1] |
Engine bed
|
|
