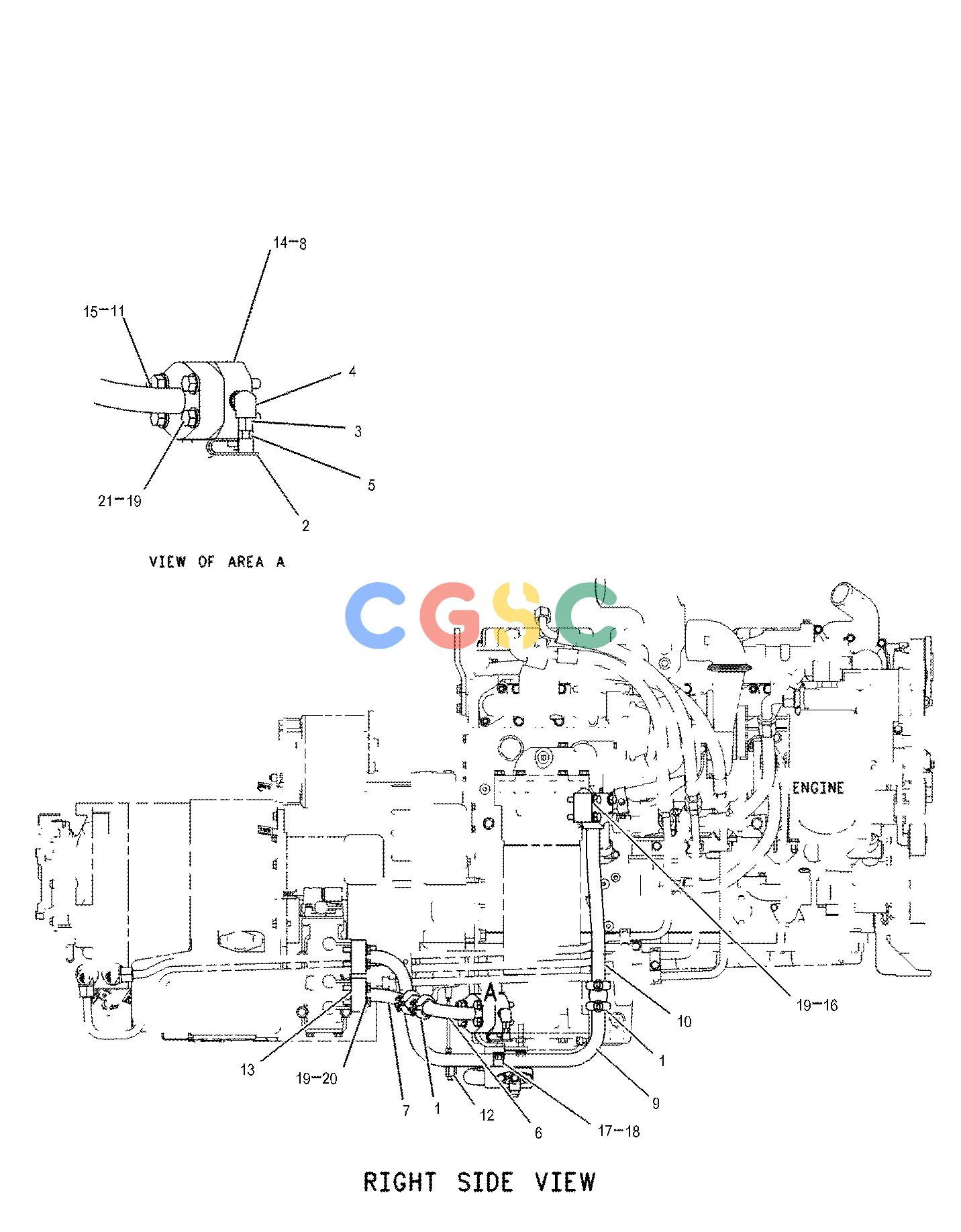

卡特零件查询（725） 150-8258: LINES GP-POWER TRAIN COOLER
广数供应链运营团队, 14 02月, 2025，浏览：
665 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4S-0503 | [2] | JOINT AS-TUBE | |
| 2. | 8C-3447 | [1] | CAP-DUST | |
| 3. | 148-8305 | [1] | ADAPTER AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 5P-9617 | [1] | ADAPTER | |
| 4. | 150-3065 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-0484 | [1] | ELBOW | |
| 5. | 164-5590 | [1] | VALVE AS-FLUID SAMPLING(POWER TRAIN OIL) | |
| 6. | 171-2225 | [1] | TUBE AS | |
| 7. | 172-9976 | [1] | TUBE AS | |
| 8. | 173-3240 | [1] | BLOCK | |
| 9. | 193-7767 | [1] | TUBE AS | |
| 10. | 193-7768 | [1] | TUBE AS | |
| 11. | 118-6331 | [1] | STUD-TAPERLOCK | |
| 12. | 148-8407 | [1] | PLUG AS | |
| 13. | 1P-3705 | [2] | SEAL-RECTANGULAR | |
| 14. | 1P-3708 | [3] | SEAL-RECTANGULAR | |
| 15. | 6V-8188 | [1] | NUT(1/2-13-THD) | |
| 16. | 7X-0326 | [4] | BOLT(1/2-13X3-IN) | |
| 17. | 8S-0023 | [1] | CLIP(SLOT) | |
| 18. | 8S-0024 | [1] | CLIP(TAB) | |
| 19. | 8T-4223 | [16] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 20. | 8T-4910M | [8] | BOLT(M12X1.75X60-MM) | |
| 21. | 8T-9391 | [3] | BOLT(1/2-13X3.75-IN) | |
| | M | | METRIC PART |
