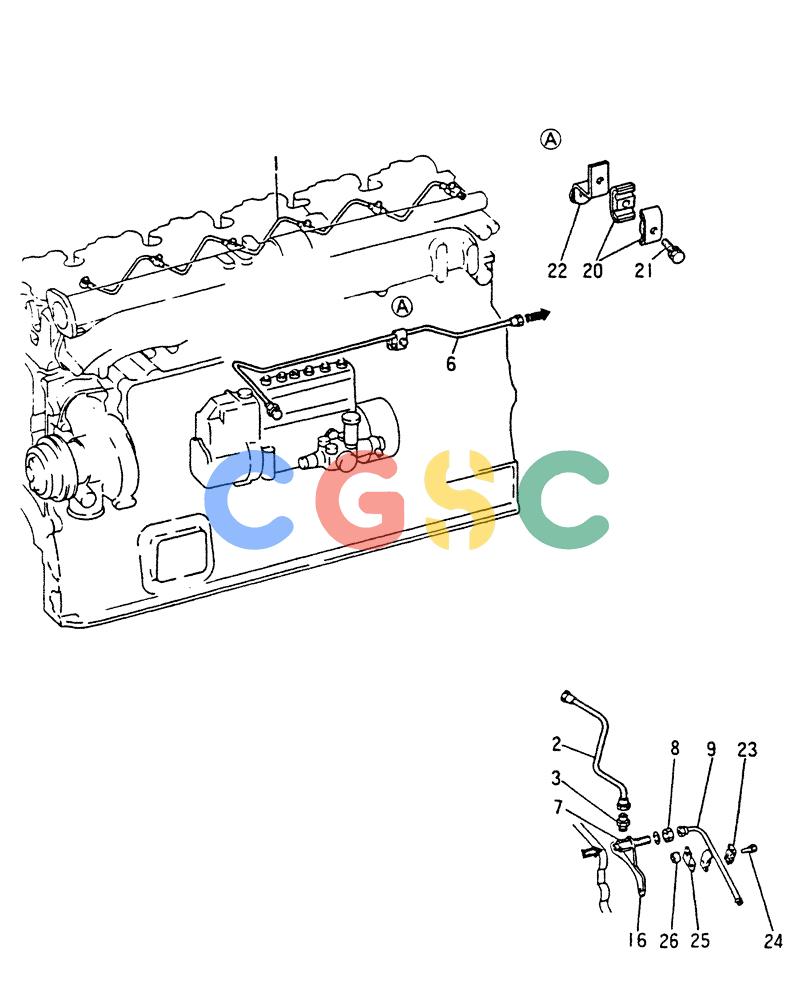

神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K909A, K912A, K916, & K935 (1/76-12/06) (03-017) - FUEL RETURN SYSTEM Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
892 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D221CT-KS0B | [1] | FUEL RETURN SYSTEM(M5) | |
| . . | 6D221CT-KS01 | [1] | FUEL RETURN SYSTEM(M3) | |
| 1. | VAME056323 | [1] | PIPE | KOBPIPE, FUEL LEAK OFF Superseded by part number: 240284A1 |
| 2. | VAME059630 | [1] | PIPE | KOBPIPE, FUEL RETURN |
| 3. | VAMH038906 | [1] | HYD CONNECTOR | KOBCONNECTOR PT1/8-M14 Superseded by part number: 133327A1 |
| 6. | VAME059592 | [1] | PIPE | KOBPIPE, OVER FLOW Superseded by part number: 134732A1 |
| 7. | VA3193343600 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 8. | VAMF430728 | [1] | NUT | KOBNUT 14 Superseded by part number: 132634A1 |
| . . | VAMF450408 | [1] | WASHER | KOBWASHER, SPG 14 |
| 9. | VAME059618 | [1] | PIPE | KOBPIPE, FUEL RETURN 10 |
| 16. | VA3096105500 | [1] | BRACKET, FUEL | |
| 20. | VAMH021233 | [2] | CLAMP | KOBCLAMP Superseded by part number: 133329A1 |
| 21. | VAMF240031 | [1] | WASHER | KOBW/WSR.6X30 |
| 22. | VAME059508 | [1] | STAY | KOBSTAY |
| 23. | VAMH021233 | [2] | CLAMP | KOBCLAMP Superseded by part number: 133329A1 |
| 24. | VAMF240031 | [1] | WASHER | KOBW/WSR 6X30 |
| 25. | VAME930318 | [1] | STAY | KOBSTAY |
| 26. | VAME920037 | [1] | SPACER L=15 (FOR M3 ONLY) | |
| . . | VA3123005900 | [1] | SPACER | SMSPACER L=10 (FOR M5 ONLY) |
