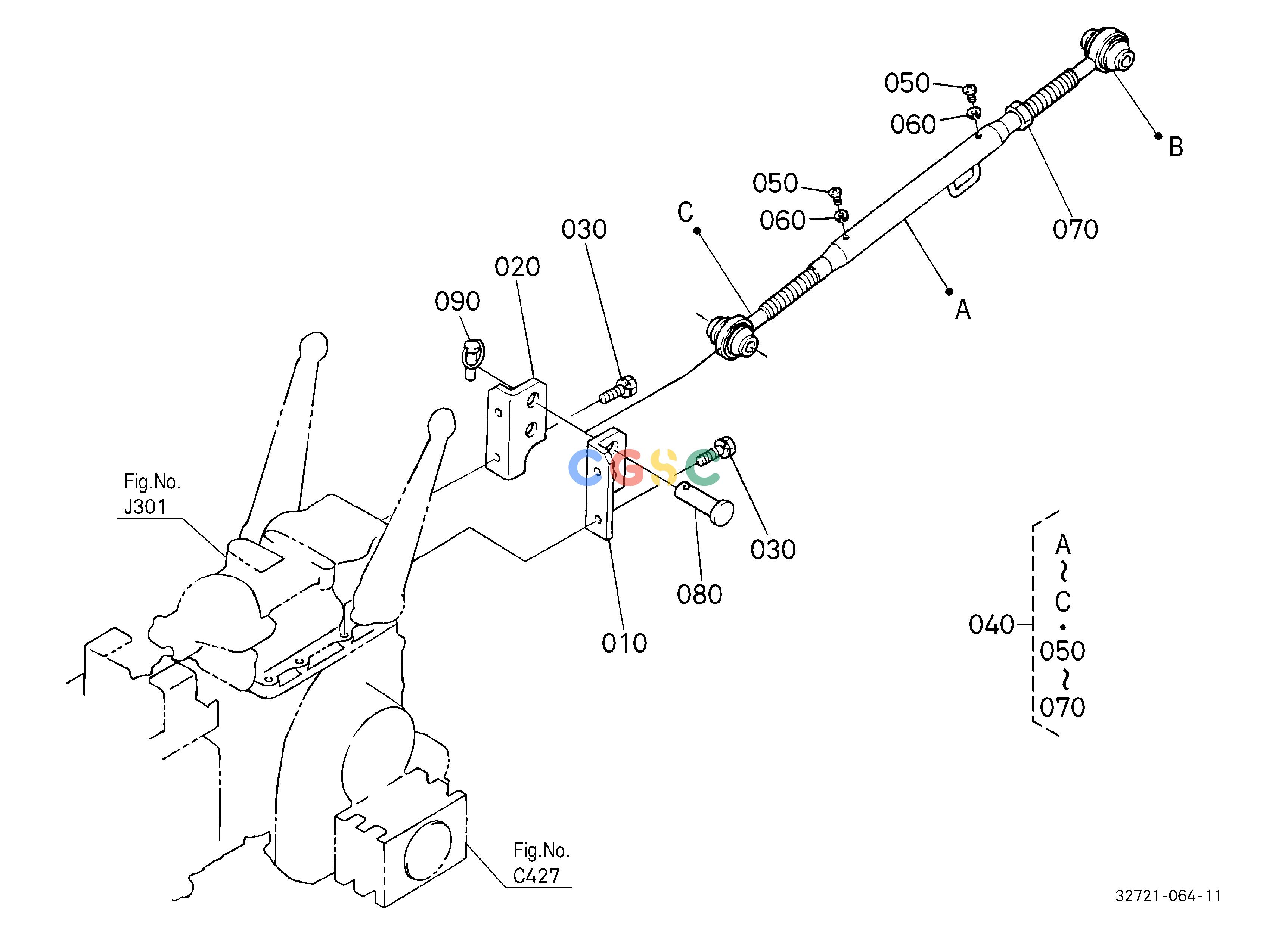

久保田零件查询K12000 3-POINT LINKAGE 1(TOP LINK) TOP LINK/TOP LINK BRACKET/PTO PROTECTOREPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
598 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3272165190
|
[1] |
BRACKET TOP LINK LH
|
1.2540(lbs); 0.570
|
| 020. |
3272165160
|
[1] |
BRACKET TOP LINK RH
|
1.2540(lbs); 0.570
|
| 030. |
0112351230
|
[4] |
BOLT
|
0.0880(lbs); 0.040
|
| 040. |
6C04065400
|
[1] |
ASSY LINK TOP
|
4.7520(lbs); 2.160
|
| 050. |
0301450606
|
[2] |
SCREW PAN-HEAD
|
0.0594(lbs); 0.027
|
| 060. |
0451260060
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 070. |
0215250200
|
[1] |
NUT
|
0.0704(lbs); 0.032
|
| 080. |
3115071360
|
[2] |
PIN JOINT
|
0.3652(lbs); 0.166
|
| 090. |
3415037640
|
[2] |
PIN SET
|
0.1320(lbs); 0.060
|
