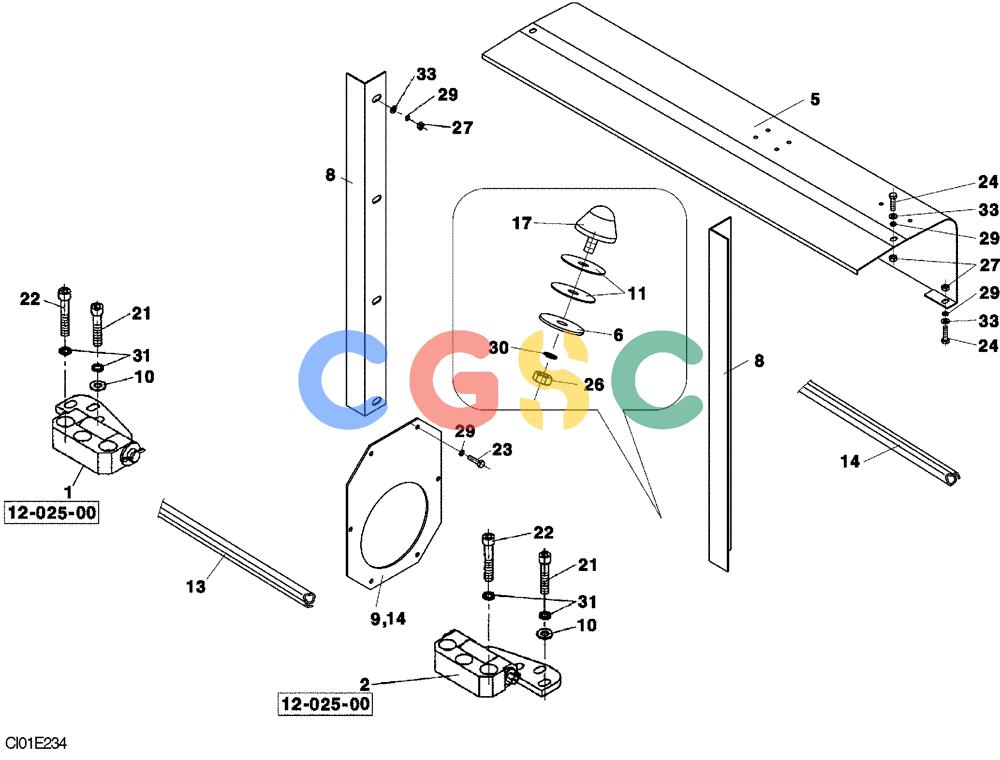

纽荷兰零件查询(CV700) - VIBRATORY ROLLER (9/01-) (12-024-00[01]) - ENGINE COVER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
984 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND104406 | [1] | HINGE | STA |
| 2. | ND104407 | [1] | HINGE | STA |
| 5. | ND104298 | [1] | COVER | STA |
| 6. | ND103516 | [2] | WASHER | STA |
| 8. | ND104356 | [2] | BAR | STA |
| 9. | ND052382 | [1] | PLATE | STA |
| 10. | ND042815 | [6] | WASHER | STAID 12 Superseded by part number: ND029267 |
| 11. | ND104572 | [4] | WASHER | STA |
| 13. | ND104454 | [1] | GASKET | STA1610mm |
| 14. | ND104455 | [1] | GASKET | STA455mm |
| 17. | ND079088 | [2] | BUMPER | STA |
| 21. | ND024272 | [6] | BOLT | STAM12 x 35 |
| 22. | ND024274 | [6] | BOLT | STAM12 x 45 |
| 23. | ND021287 | [6] | BOLT | STAM6 x 12 |
| 24. | ND021289 | [4] | BOLT | STAM6 x 20 |
| 26. | ND021848 | [2] | NUT | STAM8 Superseded by part number: ND034087 |
| 27. | ND021847 | [12] | NUT | STAM6 |
| 29. | ND029309 | [18] | SPRING WASHER | STAID 6,1 |
| 30. | ND029310 | [2] | WASHER | STAID 8,2 |
| 31. | ND035942 | [12] | WASHER | STAID 12 |
| 33. | ND029248 | [12] | WASHER | STAID 6,4 |
