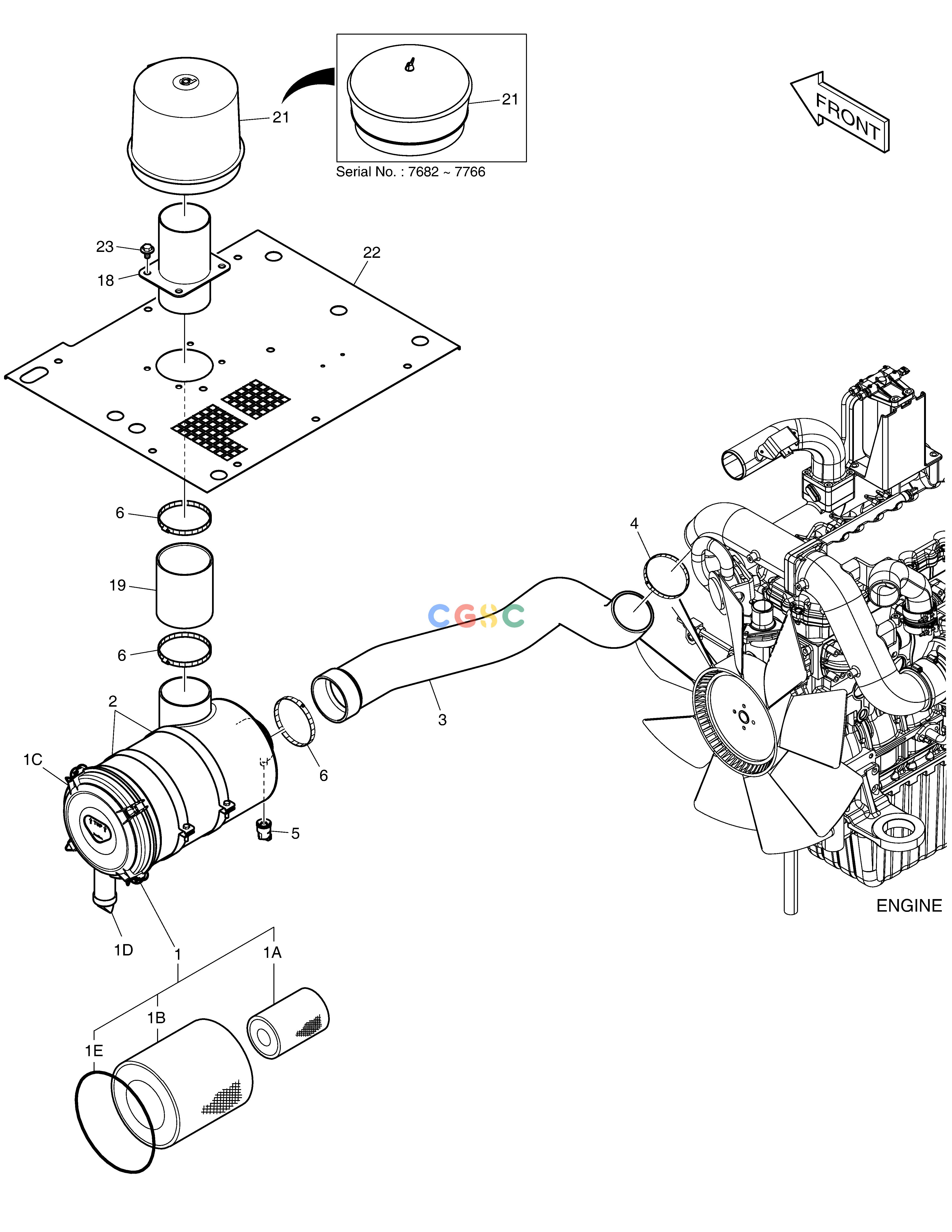

斗山零件查询AIR CLEANER - PRE CLEANER DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
180 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400414-00511
|
[-] |
|
|
| 1. |
204-00067
|
[1] |
AIR CLEANER
|
|
| 1. |
400414-00547
|
[1] |
|
|
| 18. |
430208-00074
|
[1] |
|
|
| 19. |
420101-00213
|
[1] |
|
|
| 1A. |
474-00039
|
[1] |
. ELEMENT,INNER
|
|
| 1B. |
474-00040
|
[1] |
ELEMENT,OUTER
|
|
| 1C. |
204-00075
|
[1] |
. COVER
|
|
| 1D. |
204-00070
|
[1] |
VALVE
|
|
| 1E. |
401002-01072
|
[1] |
O-RING
|
|
| 2. |
124-00298B
|
[2] |
BAND;AIR CLEANER
|
|
| 21. |
2204-9014A
|
[1] |
CLEANER;PRE
|
|
| 21. |
400415-00043
|
[1] |
|
|
| 22. |
110508-00922A
|
[1] |
|
|
| 23. |
DS0025015
|
[4] |
BOLT
|
|
| 3. |
K1030455
|
[1] |
HOSE;AIR
|
|
| 4. |
S8510118
|
[1] |
CLAMP
|
|
| 5. |
800217-00100
|
[1] |
INDICATOR,DUST
|
|
| 6. |
S8510143
|
[3] |
CLAMP
|
|
