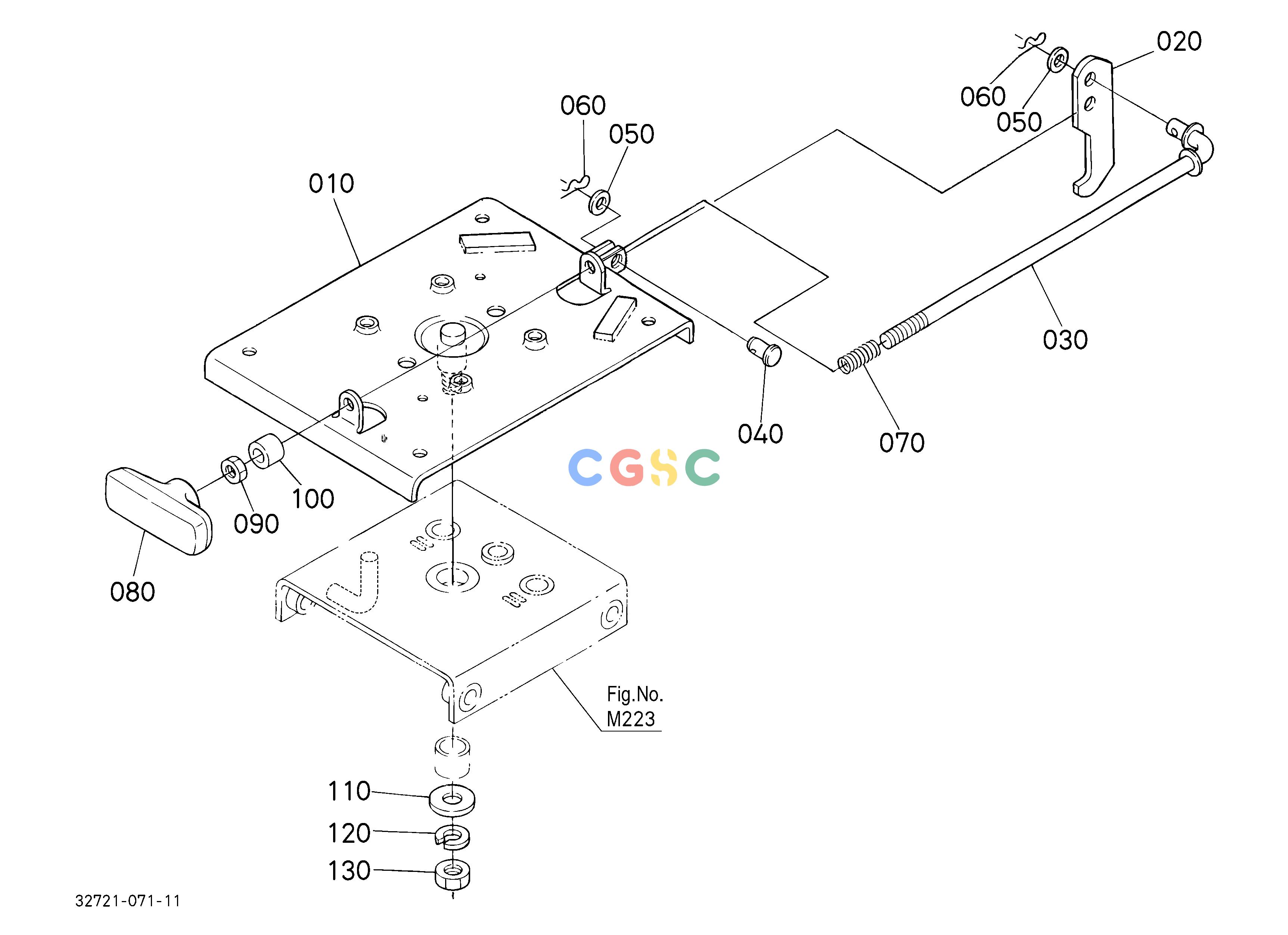

久保田零件查询M22200 SEAT TURN TABLE HOOD/BONNETEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
156 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3272145510
|
[1] |
PLATE SEAT TURN
|
3.0800(lbs); 1.400
|
| 020. |
3272145520
|
[1] |
LEVER CLAMP
|
0.2596(lbs); 0.118
|
| 030. |
3272145760
|
[1] |
ROD CLAMP
|
0.4202(lbs); 0.191
|
| 040. |
0512261020
|
[1] |
PIN JOINT
|
0.0440(lbs); 0.020
|
| 050. |
0401150100
|
[2] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 060. |
0551561000
|
[2] |
PIN SNAP
|
0.0044(lbs); 0.002
|
| 070. |
5730472260
|
[1] |
SPRING OPEN
|
0.0220(lbs); 0.010
|
| 080. |
3135582370
|
[1] |
GRIP LEVER
|
0.0880(lbs); 0.040
|
| 090. |
0211850100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 100. |
3843029530
|
[1] |
SPACER
|
0.0220(lbs); 0.010
|
| 110. |
0401360140
|
[1] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 120. |
0451260140
|
[1] |
WASHER SPRING
|
0.0176(lbs); 0.008
|
| 130. |
0217450140
|
[1] |
NUT
|
0.0308(lbs); 0.014
|
