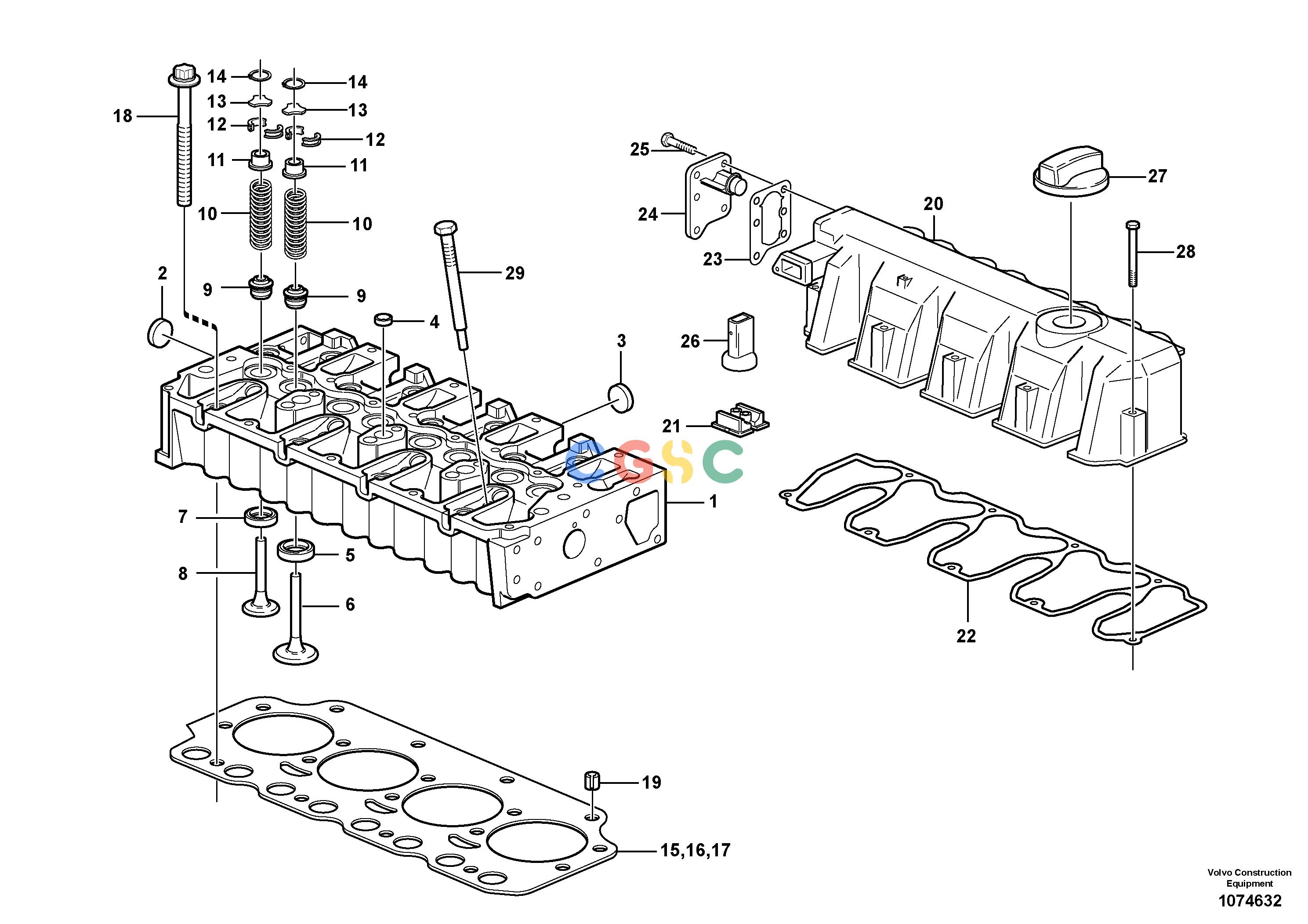

沃尔沃零件查询EC140C Cylinder headS/N 110001-1113128282939-8282939VOE8282939NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
499 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE21070757
|
[1] |
Cylinder head
|
ENG -11925099
|
| 1. |
VOE23095765
|
|
Cylinder head
|
ENG 11925100-
|
| 2. |
VOE20914266
|
[1] |
Core Plug
|
|
| 3. |
VOE20412745
|
[3] |
Core plug
|
|
| 4. |
VOE20412733
|
[3] |
Core plug
|
|
| 5. |
VOE20849976
|
[4] |
Valve seat
|
|
| 6. |
VOE20798699
|
[4] |
Inlet valve
|
|
| 7. |
VOE20849979
|
[4] |
Insert
|
|
| 8. |
VOE20798533
|
[4] |
Exhaust valve
|
|
| 9. |
VOE20459855
|
[8] |
Valve seal
|
|
| 10. |
VOE20459851
|
[8] |
Valve spring
|
|
| 11. |
VOE20840747
|
[8] |
Spring disc
|
|
| 12. |
VOE20459857
|
[16] |
Valve sleeve
|
|
| 13. |
VOE20840807
|
[8] |
Thrust washer
|
|
| 14. |
VOE20840772
|
[8] |
Lock ring
|
|
| 15. |
VOE20882841
|
[1] |
Cylinder head gasket
|
1 BORE
THICK = 1,13 MM
|
| 16. |
VOE20882839
|
[1] |
Cylinder head gasket
|
2 BORES
THICK = 1,23 MM
|
| 17. |
VOE20882838
|
[1] |
Cylinder head gasket
|
3 BORES
THICK = 1,33 MM
|
| 18. |
VOE20459838
|
[13] |
Bolt
|
|
| 19. |
VOE20459839
|
[2] |
Bushing
|
|
| 20. |
VOE21455712
|
[1] |
Valve cover
|
|
| 21. |
VOE20459835
|
[1] |
Cover
|
|
| 22. |
VOE21056701
|
[1] |
Gasket
|
|
| 23. |
VOE20840801
|
[1] |
Gasket
|
|
| 24. |
VOE20933359
|
[1] |
Oil Separator
|
|
| 25. |
VOE20797542
|
[6] |
Hexagon screw
|
|
| 26. |
VOE20459836
|
[1] |
Nozzle
|
|
| 27. |
VOE20412589
|
[1] |
Filler cap
|
|
| 28. |
VOE22278501
|
[9] |
Hexagon screw
|
|
| 29. |
VOE21455743
|
[4] |
Plug
|
|
