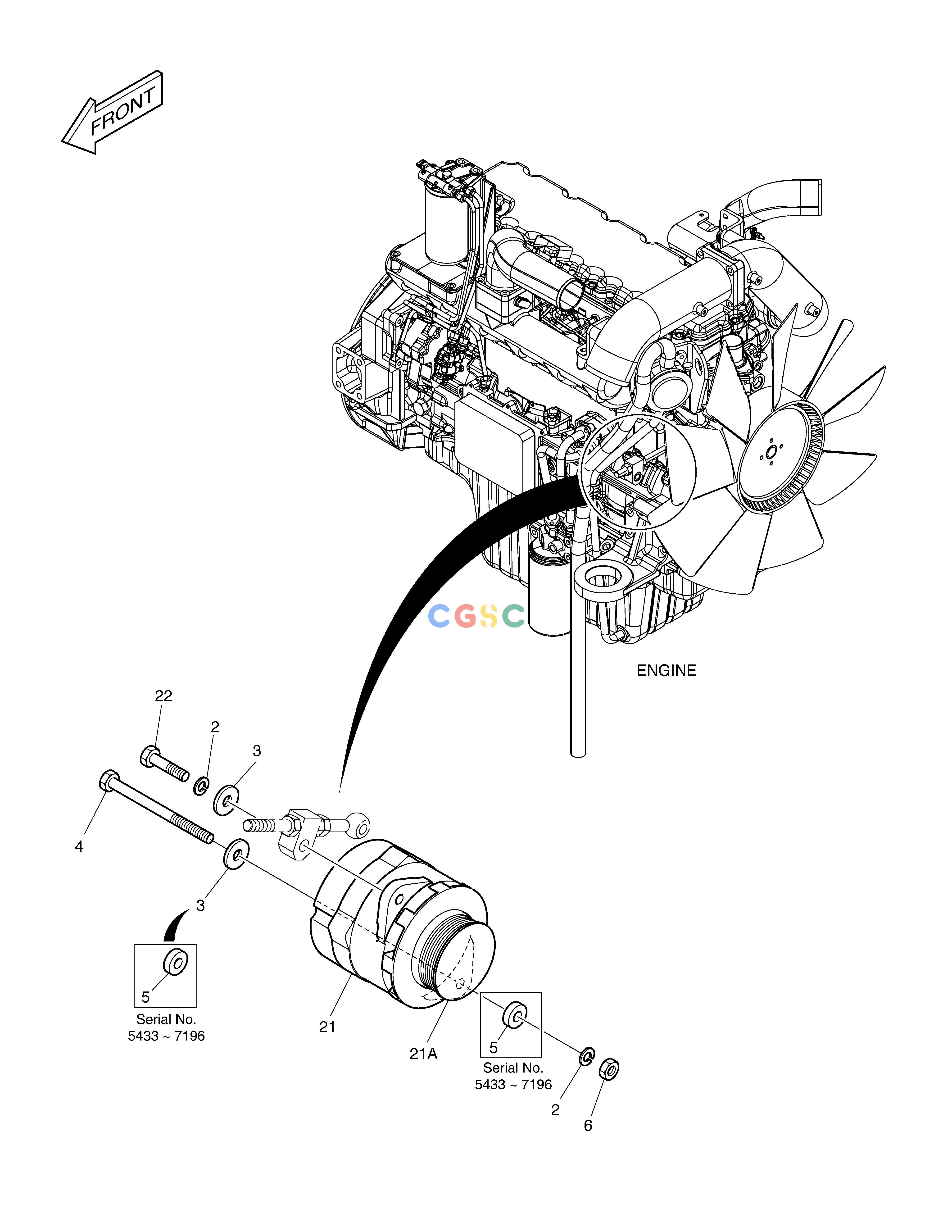

斗山零件查询ALTERNATOR - 80A DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
292 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-01895
|
[-] |
|
|
| -. |
K1008715
|
[-] |
ALTERNATOR MOUNTING
|
|
| 2. |
S5102703
|
[2] |
WASHER
|
|
| 21. |
K1010703
|
[1] |
ALTERNATOR 80A
|
300901-00033
|
| 21. |
300901-00033
|
[1] |
|
|
| 21A. |
130707-00030
|
[1] |
|
130707-00042
|
| 21A. |
130707-00042
|
[1] |
|
|
| 22. |
S0760853
|
[1] |
BOLT
|
|
| 3. |
2114-1058D54
|
[1] |
WASHER
|
|
| 3. |
DS0401188
|
[2] |
WASHER
|
|
| 4. |
S0562653
|
[1] |
BOLT
|
S0562666
|
| 4. |
S0562666
|
[1] |
BOLT
|
|
| 5. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 6. |
S4012733
|
[1] |
NUT
|
|
