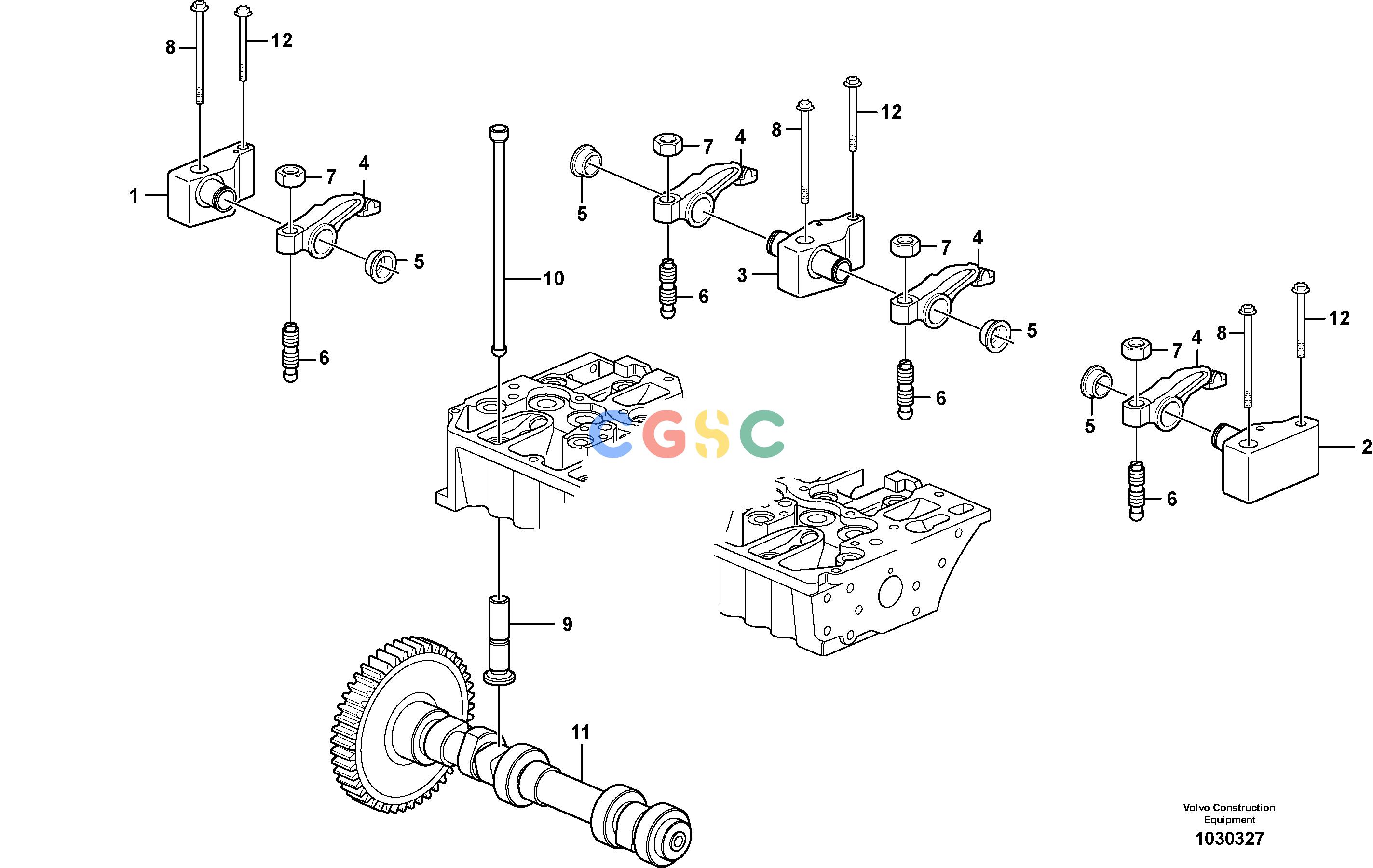

沃尔沃零件查询EC140C Valve mechanismS/N 110001-1113128282939-NoneVOE8282939ENG -11925099Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
272 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20799056
|
[1] |
Bracket
|
|
| 2. |
VOE20799047
|
[1] |
Bracket
|
|
| 3. |
VOE20799053
|
[3] |
Bracket
|
|
| 4. |
VOE21448926
|
[8] |
Rocker arm
|
|
| 5. |
VOE20794115
|
[8] |
Retaining ring
|
|
| 6. |
VOE20913851
|
[8] |
Adjusting Screw
|
|
| 7. |
VOE11700373
|
[8] |
Nut
|
|
| 8. |
VOE20459837
|
[5] |
Bolt
|
|
| 9. |
VOE20799076
|
[8] |
Tappet
|
|
| 10. |
VOE21345578
|
[8] |
Tube
|
|
| 11. |
VOE21793662
|
[1] |
Camshaft
|
|
| 12. |
VOE993275
|
[5] |
Six point screw
|
|
