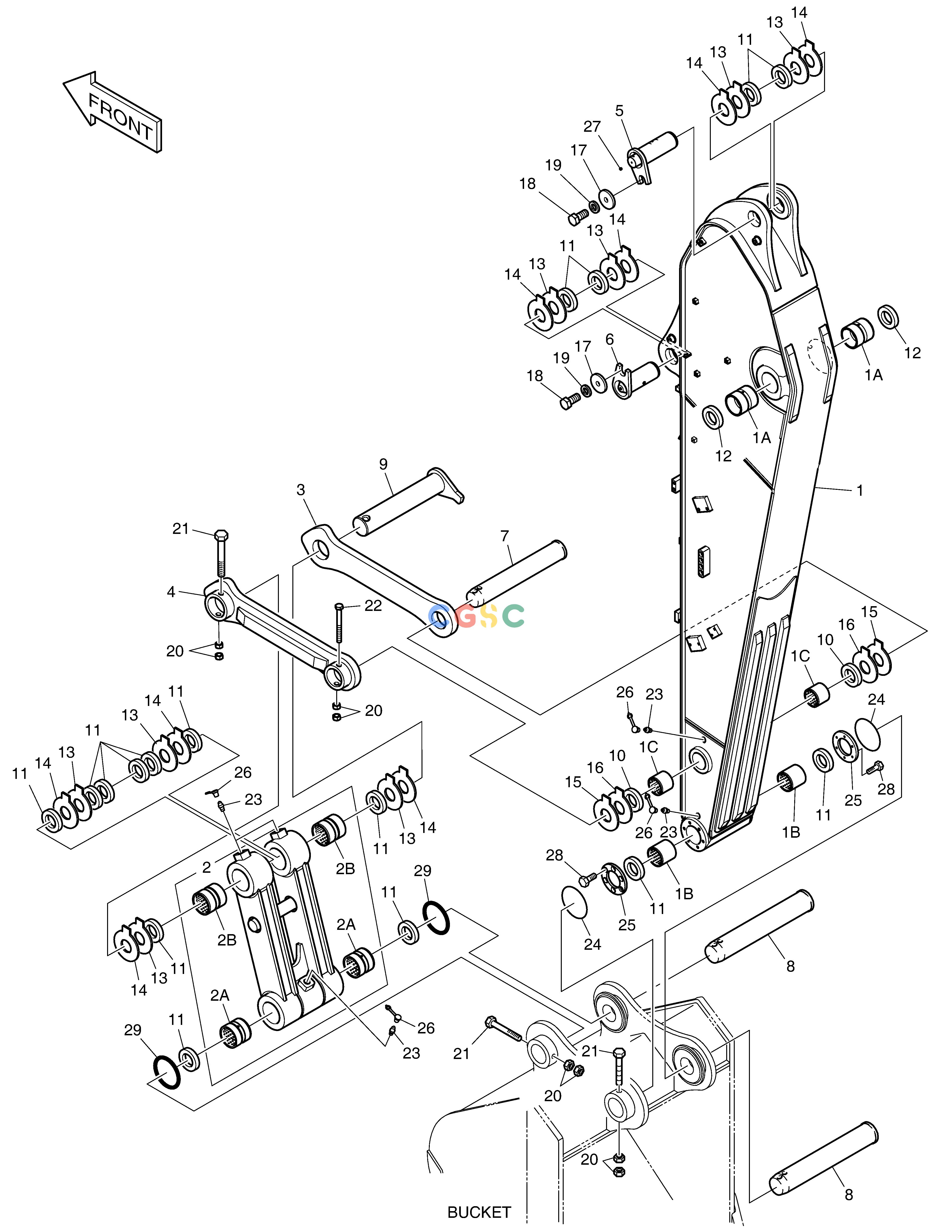

斗山零件查询ARM - 2.9m(HEAVY DUTY) DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
447 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
230201-00645
|
[-] |
|
|
| 1. |
230204-00283
|
[1] |
|
230204-00283A
|
| 1. |
230204-00283A
|
[1] |
|
230204-00283C
|
| 1. |
230204-00283C
|
[1] |
|
|
| 10. |
2180-1106BD4
|
[2] |
SEAL;DUST
|
|
| 11. |
2180-1106BD24
|
[14] |
SEAL;DUST
|
|
| 12. |
2180-1106BD6
|
[2] |
SEAL;DUST
|
|
| 13. |
DS7752012
|
[8] |
SHIM
|
|
| 14. |
DS7752013
|
[8] |
SHIM
|
|
| 15. |
DS7752006
|
[2] |
SHIM
|
|
| 16. |
DS7752007
|
[2] |
SHIM
|
|
| 17. |
2116-1060D6
|
[2] |
STOPPER
|
|
| 18. |
S0521366
|
[2] |
BOLT
|
|
| 19. |
S5102903
|
[2] |
WASHER
|
|
| 1A. |
131008-00064A
|
[2] |
|
|
| 1B. |
131004-00023A
|
[2] |
|
|
| 1C. |
131004-00024A
|
[2] |
|
|
| 2. |
101541-00114
|
[1] |
|
101541-00114A
|
| 2. |
101541-00114A
|
[1] |
|
|
| 2. |
101541-00114C
|
[1] |
|
|
| 20. |
S4012933
|
[8] |
NUT
|
|
| 21. |
DS0001084
|
[3] |
BOLT
|
|
| 22. |
DS0001083
|
[1] |
BOLT
|
|
| 23. |
S6710041
|
[5] |
NIPPLE,GREASE
|
|
| 24. |
180-00077D5
|
[2] |
O-RING
|
|
| 25. |
K1000911
|
[2] |
SPACER
|
|
| 26. |
160-00020
|
[5] |
CAP
|
|
| 27. |
2181-1116D1
|
[1] |
PLUG
|
|
| 28. |
S0712066
|
[12] |
BOLT
|
|
| 29. |
180-00077D3
|
[2] |
O-RING
|
|
| 2A. |
131004-00026A
|
[2] |
|
|
| 2B. |
131004-00025A
|
[2] |
|
|
| 3. |
101540-00055
|
[1] |
|
|
| 3. |
101540-00068
|
[1] |
|
|
| 4. |
K1010025A
|
[1] |
LINK;GUIDE(L.H)
|
|
| 4. |
101540-00070
|
[1] |
|
|
| 5. |
120501-01063
|
[1] |
|
|
| 6. |
120501-01064
|
[1] |
|
|
| 7. |
120501-01065
|
[1] |
|
|
| 8. |
120501-01052
|
[2] |
|
|
| 9. |
120501-02429
|
[1] |
|
|
| 9. |
120501-02911
|
[1] |
|
|
| 9. |
120501-02911A
|
[1] |
|
|
