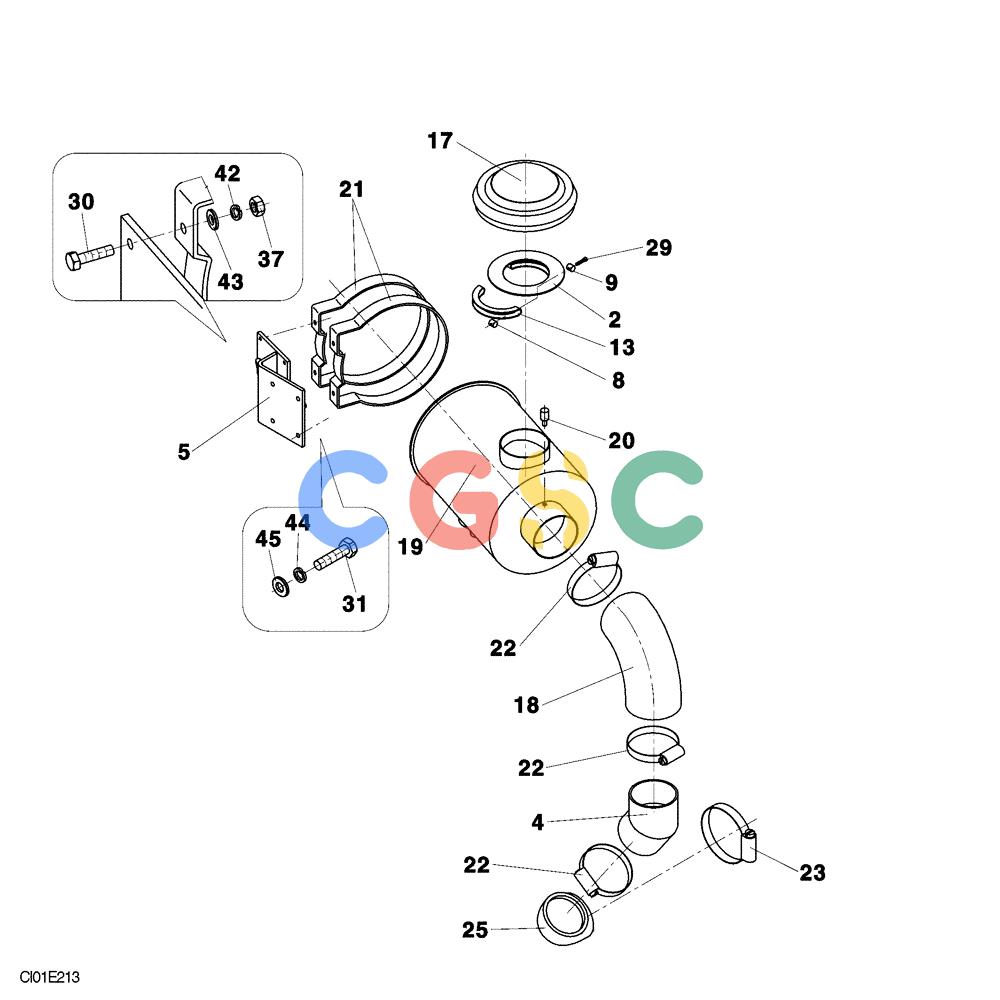

纽荷兰零件查询(CV900) - VIBRATORY ROLLER (9/01-) (02-006-00[01]) - AIR FILTRATION - ENGINE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
455 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | ND104347 | [1] | PLATE | STA |
| 4. | ND104403 | [1] | ELBOW | STA |
| 5. | ND104343 | [1] | SUPPORT | STA |
| 8. | ND046952 | [2] | NUT | STAM6 |
| 9. | ND046948 | [2] | WASHER | STA |
| 13. | ND104348 | [1] | HOSE CLAMP | STA |
| 17. | ND065538 | [1] | COVER | STA |
| 18. | ND065528 | [1] | HOSE | STA Superseded by part number: ND065525 |
| 19. | ND065526 | [1] | AIR CLEANER | STA |
| 20. | ND065534 | [1] | WARNING LIGHT | STA |
| 21. | ND065527 | [2] | CLAMP | STA |
| 22. | ND069503 | [3] | CLAMP | STA |
| 23. | ND069502 | [1] | CLAMP | STA Superseded by part number: ND069516 |
| 25. | ND065520 | [1] | HOSE | STA |
| 29. | ND024236 | [2] | BOLT | STAM6 x 40 |
| 30. | ND021295 | [4] | BOLT | STAM8 x 25 |
| 31. | ND021302 | [7] | BOLT | STAM10 x 25 |
| 37. | ND021848 | [7] | NUT | STAM8 Superseded by part number: ND034087 |
| 42. | ND035940 | [5] | SPRING WASHER | STAID 8 |
| 43. | ND029249 | [5] | WASHER | STAID 8,4 |
| 44. | ND035941 | [4] | WASHER | STAID 10 |
| 45. | ND029266 | [4] | WASHER | STAID 10 |
