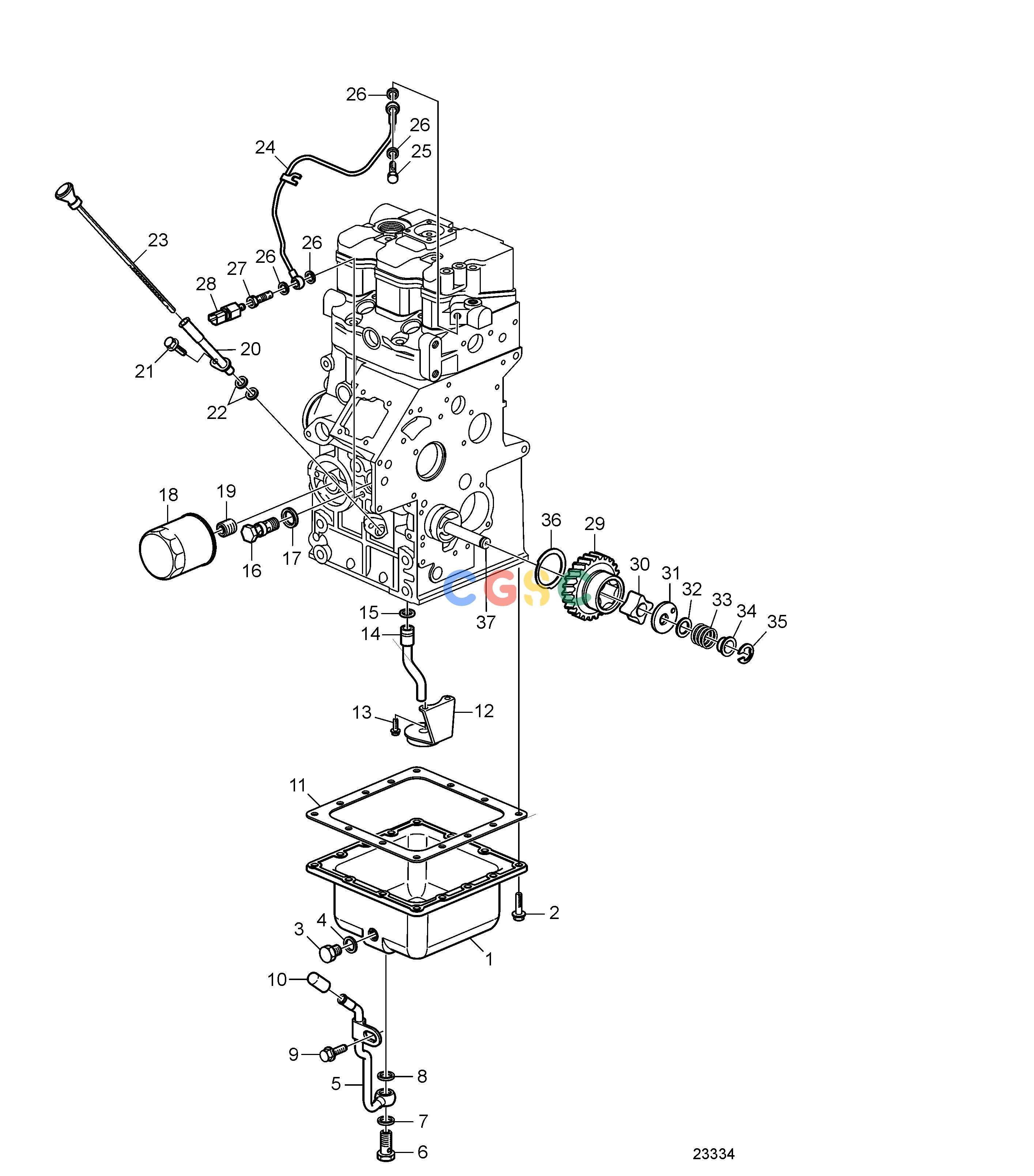

沃尔沃零件查询D1-13; D1-13B; D1-20; D1-20B; D1-30; D1-30B; D2-40; D2-40B; D1-13F; D1-20F; D1-30F; D2-40FLubricating SystemLubricating SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
741 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3808604
|
[1] |
Sump
|
|
| 2. |
945358
|
[14] |
Flange screw
|
|
| 3. |
3808606
|
[2] |
Plug
|
|
| 4. |
3808607
|
[2] |
Washer
|
|
| 5. |
3581779
|
[1] |
Oil pipe
|
|
| 6. |
3581928
|
[1] |
Hollow screw
|
|
| 7. |
3884542
|
[1] |
Sealing ring
|
|
| 8. |
3884543
|
[1] |
Sealing ring
|
|
| 9. |
947107
|
[1] |
Flange screw
|
|
| 10. |
1276516
|
[1] |
Rubber cap
|
|
| 11. |
861822
|
[1] |
Gasket
|
|
| 12. |
3886402
|
[1] |
Strainer
|
|
| 13. |
861526
|
[2] |
Screw
|
|
| 14. |
861998
|
[1] |
Suction pipe
|
|
| 15. |
861997
|
[1] |
O-ring
|
|
| 16. |
3583580
|
[1] |
Reduction valve
|
|
| 17. |
3583581
|
[1] |
O-ring
|
|
| 18. |
861473
|
[1] |
Oil filter
|
|
| 19. |
861825
|
[1] |
Bolt
|
|
| 20. |
3818050
|
[1] |
Dipstick tube
|
|
| 21. |
861526
|
[1] |
Screw
|
|
| 22. |
3886404
|
[2] |
O-ring
|
|
| 23. |
3812147
|
[1] |
Dipstick
|
|
| 24. |
3809626
|
[1] |
Oil pipe
|
|
| 25. |
861872
|
[1] |
Hollow screw
|
|
| 26. |
11992
|
[4] |
Gasket
|
|
| 27. |
3583575
|
[1] |
Hollow screw
|
|
| 28. |
3808796
|
[1] |
Pressure monitor
|
Replaced by 21250645
|
| 28. |
21250645
|
[1] |
Pressure switch
|
|
| 29. |
7746500_018
|
|
Gear
|
|
| 30. |
861989
|
[1] |
Rotor
|
Replaced by 21541017
|
| 30. |
21541017
|
[1] |
Oil pump
|
|
| 31. |
861527
|
[1] |
Cap
|
|
| 32. |
861528
|
[1] |
Shim
|
T=0.10mm
|
| 32. |
861529
|
[1] |
Shim
|
T=0.15mm
|
| 32. |
861530
|
[1] |
Shim
|
T=0.20mm
|
| 32. |
861531
|
[1] |
Shim
|
T=0.50mm
|
| 33. |
861532
|
[1] |
Spring
|
|
| 34. |
861533
|
[1] |
Sleeve
|
|
| 35. |
861534
|
[1] |
Lock ring
|
|
| 36. |
7746500_018
|
|
Thrust washer
|
|
| 37. |
7746500_004
|
|
Shaft
|
|
