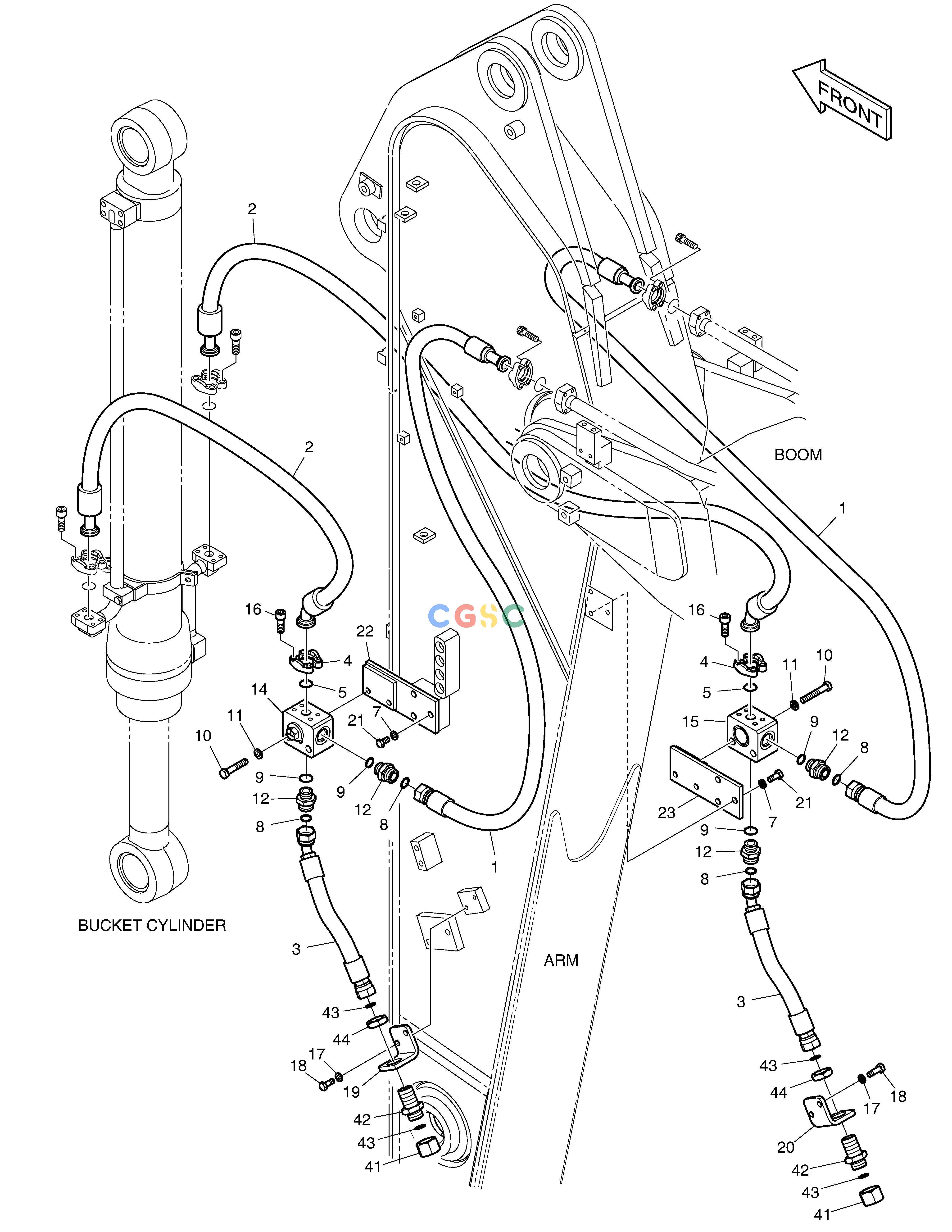

斗山零件查询ARM PIPING - ARM 2.4m(CLAMSHELL) DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
666 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-10093
|
[-] |
|
|
| -. |
K1013436B
|
[-] |
ARM PIPING-CLAMSHELL
|
|
| 1. |
DS2016300
|
[2] |
|
|
| 1. |
DS2016074
|
[2] |
HOSE
|
DS2016300
|
| 10. |
S0563466
|
[4] |
BOLT
|
|
| 11. |
120804-00080
|
[4] |
WASHER
|
|
| 12. |
2181-4133D5
|
[4] |
. ADAPTER
|
|
| 14. |
K1002939
|
[1] |
VALVE;SWITCH(L.H)
|
|
| 15. |
K1002940
|
[1] |
VALVE;SWITCH(R.H)
|
|
| 16. |
S2212066
|
[8] |
BOLT
|
|
| 17. |
S5102603
|
[4] |
. WASHER
|
|
| 18. |
S0512066
|
[4] |
. BOLT
|
|
| 19. |
K1014759
|
[1] |
BRACKET
|
|
| 2. |
DS2039122
|
[2] |
HOSE
|
|
| 20. |
K1015093
|
[1] |
BRACKET
|
|
| 21. |
S0515066
|
[6] |
BOLT
|
|
| 22. |
K1025286
|
[1] |
BRACKET(L.H)
|
|
| 23. |
K1025336
|
[1] |
BRACKET(R.H)
|
|
| 3. |
DS2012342
|
[2] |
HOSE
|
|
| 4. |
2181-9079
|
[4] |
FLANGE
|
|
| 41. |
2181-2817D1
|
[2] |
. CAP
|
|
| 42. |
DS2415007
|
[2] |
ADAPTER
|
|
| 43. |
S8030121
|
[4] |
O-RING
|
|
| 44. |
121-00010D8
|
[2] |
NUT
|
|
| 5. |
2180-1026D2
|
[2] |
O-RING
|
|
| 7. |
S5102703
|
[6] |
WASHER
|
|
| 8. |
S8030121
|
[4] |
O-RING
|
|
| 9. |
S8000231
|
[4] |
O-RING
|
|
