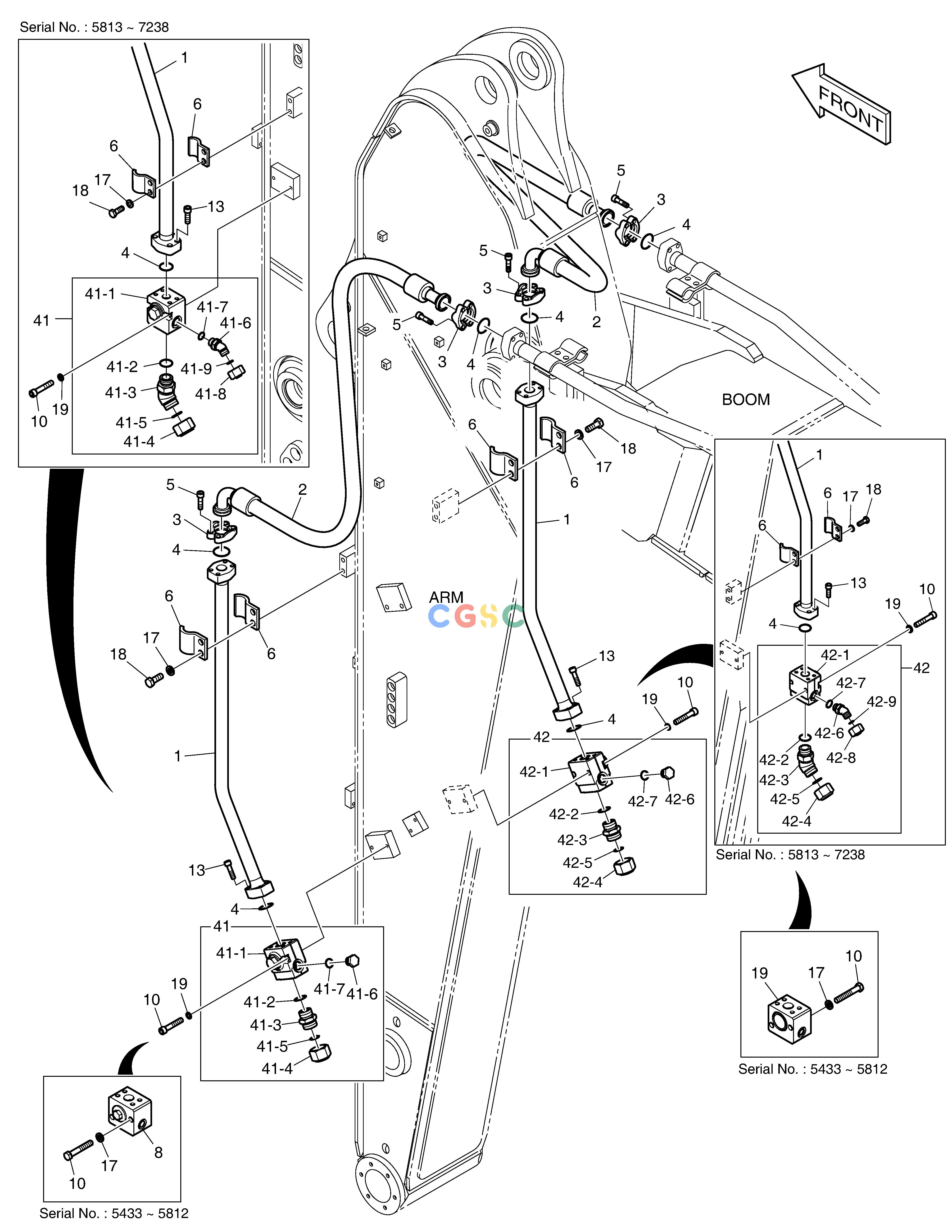

斗山零件查询ARM PIPING - ARM 2.9m(ONE & TWO WAY) DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
573 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1041907
|
[-] |
ARM PIPING-ONE & TWO WAY
|
|
| -. |
420212-01713
|
[-] |
|
|
| -. |
420212-08011
|
[-] |
|
|
| 1. |
K1000886A
|
[2] |
PIPE
|
|
| 1. |
420207-00514A
|
[2] |
|
420207-00514B
|
| 1. |
420207-00514B
|
[2] |
|
|
| 10. |
S0563666
|
[4] |
BOLT
|
|
| 10. |
S2215966
|
[4] |
BOLT;SOCKET
|
|
| 13. |
S2212366
|
[8] |
BOLT
|
|
| 13. |
S2212466
|
[8] |
BOLT
|
|
| 17. |
120804-00080
|
[12] |
WASHER
|
|
| 17. |
120804-00080
|
[8] |
WASHER
|
|
| 17. |
120804-00080
|
[4] |
WASHER
|
|
| 18. |
S0562766
|
[8] |
BOLT
|
|
| 18. |
S0562766
|
[4] |
BOLT
|
|
| 19. |
K1000338A
|
[1] |
VALVE;STOP(R.H)
|
|
| 19. |
S5110703
|
[4] |
WASHER
|
|
| 2. |
2184-1100D78
|
[2] |
HOSE
|
|
| 2. |
DS20401232
|
[2] |
|
|
| 3. |
2181-9078
|
[8] |
FLANGE;SPLIT
|
|
| 4. |
2180-1026D19
|
[6] |
O-RING
|
|
| 41. |
410137-00030A
|
[1] |
|
|
| 41. |
410137-00032B
|
[1] |
|
410137-00032C
|
| 41. |
410137-00032C
|
[1] |
|
410137-00032E
|
| 41. |
410137-00032E
|
[1] |
|
410137-00032H
|
| 41. |
410137-00032H
|
[1] |
|
|
| 41-1. |
410137-00067
|
[1] |
|
|
| 41-1. |
410137-00067A
|
[1] |
|
410137-00067B
|
| 41-1. |
410137-00067B
|
[1] |
|
|
| 41-2. |
S8000291
|
[1] |
O-RING
|
|
| 41-3. |
2181-2816D2
|
[1] |
ELBOW
|
|
| 41-3. |
2181-4133D6
|
[1] |
ADAPTER
|
DS2232004
|
| 41-3. |
DS2232004
|
[1] |
ADAPTER
|
|
| 41-4. |
2181-2817D2
|
[1] |
CAP
|
DS2916002
|
| 41-4. |
DS2916002
|
[1] |
|
|
| 41-5. |
S8030161
|
[1] |
O-RING
|
|
| 41-6. |
2181-2816D4
|
[1] |
ELBOW
|
|
| 41-6. |
2181-1950D7
|
[1] |
. PLUG
|
DS2901008
|
| 41-6. |
DS2901008
|
[1] |
. PLUG
|
|
| 41-7. |
S8000181
|
[1] |
O-RING
|
|
| 41-8. |
2181-2817D4
|
[1] |
CAP
|
|
| 41-9. |
S8030081
|
[1] |
O-RING
|
|
| 42. |
410137-00031A
|
[1] |
|
|
| 42. |
410137-00033B
|
[1] |
|
410137-00033C
|
| 42. |
410137-00033C
|
[1] |
|
410137-00033E
|
| 42. |
410137-00033E
|
[1] |
|
410137-00033H
|
| 42. |
410137-00033H
|
[1] |
|
|
| 42-1. |
410137-00069
|
[1] |
|
|
| 42-1. |
410137-00069A
|
[1] |
|
410137-00069B
|
| 42-1. |
410137-00069B
|
[1] |
|
|
| 42-2. |
S8000291
|
[1] |
O-RING
|
|
| 42-3. |
2181-2816D2
|
[1] |
ELBOW
|
|
| 42-3. |
2181-4133D6
|
[1] |
ADAPTER
|
DS2232004
|
| 42-3. |
DS2232004
|
[1] |
ADAPTER
|
|
| 42-4. |
2181-2817D2
|
[1] |
CAP
|
DS2916002
|
| 42-4. |
DS2916002
|
[1] |
|
|
| 42-5. |
S8030161
|
[1] |
O-RING
|
|
| 42-6. |
2181-2816D4
|
[1] |
ELBOW
|
|
| 42-6. |
2181-1950D7
|
[1] |
. PLUG
|
DS2901008
|
| 42-6. |
DS2901008
|
[1] |
. PLUG
|
|
| 42-7. |
S8000181
|
[1] |
O-RING
|
|
| 42-8. |
2181-2817D4
|
[1] |
CAP
|
|
| 42-9. |
S8030081
|
[1] |
O-RING
|
|
| 5. |
S2212466
|
[16] |
BOLT
|
|
| 6. |
K1004057
|
[8] |
CLAMP;PIPE
|
|
| 6. |
K1004057
|
[4] |
CLAMP;PIPE
|
|
| 8. |
K1000334A
|
[1] |
VALVE;STOP(L.H)
|
|
