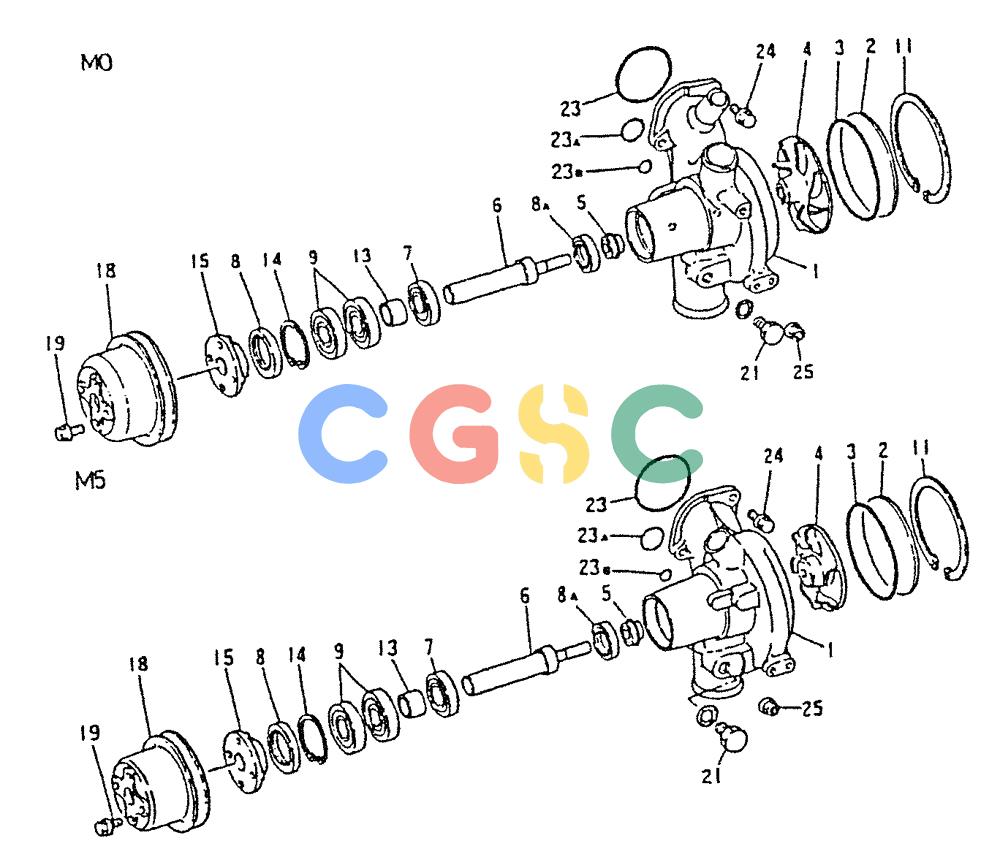

神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (02-001) - WATER PUMP Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
742 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-15. | VAME055416 | [1] | WATER PUMP | KOBM0 ONLY Superseded by part number: VAME157543 |
| . . | VAME157144 | [1] | WATER PUMP ASSY M5 ONLY | WATER PUMP ASSY M5 ONLY |
| 1. | VAME157053 | [1] | CASE | KOBCASE ASSY, M0 ONLY |
| . . | VAME157060 | [1] | CASE ASSY. | KOBM5 ONLY |
| 2. | VAME055147 | [1] | COVER | KOBPUMP, M0 ONLY |
| . . | VAME059351 | [1] | COVER | SMM5 ONLY |
| 3-9. | VAME997002 | [1] | WATER PUMP | KOBREPAIR KIT, M0 ONLY, INC THE KN23-23B, FOR SERVICE ONLY Superseded by part number: 360407A1, 77270305 |
| . . | VAME997043 | [1] | WATER PUMP | KOBM5 ONLY, INC THE KN23-23B, FOR SERVICE ONLY Superseded by part number: 346875A1 |
| 3. | VAMH035620 | [1] | O-RING | KOBO-RING 125, M0 ONLY Superseded by part number: 134761A1 |
| . . | VAMH035621 | [1] | O-RING | KOBO-RING 135, M5 ONLY |
| 4. | VAME055398 | [1] | IMPELLER | KOBM0 ONLY |
| . . | VAME157062 | [1] | IMPELLER | SMM5 ONLY |
| 5. | VAME055397 | [1] | SEAL UNIT | SEAL UNIT |
| 6. | VAME055393 | [1] | SHAFT | KOBWATER PUMP |
| 7. | VAMS556005 | [1] | BEARING | KOBBEARING, BALL 6205 Superseded by part number: 84330084 |
| 8. | VAME055394 | [1] | OIL SEAL | OIL SEAL |
| 8a. | VAME055395 | [1] | OIL SEAL | KOB Superseded by part number: 134753A1 |
| 9. | VAMS556125 | [2] | BEARING | KOBBEARIN, BALL 6305 Superseded by part number: 20996680 |
| 11. | VAME055149 | [1] | SNAP RING | KOBM0 ONLY Superseded by part number: 134769A1 |
| . . | VAME059352 | [1] | SNAP RING | KOBM5 ONLY |
| 13. | VAME055396 | [1] | SPACER | SM |
| 14. | VAMF522236 | [1] | SNAP RING | KOBRING, SNAP 62 |
| 15. | VAME055392 | [1] | FLANGE | KOB Superseded by part number: 134744A1 |
| 18. | VAME050652 | [1] | PULLEY | KOBWATER PUMP, D126 8X1, M0 ONLY Superseded by part number: 134748A1 |
| . . | VAME050655 | [1] | PULLEY | KOBPUMP, D140 8X1, M5 ONLY Superseded by part number: 134546A1 |
| 19. | VAMH000713 | [4] | BOLT | KOBBOLT, FLANGE 10X20 |
| 21. | VAM0001300 | [1] | PLUG | KOBPLUG, DRAIN 16 |
| . . | VAMF660066 | [1] | GASKET | KOBGASKET 16 Superseded by part number: VAF420216000 |
| 23. | VAMF520411 | [1] | O-RING | KOBO-RING 75 |
| 23A. | VAMH035221 | [1] | O-RING | KOBO-RING 29 |
| 23B. | VAMH035092 | [1] | O-RING | KOBO-RING 14 Superseded by part number: VA0550700140 |
| 24. | VAMH000714 | [2] | BOLT | KOBBOLT, FLANGE 10X25 |
| 25. | VAMF434105 | [2] | NUT | KOBNUT, FLANGE 10 |
