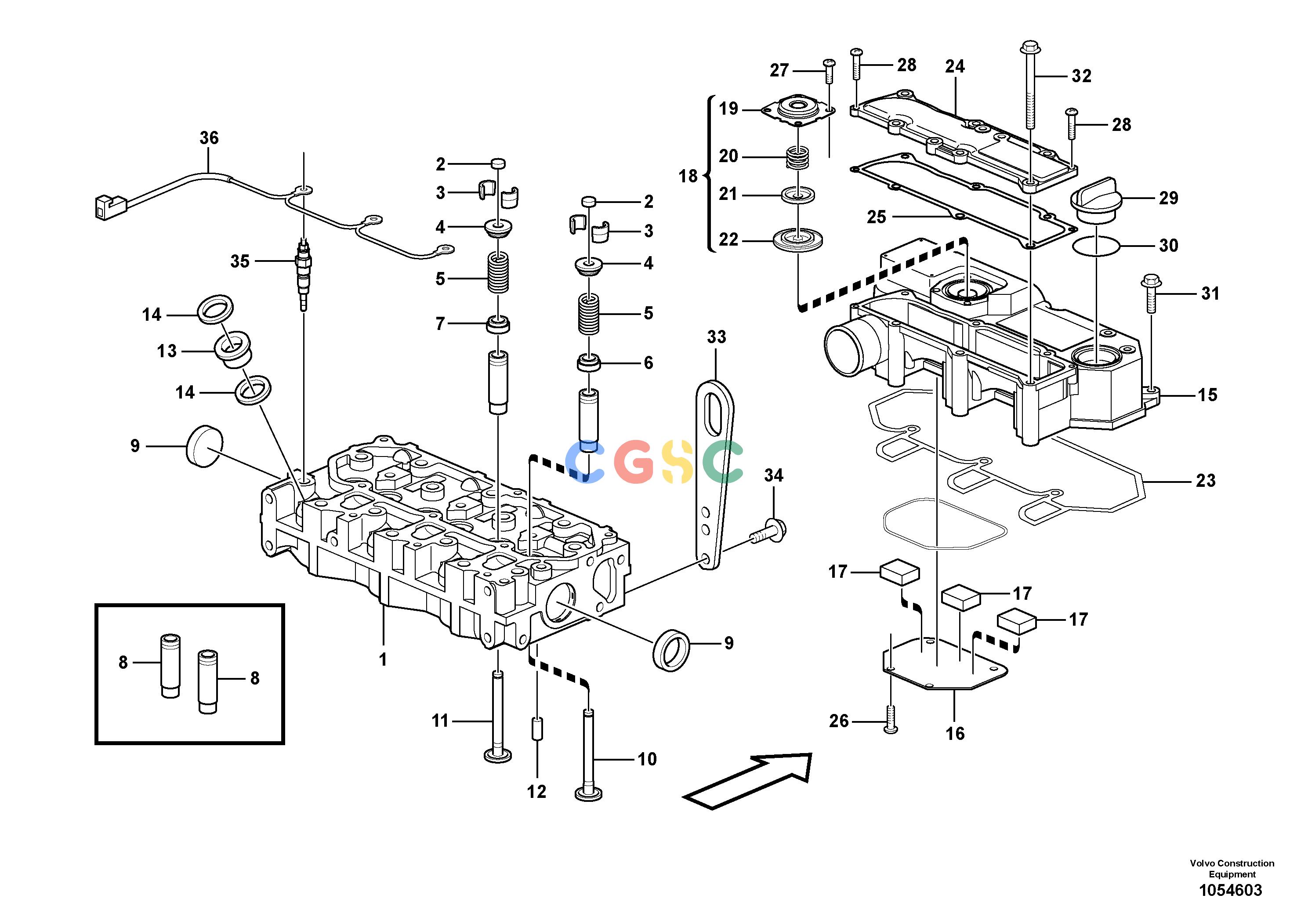

沃尔沃零件查询EC15C Cylinder headS/N 1533-2261 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
860 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11713377
|
[1] |
Cylinder head
|
|
| 2. |
VOE11713536
|
[6] |
Cap
|
|
| 3. |
VOE11713537
|
[12] |
Valve sleeve
|
|
| 4. |
VOE11714291
|
[6] |
Spring guide
|
|
| 5. |
VOE15161482
|
[6] |
Spring
|
|
| 6. |
VOE11713306
|
[3] |
Seal
|
|
| 7. |
VOE11713308
|
[3] |
Seal
|
|
| 8. |
VOE11714287
|
[6] |
Guide
|
|
| 9. |
VOE15161478
|
[2] |
Plug
|
|
| 10. |
VOE15161480
|
[3] |
Inlet valve
|
|
| 11. |
VOE11713535
|
[3] |
Valve
|
|
| 12. |
VOE11714387
|
[2] |
Spring pin
|
|
| 13. |
VOE11713307
|
[3] |
Protection
|
|
| 14. |
VOE11713311
|
[6] |
Gasket
|
|
| 15. |
VOE11713382
|
[1] |
Valve cover
|
|
| 16. |
VOE11713403
|
[1] |
Plate
|
|
| 17. |
VOE11713404
|
[3] |
Baffle
|
|
| 18. |
VOE11713383
|
[1] |
Diaphragm housing
|
|
| 19. |
VOE11714718
|
[1] |
Cover
|
|
| 20. |
VOE11714719
|
[1] |
Spring
|
|
| 21. |
VOE11713659
|
[1] |
Plate
|
|
| 22. |
VOE15161486
|
[1] |
Diagram
|
|
| 23. |
VOE11713296
|
[1] |
Gasket
|
|
| 24. |
VOE11713402
|
[1] |
Cover
|
|
| 25. |
VOE11713299
|
[1] |
Gasket
|
|
| 26. |
VOE11714720
|
[4] |
Screw
|
|
| 27. |
VOE11714720
|
[4] |
Screw
|
|
| 28. |
VOE11713405
|
[2] |
Screw
|
|
| 29. |
VOE11714383
|
[1] |
Cap
|
|
| 30. |
VOE11714371
|
[1] |
O-ring
|
|
| 31. |
VOE14521577
|
[3] |
Bolt
|
|
| 32. |
VOE11713385
|
[6] |
Bolt
|
|
| 33. |
VOE11714378
|
[1] |
Lifting bracket
|
|
| 34. |
VOE11714372
|
[2] |
Bolt
|
|
| 35. |
VOE11713391
|
[3] |
Glow plug
|
|
| 36. |
VOE11713392
|
[1] |
Connector
|
|
