斗山零件查询ARM PIPING - ARM 6.2m DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
809 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08378
|
[-] |
|
|
| -. |
K1046335A
|
[-] |

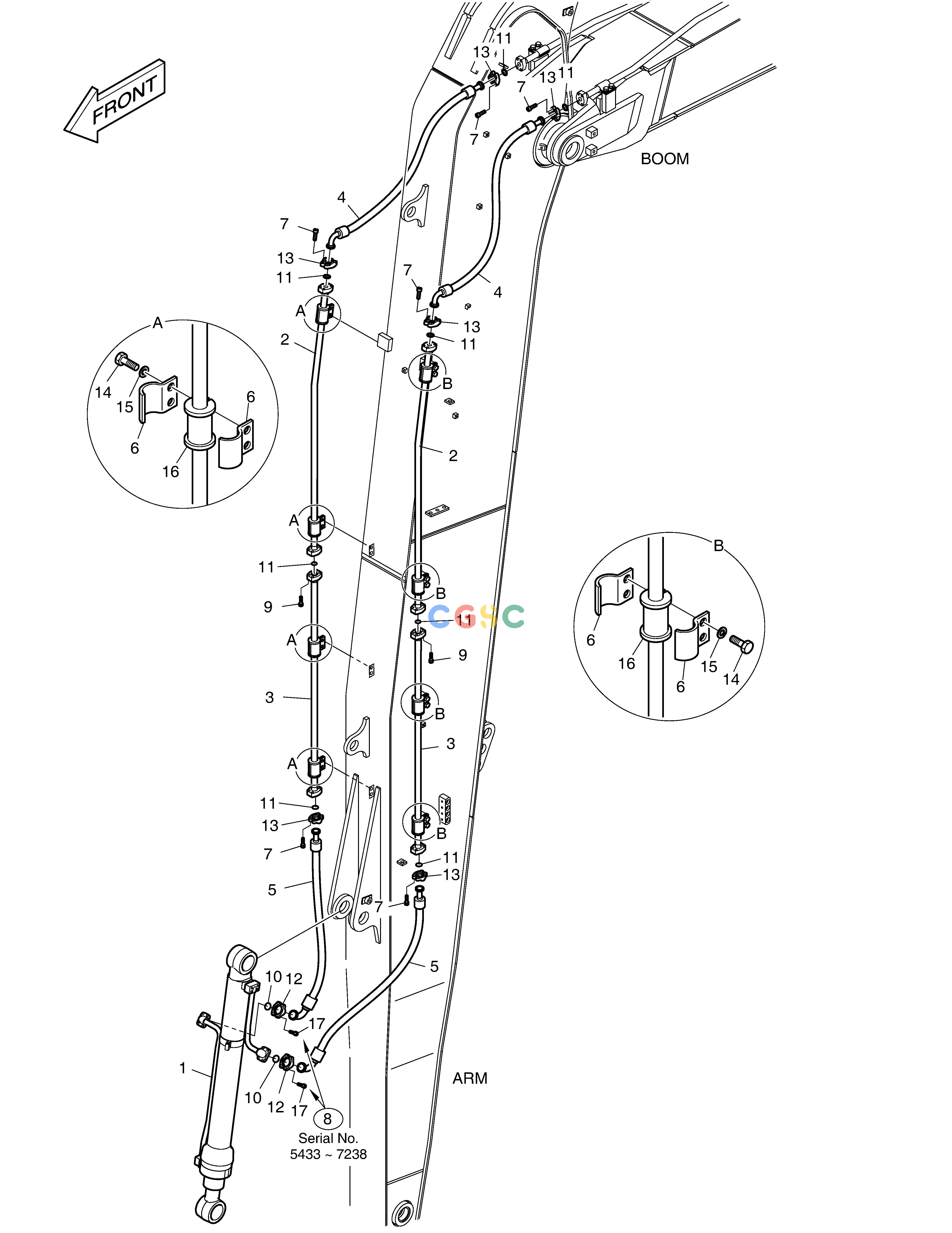

ARM PIPING (ARM 6.2m)
|
|
| 1. |
400310-00332
|
[1] |
|
400310-00332A
|
| 1. |
400310-00332A
|
[1] |
|
|
| 1. |
400310-00332B
|
[1] |
|
|
| 1. |
K1011434A
|
[1] |
BUCKET CYLINDER
|
400310-00332
|
| 10. |
2180-1026D19
|
[2] |
O-RING
|
|
| 11. |
2180-1026D2
|
[8] |
O-RING
|
|
| 12. |
2181-9078
|
[4] |
FLANGE;SPLIT
|
|
| 13. |
2181-9079
|
[12] |
FLANGE
|
|
| 14. |
S0562766
|
[16] |
BOLT
|
|
| 15. |
120804-00080
|
[16] |
WASHER
|
|
| 16. |
161-00574
|
[8] |
RUBBER
|
180308-00411
|
| 16. |
180308-00411
|
[8] |
|
|
| 17. |
S2212266
|
[8] |
BOLT
|
|
| 2. |
K1018712
|
[2] |
PIPE
|
|
| 3. |
K1018713
|
[2] |
PIPE
|
|
| 4. |
DS2040543
|
[2] |
HOSE
|
|
| 5. |
DS2040544
|
[2] |
HOSE
|
|
| 6. |
124-00302
|
[16] |
CLAMP;PIPE
|
|
| 7. |
S2212366
|
[24] |
BOLT
|
|
| 8. |
S2212466
|
[8] |
BOLT
|
|
| 9. |
S2212566
|
[8] |
BOLT
|
|
