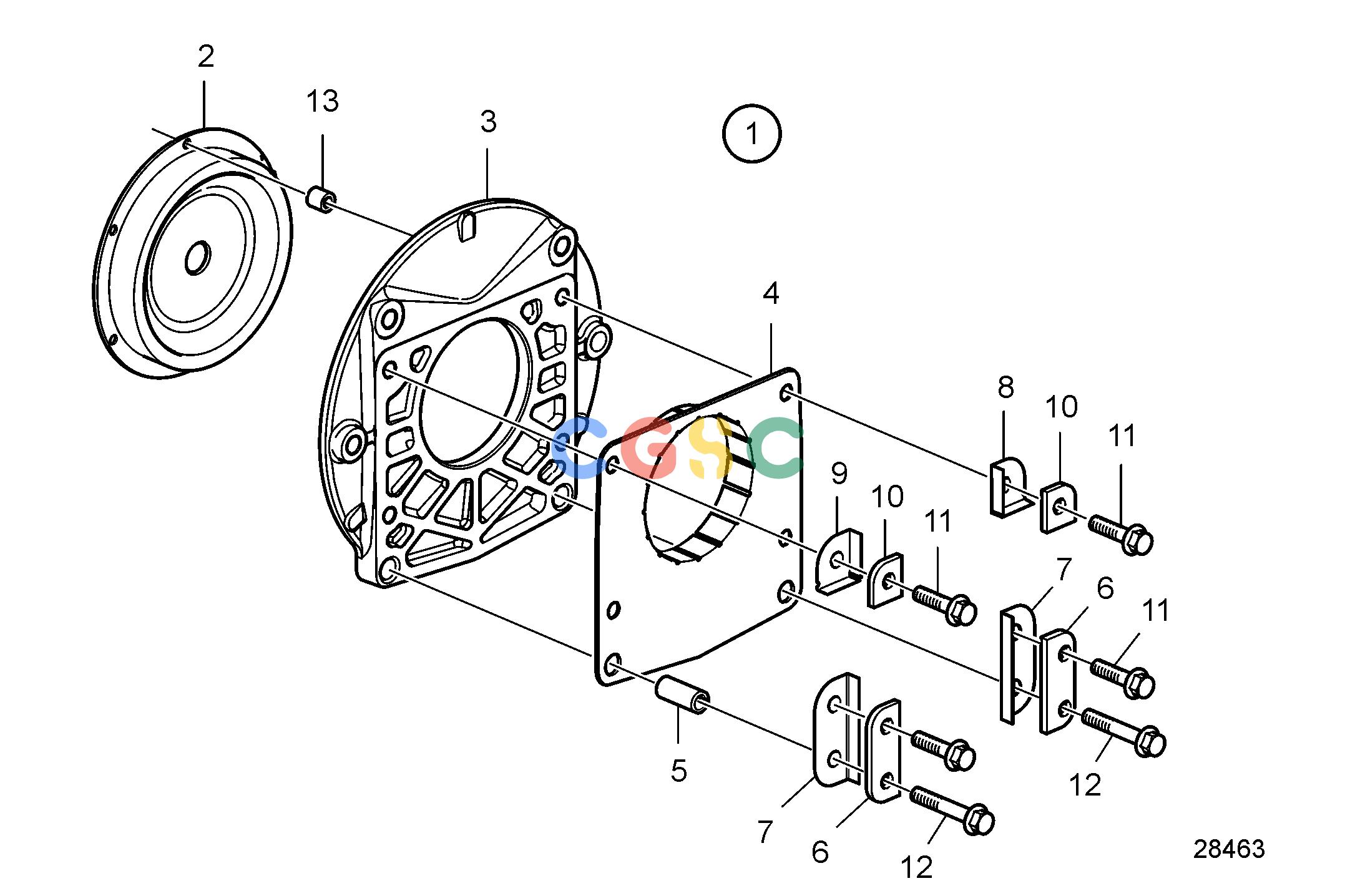

沃尔沃零件查询D1-13; D1-13B; D1-20; D1-20B; D1-30; D1-30B; D2-40; D2-40B; D1-13F; D1-20F; D1-30F; D2-40FMiscellaneous EquipmentRepowering Kit, to connect 120S to D1-13/20/30 and D2-40EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
415 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22567193
|
[1] |
Engine bracket kit
|
|
| 2. |
872809
|
[1] |
Vibration damper
|
|
| 3. |
3583355
|
[1] |
Flange
|
|
| 4. |
3583356
|
[1] |
Insulating plate
|
|
| 5. |
3583361
|
[1] |
Insulating bushing
|
|
| 6. |
3583539
|
[2] |
Plate
|
|
| 7. |
3583359
|
[2] |
Insulating washer
|
|
| 8. |
3583357
|
[1] |
Insulating washer
|
|
| 9. |
3583358
|
[1] |
Insulating washer
|
|
| 10. |
3583360
|
[2] |
Washer
|
|
| 11. |
984755
|
[4] |
Flange screw
|
|
| 12. |
984757
|
[2] |
Flange screw
|
|
| 13. |
3830336
|
[6] |
Spacer
|
|
