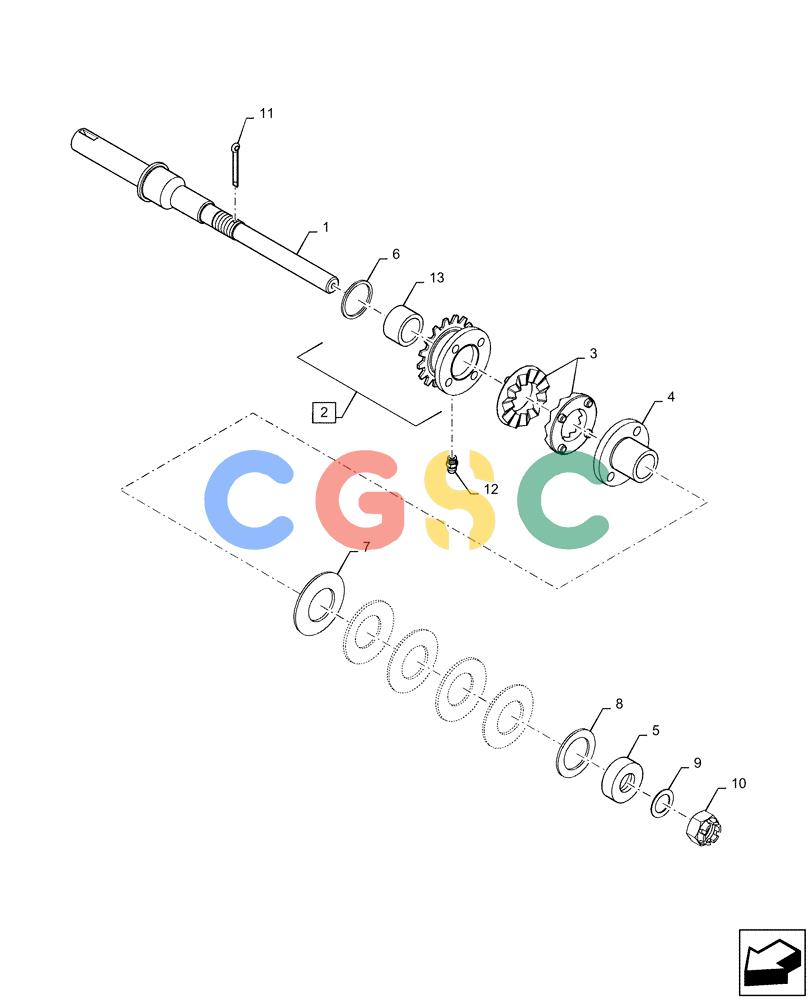

凯斯零件查询(RB455) - CASE IH ROUND BALER - NORTH AMERICA (1/14-12/15) (60.220.AN[01]) - VAR - 726916 - JAW CLUTCH Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
1013 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87718115
|
[1] |
SHAFT
|
NH
|
| 2. |
87047934
|
[1] |
SPROCKET
|
PA
17T Sprocket, Incl 13
|
| 3. |
714379
|
[2] |
CLUTCH
|
NH
Jaw Superseded by part number: 87639816
|
| 4. |
9822927
|
[1] |
HUB
|
PA
Superseded by part number: 86637169
|
| 5. |
84266202
|
[1] |
RING,Backing, 30.2mm ID x 63.5mm OD x 20mm W
|
NH
|
| 6. |
87700674
|
[1] |
WASHER,51.1mm ID x 60.26mm OD x 3.04mm Thk
|
NH
|
| 7. |
9822385
|
[5] |
BELLEVILLE WASHER,52mm ID x 100mm OD x 3.3mm Thk
|
NH
Spring
|
| 8. |
166490
|
[1] |
WASHER,51.6mm ID x 76.2mm OD x 3.68mm Thk
|
NH
Hardened, 2"
|
| 9. |
26558
|
[1] |
WASHER,28.5mm ID x 45.2mm OD x 1.7mm Thk
|
NH
|
| 10. |
280215
|
[1] |
SLOTTED NUT,1 1/8"-12, G5
|
NH
|
| 11. |
87399
|
[1] |
COTTER PIN,1/2 x 3 Bolt
|
GI
|
| 12. |
88775
|
[1] |
LUBE NIPPLE,1/4"-28
|
NH
Short
|
| 13. |
46962
|
[1] |
BUSHING,2" ID x 2.13" OD x 1.25" L
|
NH
|
