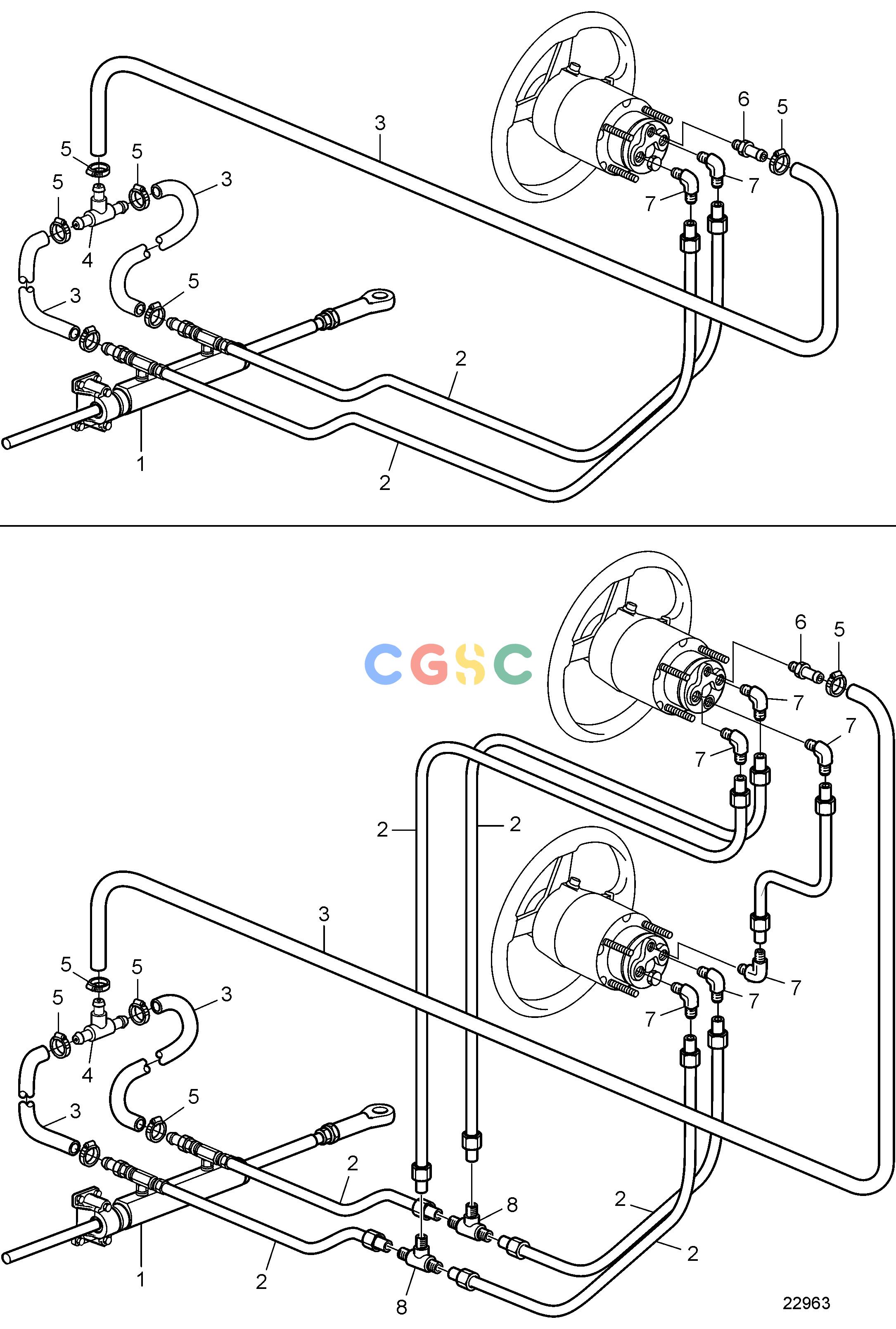

沃尔沃零件查询D1-13; D1-13B; D1-20; D1-20B; D1-30; D1-30B; D2-40; D2-40B; D1-13F; D1-20F; D1-30F; D2-40FSteering SystemSteering System, Hydraulic, Single and Dual InstallationEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
490 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3809981
|
[1] |
Cylinder piston
|
|
| 1. |
3809982
|
[1] |
Cylinder
|
168cc
|
| 1. |
3809983
|
[1] |
Cylinder piston
|
215cc
|
| 2. |
1140584
|
[1] |
Pipe
|
|
| 3. |
192618
|
[1] |
Hose
|
|
| 4. |
|
|
|
Included in kit 3843251.
|
| 5. |
|
|
|
Included in kit 3843251.
|
| 6. |
|
|
|
Included in kit 3843251.
|
| 7. |
|
|
|
Included in kit 3843217.
|
| 8. |
|
|
|
Included in kit 1140583.
|
