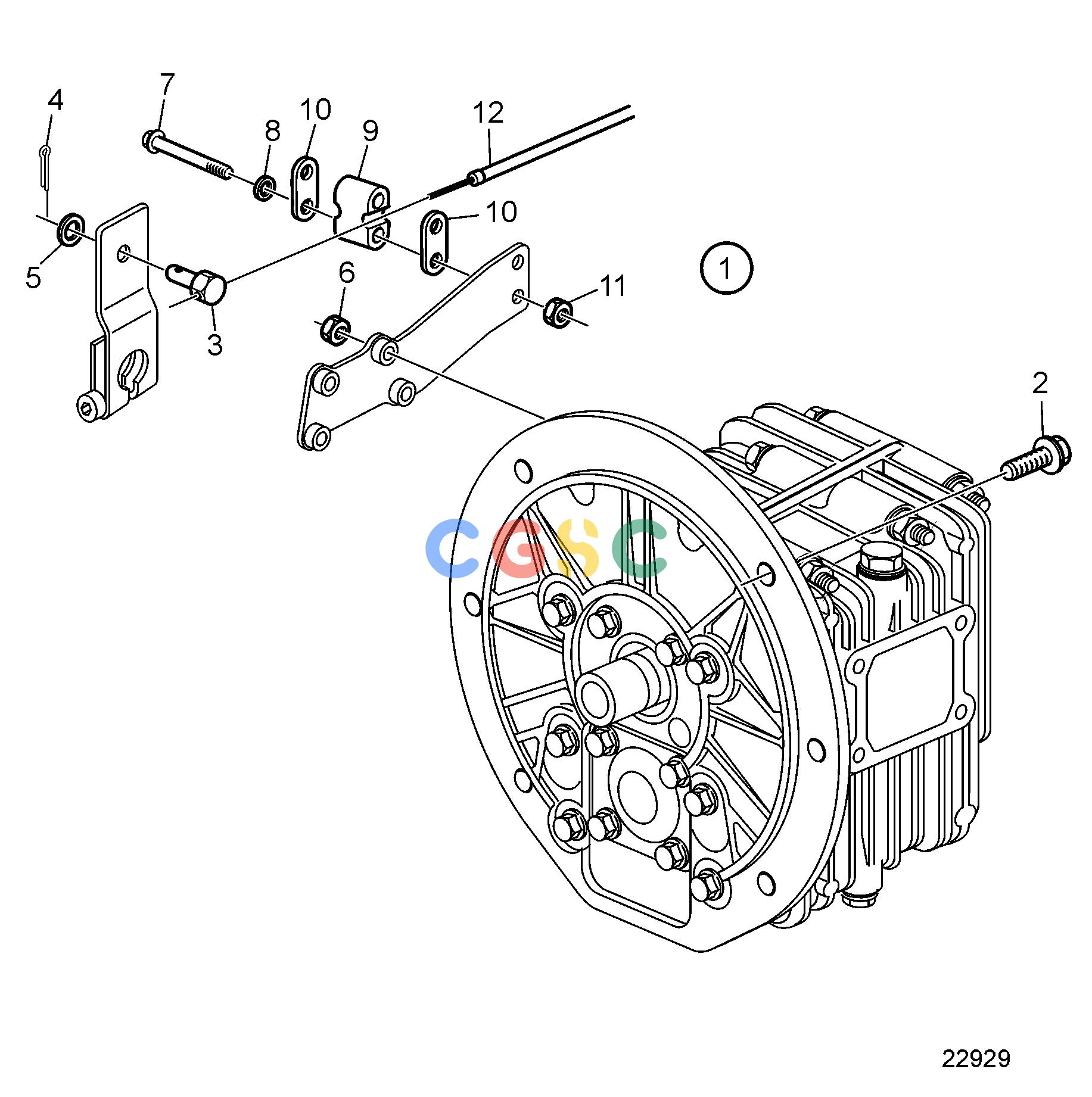

沃尔沃零件查询D1-13; D1-13B; D1-20; D1-20B; D1-30; D1-30B; D2-40; D2-40B; D1-13F; D1-20F; D1-30F; D2-40FTransmissionsConnection Kit for Reverse Gear, MS10A-B, MS10L-BEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
645 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3809120
|
[1] |
Reversing gear kit
|
MS10A-B, ratio 2.35:1
|
| 1. |
3809121
|
[1] |
Reversing gear kit
|
MS10A-B, ratio 2.72:1
|
| 1. |
3809122
|
[1] |
Reversing gear kit
|
MS10L-B, ratio 2.35:1
|
| 1. |
3809123
|
[1] |
Reversing gear kit
|
MS10L-B, ratio 2.72:1
|
| 2. |
946329
|
[6] |
Flange screw
|
|
| 3. |
814082
|
[1] |
Cube
|
|
| 4. |
17276
|
[1] |
Split pin
|
|
| 5. |
941906
|
[1] |
Spring washer
|
|
| 6. |
945467
|
[4] |
Lock nut
|
|
| 7. |
969439
|
[2] |
Six point socket scr
|
|
| 8. |
940090
|
[2] |
Washer
|
|
| 9. |
872076
|
[2] |
Washer
|
|
| 10. |
872074
|
[2] |
Retainer
|
|
| 11. |
949874
|
[2] |
Flange lock nut
|
|
| 12. |
7746500_112
|
|
shift cable
|
|
