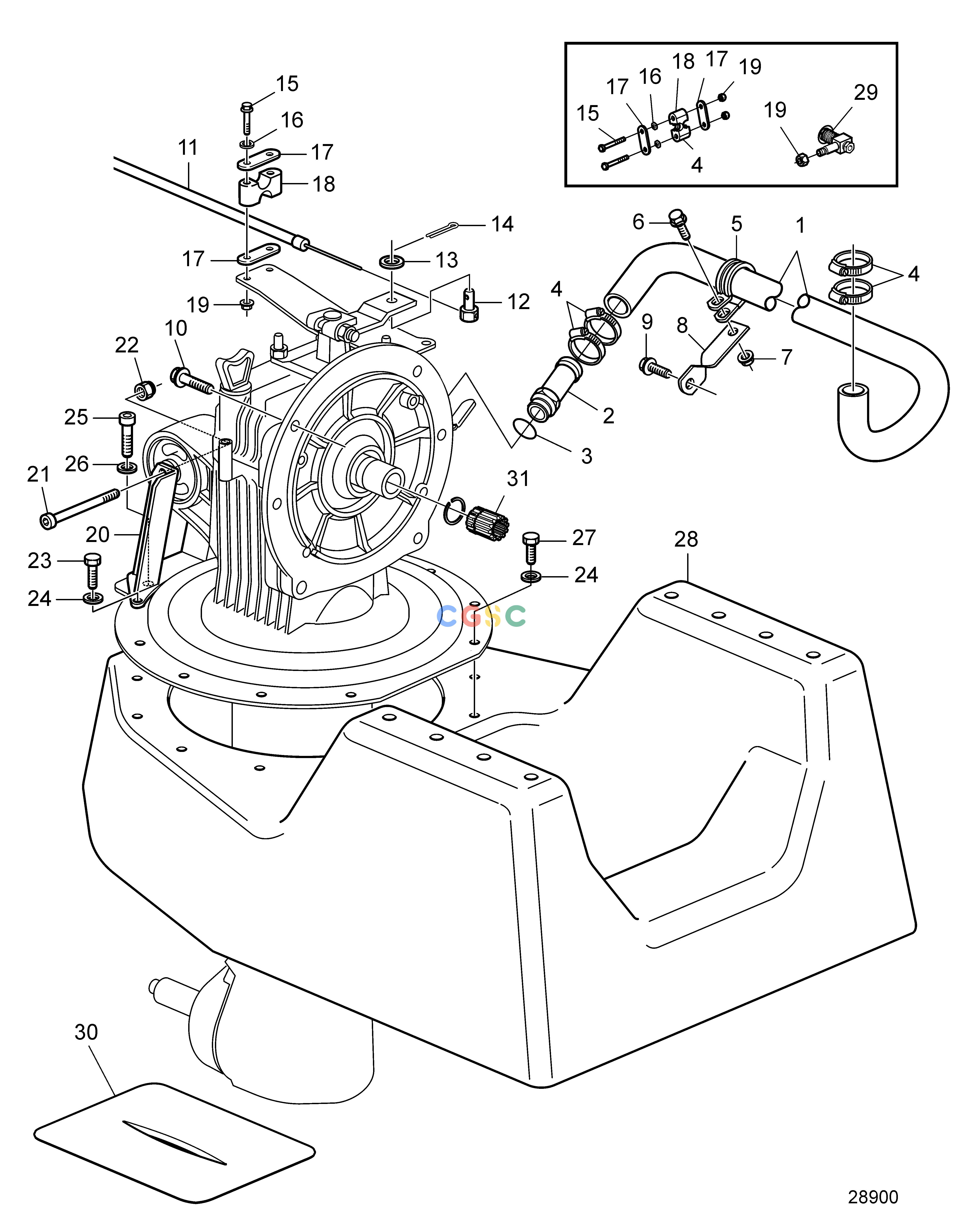

沃尔沃零件查询D1-13; D1-13B; D1-20; D1-20B; D1-30; D1-30B; D2-40; D2-40B; D1-13F; D1-20F; D1-30F; D2-40FTransmissionsConnection Kit for S-drive, 130S-C, 130SR-CEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
361 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22193004
|
[1] |
Hose
|
|
| 2. |
22847203
|
[1] |
Hose nipple
|
|
| 3. |
947630
|
[1] |
Gasket
|
|
| 4. |
961666
|
[4] |
Hose clamp
|
|
| 5. |
952637
|
[1] |
Clamp
|
|
| 6. |
984726
|
[1] |
Flange screw
|
|
| 7. |
990939
|
[1] |
Flange nut
|
|
| 8. |
354842
|
[1] |
Bracket
|
|
| 9. |
|
|
|
|
| 10. |
984754
|
[4] |
Flange screw
|
|
| 11. |
7746500_112
|
|
Control cable
|
|
| 12. |
22336734
|
[1] |
Cube
|
|
| 13. |
941906
|
[1] |
Spring washer
|
|
| 14. |
17276
|
[1] |
Split pin
|
|
| 15. |
969439
|
[2] |
Six point socket scr
|
|
| 16. |
940090
|
[2] |
Washer
|
|
| 17. |
872076
|
[2] |
Washer
|
|
| 18. |
872074
|
[1] |
Retainer
|
|
| 19. |
946577
|
[4] |
Lock nut
|
|
| 20. |
3841849
|
[1] |
Bracket
|
|
| 21. |
970983
|
[1] |
Hexagon screw
|
|
| 22. |
971084
|
[1] |
Lock nut
|
|
| 23. |
963568
|
[2] |
Hexagon screw
|
|
| 24. |
941670
|
[10] |
Washer
|
|
| 25. |
959240
|
[2] |
Hex. socket screw
|
|
| 26. |
853095
|
[2] |
Washer
|
|
| 27. |
946730
|
[8] |
Hexagon screw
|
|
| 28. |
3842284
|
[1] |
Engine bed
|
|
| 29. |
840692
|
[1] |
Cube
|
|
| 30. |
|
|
|
|
| 31. |
3843112
|
[1] |
Splined sleeve
|
|
