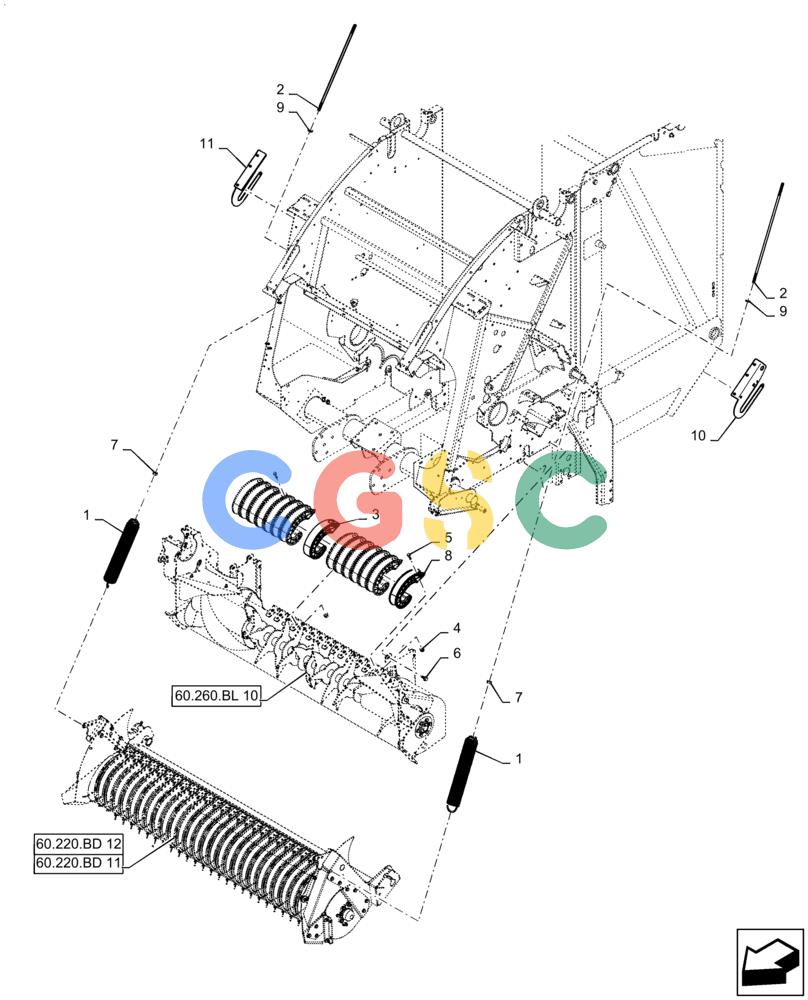

凯斯零件查询(RB455) - CASE IH ROUND BALER - NORTH AMERICA (1/14-12/15) (60.220.BD[05]) - VAR - 726805 - 1.8M PICKUP FLOATATION, OVERSHOT FEEDER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
225 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84490994
|
[2] |
SPRING
|
PLO
|
| 2. |
84490933
|
[2] |
BOLT
|
PLO
|
| 3. |
47535979
|
[1] |
STRIPPER
|
NH
|
| 4. |
86610201
|
[15] |
INSERT,M8
|
NH
|
| 5. |
86511842
|
[15] |
BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8
|
NH
|
| 6. |
9670066
|
[4] |
FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8
|
NH
|
| 7. |
9706685
|
[2] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 8. |
47535821
|
[14] |
STRIPPER
|
NH
|
| 9. |
65319
|
[2] |
WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk
|
NH
|
| 10. |
47595531
|
[1] |
BRACKET
|
PLO
LH
|
| 11. |
47595532
|
[1] |
BRACKET
|
PLO
RH
|
