神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (04-002) - STARTER GENERAL 050-110C Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
948 次

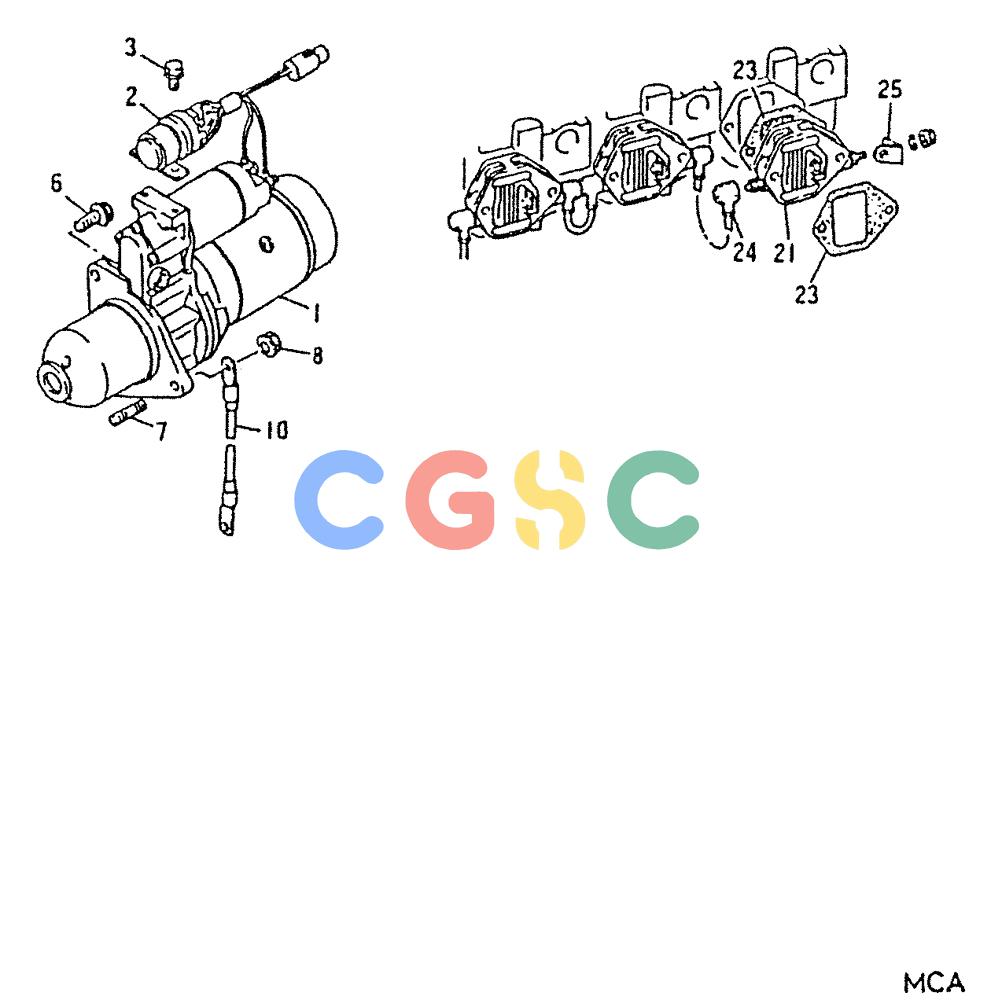

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VA3096603010 | [1] | STARTER MOTOR | KOBSTARTER ASSY, MEC 24V-6.0KW GN050, Serial Range: -GN111B |
| 2. | VAME050939 | [1] | RELAY | KOBRELAY,STARTER,MEC |
| 3. | VAMF140005 | [2] | BOLT | KOBBOLT, FLANGE 6X16 |
| 6. | VAMH000923 | [2] | BOLT | KOBBOLT, FLANGE 12X35 |
| 7. | VAMF407035 | [1] | STUD | KOBSTUD 12X35 |
| 8. | VAMF434106 | [1] | NUT | KOBNUT, FLANGE 12 Superseded by part number: 135085A1 |
| 10. | VA0304450401 | [1] | STRAP | KOB |
| 21. | VAME059715 | [6] | HEATER | KOBAIR ASSY |
| 23. | VA3093000501 | [6] | GASKET | KOBINLET MANIF Superseded by part number: 134855A1 |
| . . | VAME059760 | [6] | GASKET | KOBW/NET Superseded by part number: VAME353134 |
| 24. | VAME059716 | [5] | WIRE HARNESS | KOB Superseded by part number: 136087A1 |
| 25. | VAME059717 | [1] | STRAP | KOBPLATE, EARTH |
| . . | VAMF450006 | [1] | NUT | KOBWASHER, PLAIN 10 Superseded by part number: 133247A1 |
