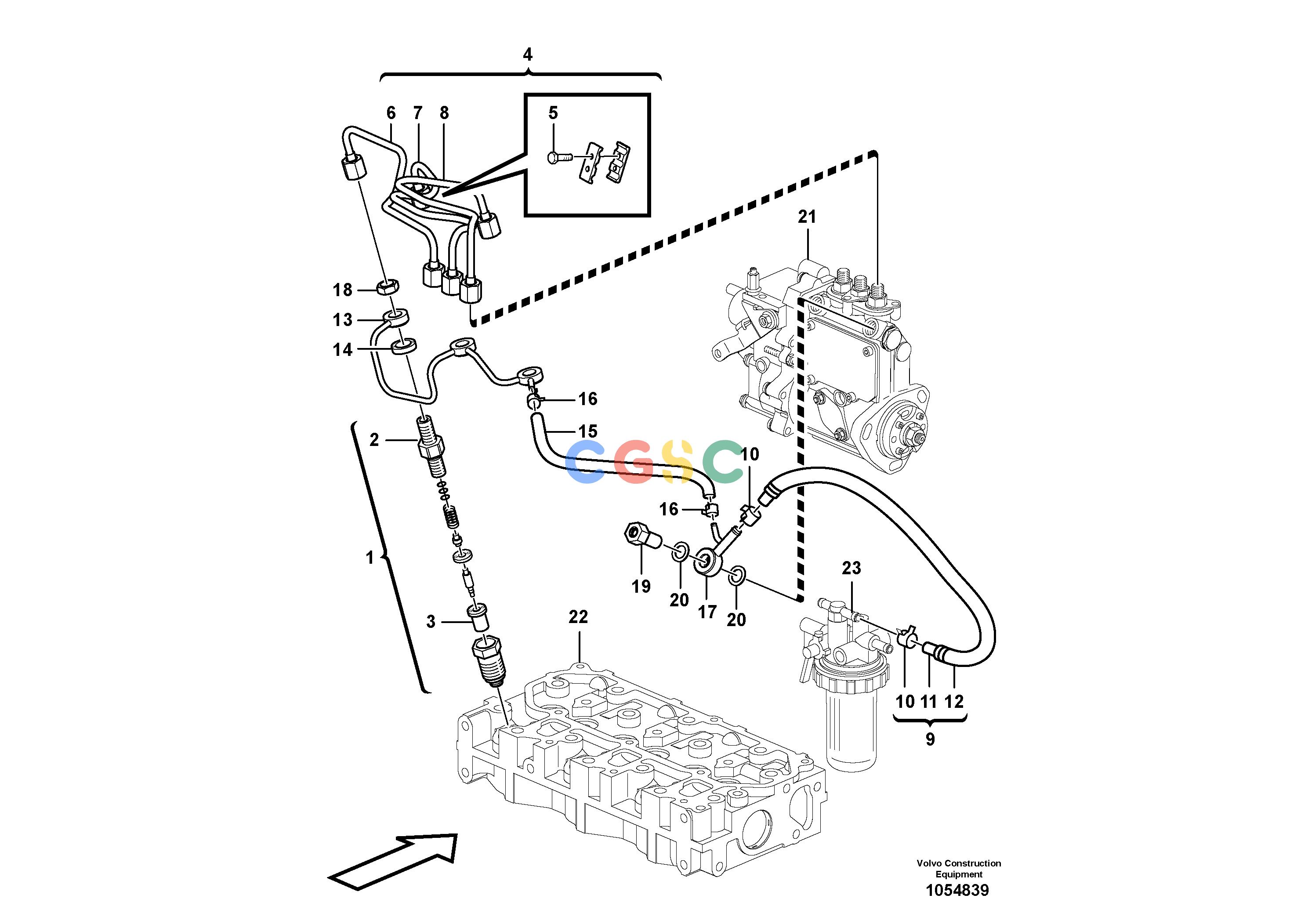

沃尔沃零件查询EC15C Fuel lines and injectorsS/N 1533-2261 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
594 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE15161803
|
[3] |
Injector
|
|
| 2. |
VOE11713459
|
[3] |
Nozzle retainer
|
|
| 3. |
VOE11713463
|
[3] |
Nozzle
|
|
| 4. |
VOE11713464
|
[1] |
Retainer
|
|
| 5. |
VOE11714506
|
[0002] |
Bolt
|
|
| 6. |
VOE11713465
|
[1] |
Pipe
|
|
| 7. |
VOE11713466
|
[1] |
Pipe
|
|
| 8. |
VOE11713467
|
[1] |
Pipe
|
|
| 9. |
VOE11713473
|
[1] |
Hose
|
|
| 10. |
VOE11713474
|
[2] |
Clamp
|
|
| 11. |
VOE11713476
|
[1] |
Hose
|
|
| 12. |
VOE11713475
|
[1] |
Protecting hose
|
|
| 13. |
VOE11713469
|
[1] |
Pipe
|
|
| 14. |
VOE11713314
|
[3] |
Gasket
|
|
| 15. |
VOE17425749
|
[1] |
Pipe Line
|
|
| 16. |
VOE11713471
|
[2] |
Clamp
|
|
| 17. |
VOE11713468
|
[1] |
Joint nipple
|
|
| 18. |
VOE11713472
|
[3] |
Nut
|
|
| 19. |
VOE11713477
|
[1] |
Valve
|
|
| 20. |
VOE11713313
|
[2] |
Seal
|
|
| 21. |
|
[1] |
Fuel pump
|
|
| 22. |
|
[1] |
Cylinder head
|
|
| 23. |
|
[1] |
Fuel Filter
|
|
