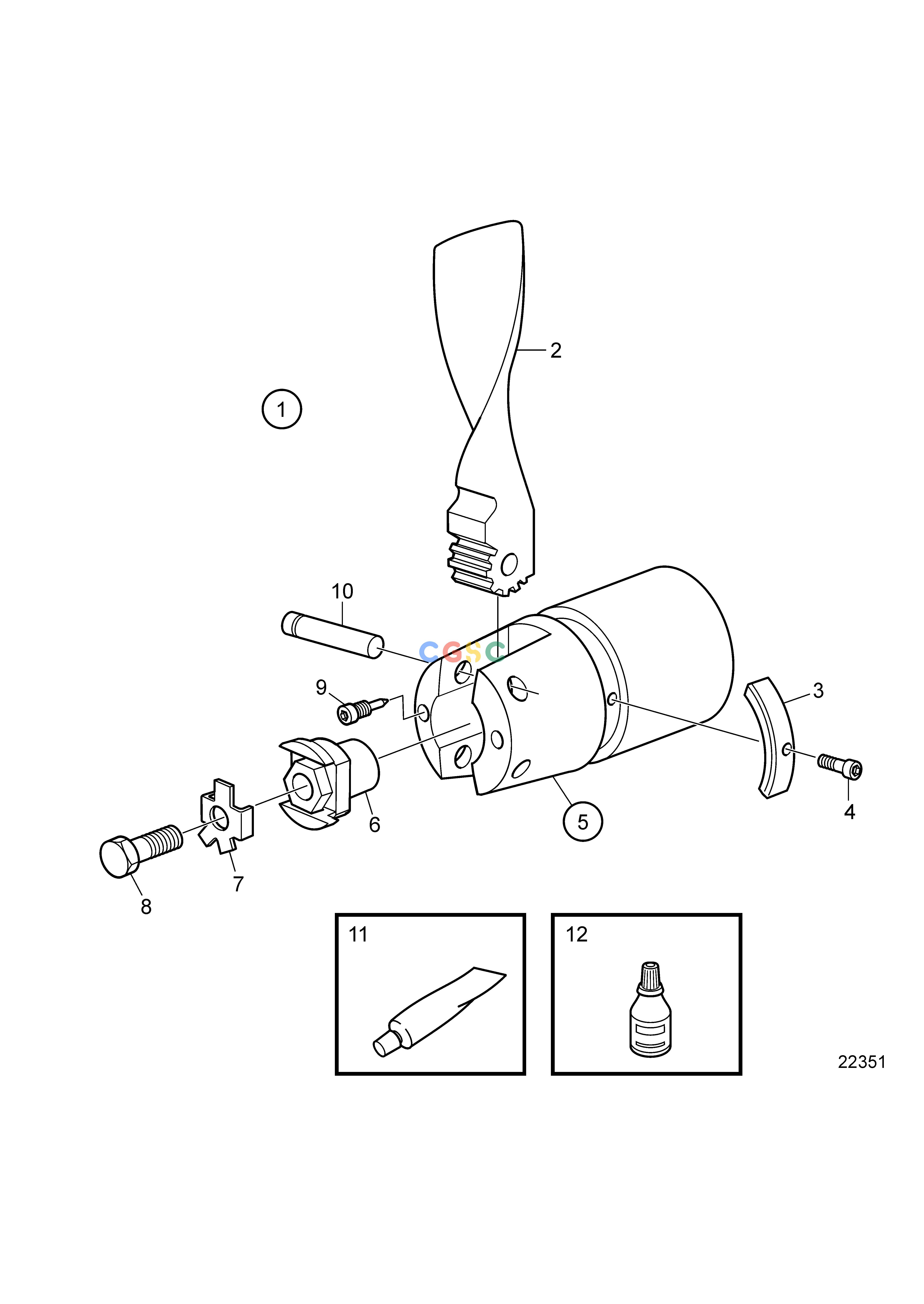

沃尔沃零件查询D1-13; D1-13B; D1-20; D1-20B; D1-30; D1-30B; D2-40; D2-40B; D1-13F; D1-20F; D1-30F; D2-40FTransmissionsFolding Propeller, 2-bladeEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
730 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3858506
|
[1] |
Propeller
|
14x6
|
| 1. |
3858507
|
[1] |
Propeller
|
14x8 (3855562)
|
| 1. |
3858508
|
[1] |
Propeller
|
15x9 (3855563)
|
| 1. |
3858510
|
[1] |
Propeller
|
16x11 (3855565)
|
| 1. |
3858511
|
[1] |
Propeller
|
17X13
|
| 1. |
3858512
|
[1] |
Propeller
|
17x14 (3855567)
|
| 2. |
872876
|
[1] |
Propeller
|
14x6
|
| 2. |
872877
|
[1] |
Propeller
|
14X8
|
| 2. |
872878
|
[1] |
Propeller
|
15x9
|
| 2. |
872880
|
[1] |
Propeller
|
16x11
|
| 2. |
872881
|
[1] |
Propeller
|
17X13
|
| 2. |
873536
|
[1] |
Propeller blade kit
|
17X14
|
| 2. |
872882
|
[1] |
Propeller
|
17x15
|
| 2. |
873537
|
[1] |
Propeller blade kit
|
17x17
|
| 3. |
3858399
|
[1] |
Zinc anode kit
|
|
| 3. |
3858400
|
[1] |
Magnesium anode kit
|
|
| 4. |
963677
|
[3] |
Hex. socket screw
|
|
| 5. |
3858849
|
[1] |
Hub kit
|
|
| 6. |
3584466
|
[1] |
Propeller nut
|
(3851993)
|
| 7. |
3851994
|
[1] |
Lock washer
|
|
| 8. |
946730
|
[1] |
Hexagon screw
|
|
| 9. |
3855529
|
[2] |
Screw
|
|
| 10. |
3855528
|
[2] |
Shaft
|
|
| 11. |
828250
|
[1] |
Lubricating grease
|
25G
|
| 12. |
1161053
|
[1] |
Locking fluid
|
|
