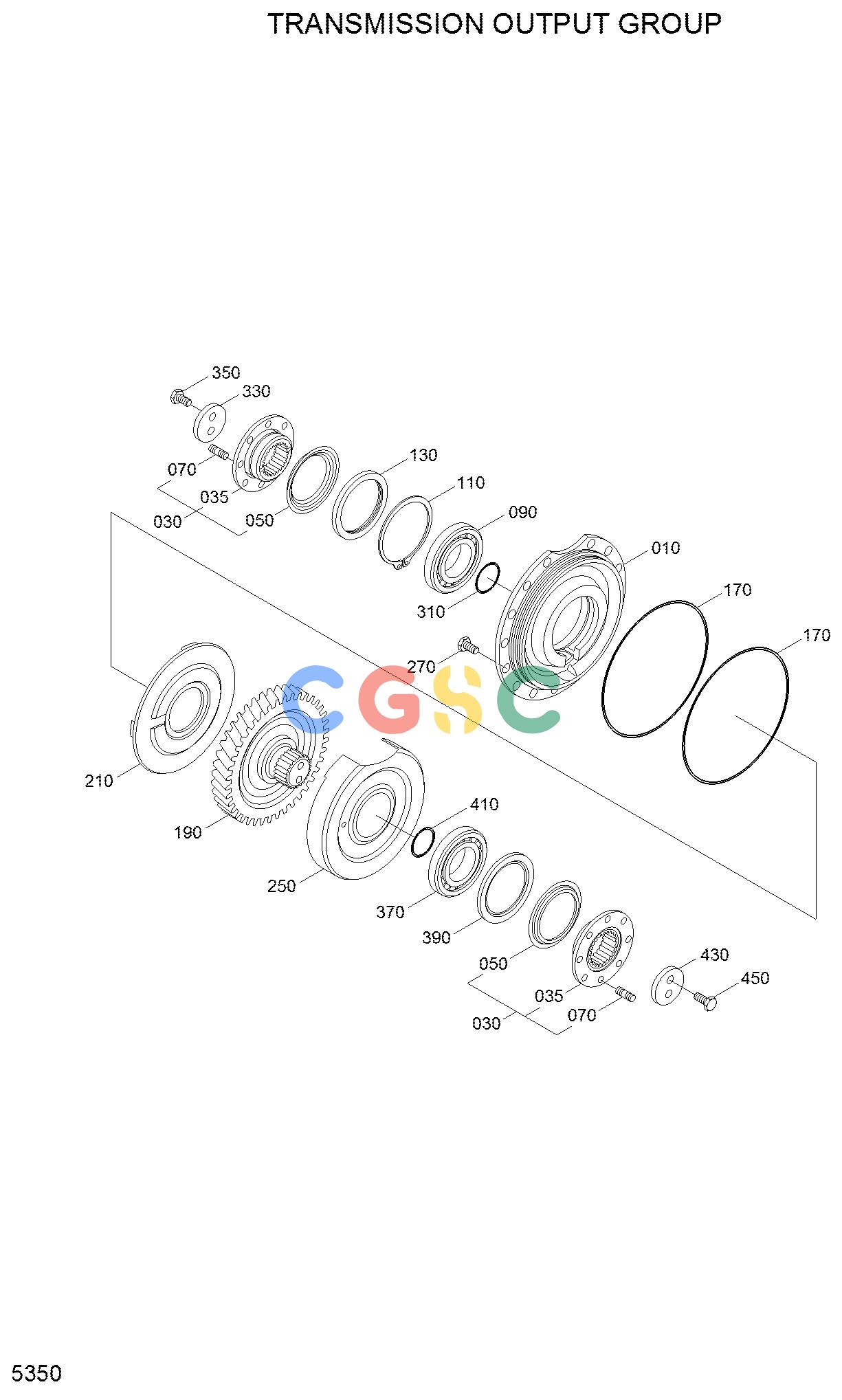

现代零件查询R170W-7A TRANSMISSION OUTPUT GROUPEPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
224 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
ZGAQ-02056
|
[1] |
COVER
|
|
| 030. |
ZGAQ-02053
|
[1] |
FLANGE-OUTPUT
|
|
| 035. |
ZGAQ-01091
|
[1] |
FLANGE-OUTPUT
|
|
| 050. |
ZGAQ-02054
|
[1] |
SHEET
|
|
| 070. |
ZGAQ-01093
|
[8] |
STUD
|
|
| 090. |
ZGAQ-01086
|
[1] |
BEARING-BALL
|
|
| 110. |
ZGAQ-01039
|
[1] |
RING-RETAINER
|
|
| 130. |
ZGAQ-02057
|
[1] |
SEAL-SHAFT
|
|
| 170. |
ZGAQ-01997
|
[2] |
O-RING
|
|
| 190. |
ZGAQ-02058
|
[1] |
GEAR-OUTPUT
|
|
| 210. |
ZGAQ-02059
|
[1] |
DEFLECTOR-OIL
|
|
| 250. |
ZGAQ-02060
|
[1] |
SHEET-SCREEN
|
|
| 270. |
ZGAQ-02061
|
[5] |
SCREW-HEX
|
|
| 310. |
ZGAQ-01094
|
[1] |
O-RING
|
|
| 330. |
ZGAQ-02062
|
[1] |
WASHER
|
|
| 350. |
ZGAQ-00447
|
[2] |
SCREW-HEX
|
|
| 370. |
ZGAQ-01086
|
[1] |
BEARING-BALL
|
|
| 390. |
ZGAQ-02057
|
[1] |
SEAL-SHAFT
|
|
| 410. |
ZGAQ-01094
|
[1] |
O-RING
|
|
| 430. |
ZGAQ-01095
|
[1] |
WASHER
|
|
| 450. |
ZGAQ-00447
|
[2] |
SCREW-HEX
|
|
