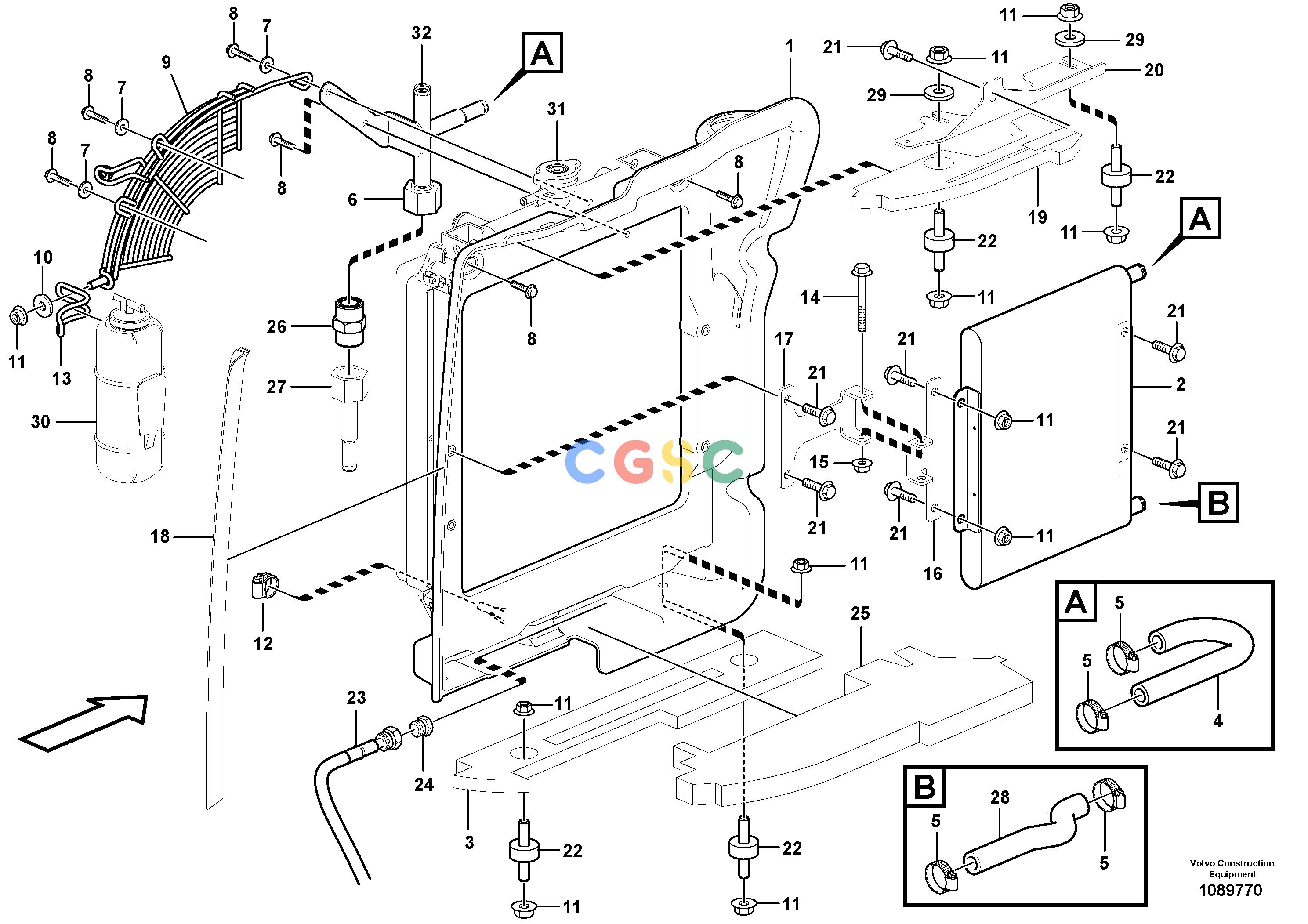

沃尔沃零件查询EC15C Radiator with fitting partsS/N 1533-2261 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
745 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE15621072
|
[1] |
Support
|
|
| 2. |
VOE15628037
|
[1] |
Oil cooler
|
|
| 3. |
VOE15610124
|
[1] |
Insulating material
|
|
| 4. |
VOE15634751
|
[1] |
Return hose
|
|
| 5. |
VOE13943474
|
[4] |
Hose clamp
|
|
| 6. |
VOE15646729
|
[1] |
Tube
|
|
| 7. |
VOE60110304
|
[3] |
Washer
|
|
| 8. |
VOE13946934
|
[2] |
Screw
|
|
| 8. |
VOE13947542
|
[4] |
Screw
|
|
| 9. |
VOE15603860
|
[1] |
Grating
|
|
| 10. |
VOE976945
|
[1] |
Washer
|
|
| 11. |
VOE13945408
|
[11] |
Nut
|
|
| 12. |
VOE943470
|
[1] |
Hose clamp
|
|
| 13. |
VOE15634194
|
[1] |
Support
|
|
| 14. |
VOE13965181
|
[1] |
Screw
|
|
| 15. |
VOE948645
|
[1] |
Flange lock nut
|
|
| 16. |
VOE15636705
|
[1] |
Support
|
|
| 17. |
VOE15636702
|
[1] |
Support
|
|
| 18. |
VOE15631473
|
[1] |
Sealant
|
|
| 19. |
VOE15636127
|
[1] |
Insulating material
|
|
| 20. |
VOE15621593
|
[1] |
Support
|
|
| 21. |
VOE13946173
|
[7] |
Screw
|
|
| 22. |
VOE11802713
|
[4] |
Mounting base
|
|
| 23. |
VOE15633500
|
[1] |
Hose assembly
|
|
| 24. |
VOE935651
|
[1] |
Plug
|
|
| 25. |
VOE15636467
|
[1] |
Insulating material
|
|
| 26. |
VOE11410666
|
[1] |
Non-return valve
|
|
| 27. |
VOE15646723
|
[1] |
Tube
|
|
| 28. |
VOE15638385
|
[1] |
Return hose
|
|
| 29. |
VOE11117464
|
[2] |
Plain washer
|
|
| 30. |
|
[1] |
Expansion Tank
|
|
| 31. |
|
[1] |
Radiator
|
|
| 32. |
VOE15675462
|
[1] |
Tube
|
|
