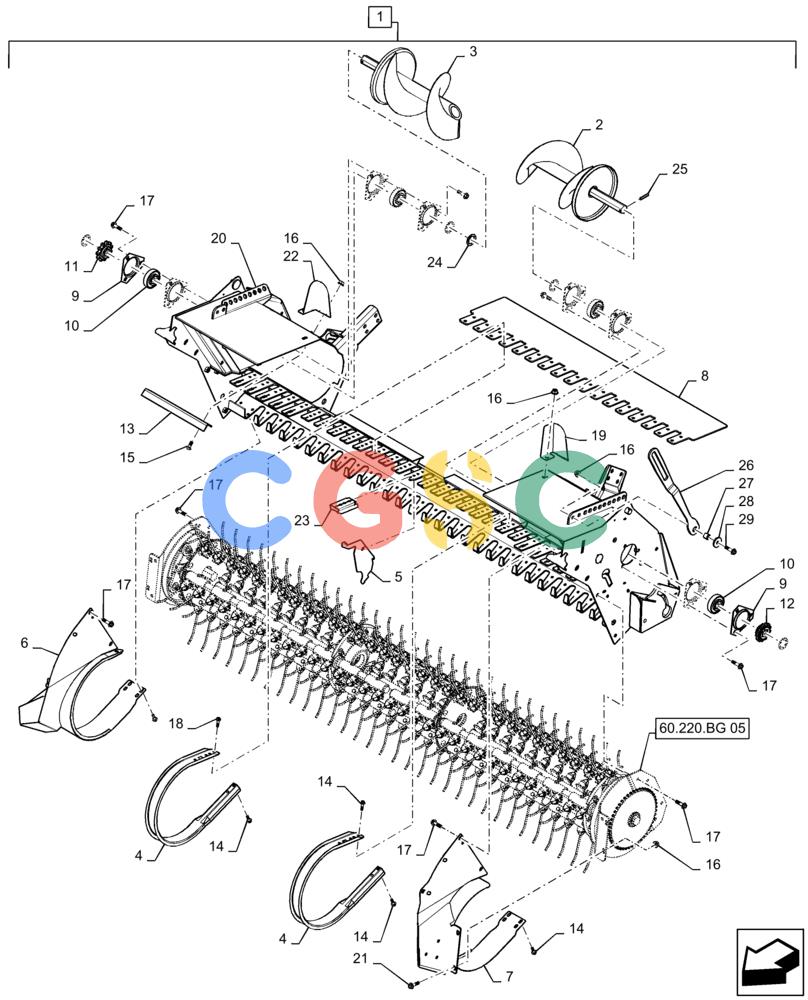

凯斯零件查询(RB455) - CASE IH ROUND BALER - NORTH AMERICA (1/14-12/15) (60.220.BD[13]) - VAR - 726918 - 2M NON ROTOR PICKUP ASSEMBLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
974 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47517979
|
[1] |
PICK-UP
|
NH
2M Rotor Pickup Assembly, Incl 2 - 29
|
| 2. |
84373925
|
[1] |
AUGER
|
NH
LH
|
| 3. |
84373865
|
[1] |
AUGER
|
NH
RH
|
| 4. |
84329282
|
[31] |
GUARD
|
NH
|
| 5. |
84297360
|
[31] |
DIVIDER
|
NH
|
| 6. |
84305031
|
[1] |
GUIDE
|
NH
RH
|
| 6. |
47847841
|
[1] |
GUARD
|
NH
RH
|
| 7. |
84305034
|
[1] |
GUIDE
|
NH
LH
|
| 7. |
47881435
|
[1] |
GUARD
|
NH
LH
|
| 8. |
47864510
|
[1] |
FLOOR,260mm W x 1150mm L x 6.35mm Thk, Polyurethane
|
NH
|
| 9. |
84414985
|
[8] |
FLANGED BEARING
|
GI
|
| 10. |
84324246
|
[4] |
SPHERICAL BEARING,31.75mm ID x 72mm OD x 25mm Thk
|
NH
|
| 11. |
84372087
|
[1] |
SPROCKET,RC60, 11T
|
PLO
11T, RC60
|
| 12. |
84372082
|
[1] |
SPROCKET,RC50, 13T
|
PLO
13T, RC50
|
| 13. |
84374389
|
[2] |
ANGLE
|
PLO
|
| 14. |
87039762
|
[92] |
SELF-TAP SCREW,Hex Wash Hd, 5/16"-18 x 5/8"
|
PA
Superseded by part number: 570821
|
| 15. |
86633356
|
[6] |
CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8
|
ZED
|
| 16. |
9804278
|
[18] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 17. |
86050286
|
[24] |
FLANGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 18. |
87577839
|
[34] |
SELF-TAP SCREW,Hex Washer Hd, 5/16" - 18 x 7/8"
|
SAS
|
| 19. |
84385892
|
[1] |
SHIELD
|
PLO
LH Upper
|
| 20. |
84522979
|
[1] |
FRAME
|
NH
|
| 21. |
9804261
|
[13] |
BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd
|
NH
|
| 22. |
84385890
|
[1] |
SHIELD
|
PLO
RH Upper
|
| 23. |
84404702
|
[31] |
DIVIDER
|
NH
|
| 24. |
47431597
|
[6] |
SPACER,Hex, 33mm ID x 45mm OD x 1.98mm Thk
|
NH
|
| 25. |
13942970
|
[2] |
ROLL PIN,M6 x 45, Coiled
|
MOD
|
| 26. |
84307932
|
[2] |
LINK
|
PLO
|
| 27. |
87020910
|
[2] |
SPACER,10.4mm ID x 19mm OD x 8.9mm Thk
|
PA
|
| 28. |
213404
|
[2] |
SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL
|
NH
|
| 29. |
9804263
|
[2] |
BOLT,M10 x 49.2mm, Cl 8.8
|
NH
|
