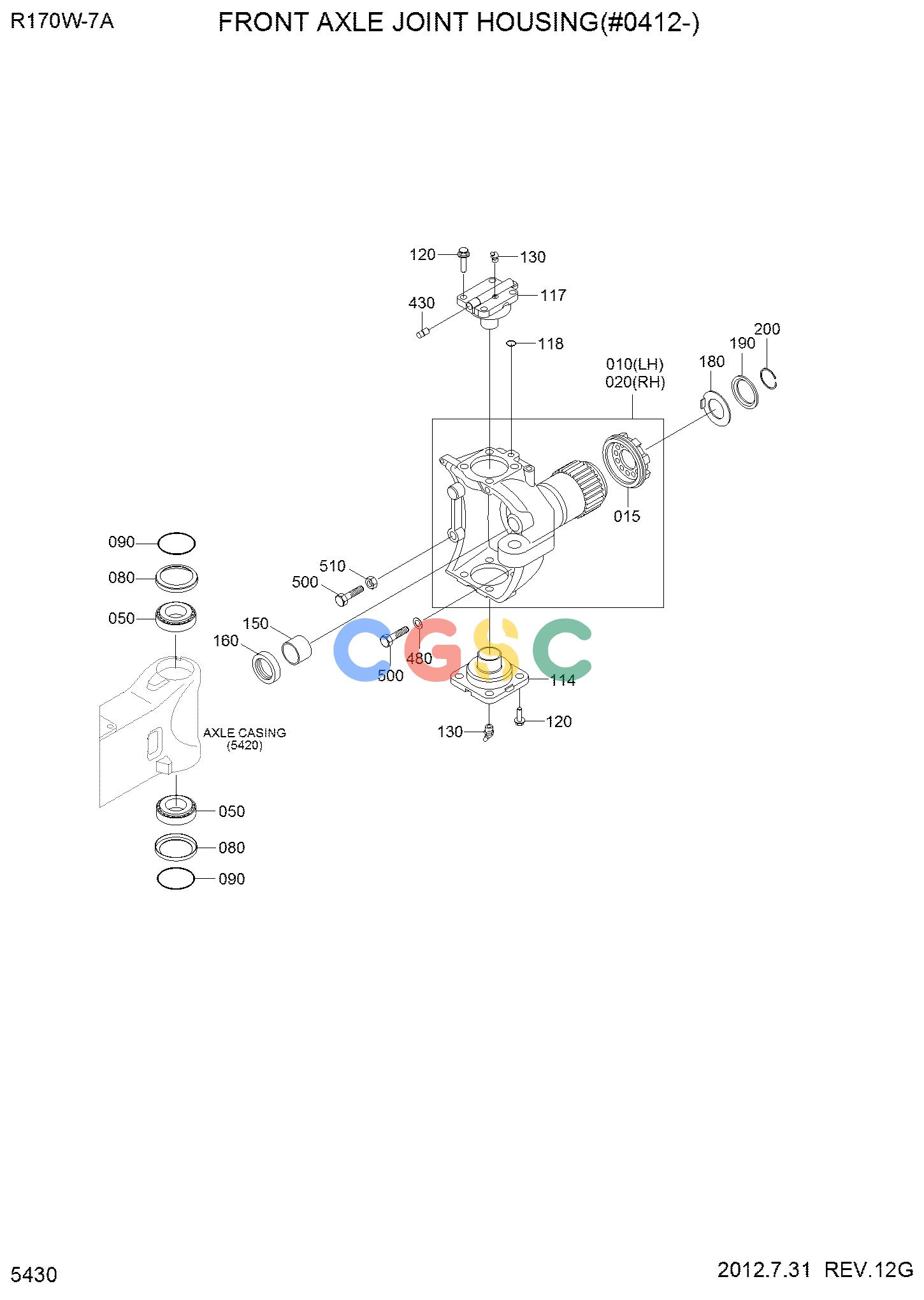

现代零件查询R170W-7A FRONT AXLE JOINT HOUSING(#0412-)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
903 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
ZGAQ-03587
|
[1] |
JOINT HOUSING-LH
|
|
| 015. |
ZGAQ-02198
|
[1] |
NUT-SLOTTED
|
|
| 020. |
ZGAQ-03588
|
[1] |
JOINT HOUSING-RH
|
|
| 015. |
ZGAQ-02198
|
[1] |
NUT-SLOTTED
|
|
| 050. |
ZGAQ-04469
|
[4] |
BEARING-ROLLER
|
|
| 080. |
ZGAQ-03793
|
[4] |
CAP-SEALING
|
|
| 090. |
ZGAQ-03794
|
[4] |
O-RING
|
|
| 114. |
ZGAQ-03589
|
[2] |
PIN-BEARING
|
|
| 117. |
ZGAQ-03590
|
[2] |
PIN-BEARING
|
|
| 118. |
ZGAQ-01254
|
[2] |
O-RING
|
|
| 120. |
ZGAQ-02260
|
[16] |
SCREW-HEX
|
|
| 130. |
ZGAQ-02261
|
[4] |
NIPPLE-LUBRIC
|
|
| 150. |
ZGAQ-02235
|
[2] |
BUSHING
|
|
| 160. |
ZGAQ-03222
|
[2] |
SEAL-SHAFT
|
|
| 180. |
ZGAQ-02263
|
[2] |
WASHER-THRUST
|
|
| 190. |
ZGAQ-02264
|
[2] |
WASHER-THRUST
|
|
| 200. |
ZGAQ-02265
|
[2] |
RING-RETAINER
|
|
| 270. |
ZGAQ-02199
|
[6] |
PLUG
|
|
| 430. |
ZGAQ-02200
|
[2] |
VALVE-VENT
|
|
| 480. |
ZGAQ-04055
|
[2] |
WASHER-STOP(7.0)
|
|
| 480. |
ZGAQ-04056
|
[2] |
WASHER-STOP(7.5)
|
|
| 480. |
ZGAQ-02266
|
[2] |
WASHER-STOP(6.0)
|
|
| 480. |
ZGAQ-02267
|
[2] |
WASHER-STOP(6.5)
|
|
| 480. |
ZGAQ-02268
|
[2] |
WASHER-STOP(4.0)
|
|
| 480. |
ZGAQ-02269
|
[2] |
WASHER-STOP(5.0)
|
|
| 480. |
ZGAQ-02270
|
[2] |
WASHER-STOP(5.5)
|
|
| 480. |
ZGAQ-02271
|
[2] |
WASHER-STOP(4.5)
|
|
| 480. |
ZGAQ-02272
|
[2] |
WASHER-STOP(2.0)
|
|
| 480. |
ZGAQ-02273
|
[2] |
WASHER-STOP(3.0)
|
|
| 480. |
ZGAQ-02274
|
[2] |
WASHER-STOP(8.0)
|
|
| 480. |
ZGAQ-04057
|
[2] |
WASHER-STOP(8.5)
|
|
| 480. |
ZGAQ-02275
|
[2] |
WASHER-STOP(9.0)
|
|
| 480. |
0730-161-082
|
[2] |
Deleted...
|
|
| 480. |
ZGAQ-02276
|
[2] |
WASHER-STOP(10.0)
|
|
| 480. |
0730-161-083
|
[2] |
Deleted...
|
|
| 480. |
ZGAQ-02277
|
[2] |
WASHER-STOP(11.0)
|
|
| 480. |
0730-162-456
|
[2] |
Deleted...
|
|
| 480. |
ZGAQ-02278
|
[2] |
WASHER-STOP(12.0)
|
|
| 480. |
0730-162-458
|
[2] |
Deleted...
|
|
| 480. |
ZGAQ-02279
|
[2] |
WASHER-STOP(13.0)
|
|
| 480. |
0730-162-460
|
[2] |
Deleted...
|
|
| 480. |
ZGAQ-02280
|
[2] |
WASHER-STOP(14.0)
|
|
| 480. |
ZGAQ-04063
|
[2] |
WASHER-STOP(1.5)
|
|
| 480. |
ZGAQ-04064
|
[2] |
WASHER-STOP(1.3)
|
|
| 480. |
ZGAQ-04065
|
[2] |
WASHER-STOP(1.2)
|
|
| 480. |
ZGAQ-04066
|
[2] |
WASHER-STOP(1.0)
|
|
| 500. |
ZGAQ-02362
|
[4] |
SCREW-STOP
|
|
| 510. |
ZGAQ-02910
|
[2] |
NUT-HEX
|
|
