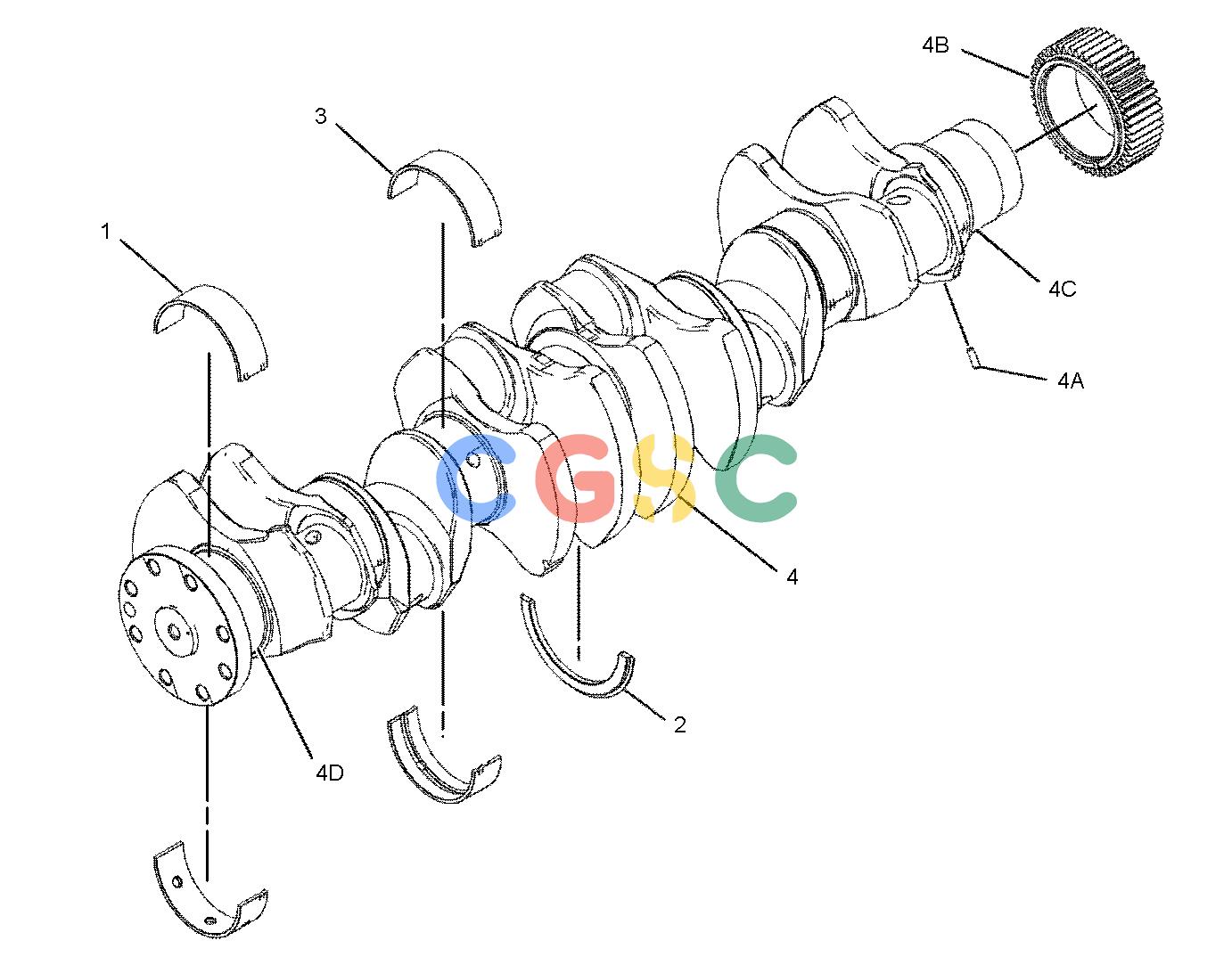

卡特零件查询（725） 132-3210: CRANKSHAFT GP
广数供应链运营团队, 14 02月, 2025，浏览：
706 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 211-0588J | [3] | BEARING-MAIN | |
| | 128-0382AB | | BEARING-MAIN(0.51-MM US) | |
| | 128-0383AB | | BEARING-MAIN(0.76-MM US) | |
| | 128-0384AB | | BEARING-MAIN(0.51-MM OS) | |
| | 128-0385AB | | BEARING-MAIN(0.51-MM OS, 0.51-MM US) | |
| 2. | 246-3144J | [2] | PLATE-THRUST | |
| 3. | 211-0587J | [4] | BEARING-MAIN | |
| | 128-0400AB | | BEARING-MAIN(0.51-MM US) | |
| | 128-0401AB | | BEARING-MAIN(0.76-MM US) | |
| | 128-0402AB | | BEARING-MAIN(0.51-MM OS) | |
| | 128-0403AB | | BEARING-MAIN(0.51-MM OS, 0.51-MM US) | |
| 4. | 326-4278 | [1] | CRANKSHAFT AS | |
| 4A. | 6V-3536 | [1] | DOWEL | |
| 4B. | 187-8972 | [1] | GEAR-CRANKSHAFT(48-TEETH) | |
| 4C. | 9Y-0821 | [1] | SLEEVE(FRONT) | |
| 4D. | 9Y-0810 | [1] | SLEEVE-WEAR(REAR) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 196-9521J | | BEARING GP-MAIN(CRANKSHAFT) | |
| | | | (INCLUDES STANDARD MAIN BEARINGS & THRUST PLATES) |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
| | J | | KITS MARKED J INCLUDES PARTS MARKED J |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
