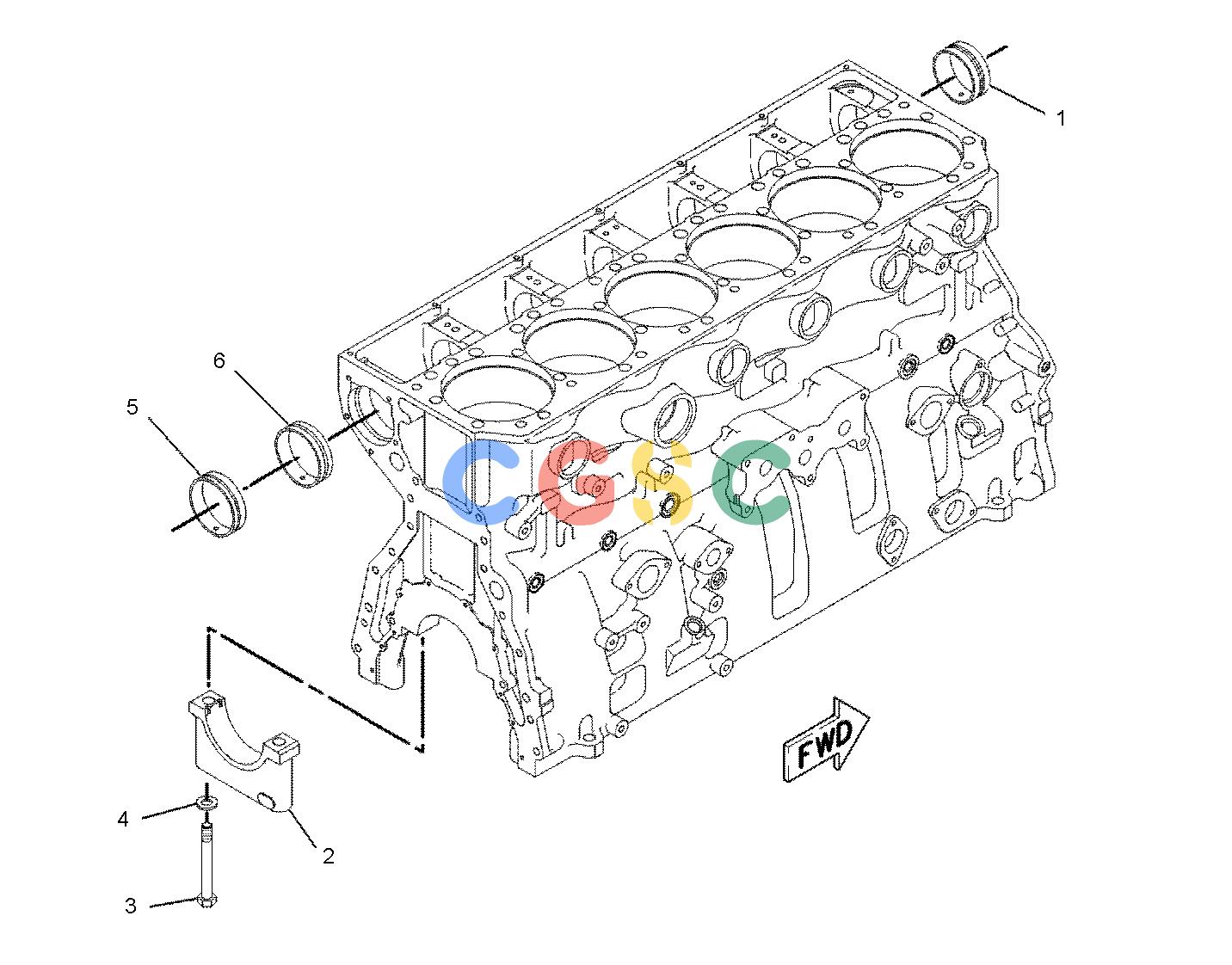

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 216-5584 | [1] | BUSHING | |
| 2. | 117-0166 | [7] | CAP-BEARING | |
| 3. | 175-0454M | [14] | BOLT(M16X2X160-MM) | |
| 4. | 5P-8247 | [14] | WASHER-HARD(17X32X3.5-MM THK) | |
| 5. | 216-5585 | [1] | BUSHING | |
| 6. | 216-5583 | [5] | BUSHING | |
| M | METRIC PART | |||
广数供应链运营团队, 14 02月, 2025，浏览： 1016 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 216-5584 | [1] | BUSHING | |
| 2. | 117-0166 | [7] | CAP-BEARING | |
| 3. | 175-0454M | [14] | BOLT(M16X2X160-MM) | |
| 4. | 5P-8247 | [14] | WASHER-HARD(17X32X3.5-MM THK) | |
| 5. | 216-5585 | [1] | BUSHING | |
| 6. | 216-5583 | [5] | BUSHING | |
| M | METRIC PART | |||
