纽荷兰零件查询(CV900) - VIBRATORY ROLLER (9/01-) (12-005-00[01]) - CHASSIS - DRUM New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
889 次

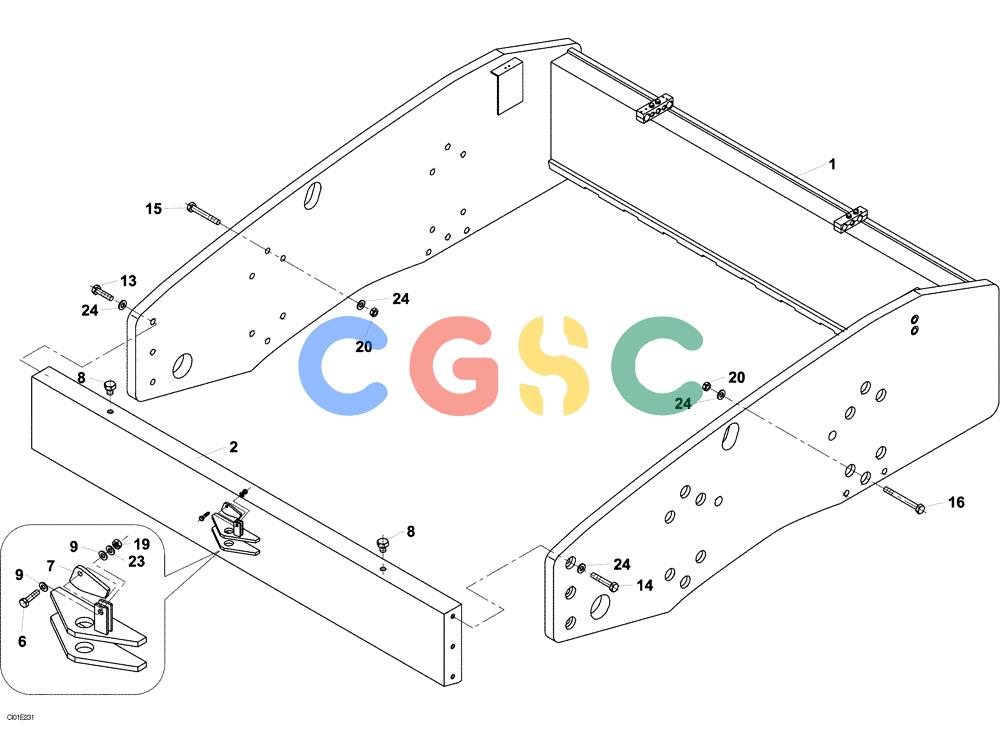

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND104275 | [1] | FRAME | STA |
| 2. | ND104312 | [1] | CROSSRAIL | STA |
| 6. | ND053434 | [1] | SCREW | STAM10 x 50 |
| 7. | ND048624 | [1] | PLATE | STA |
| 8. | ND109004 | [2] | PLUG | STA |
| 9. | ND037213 | [2] | WASHER | STA |
| 13. | ND021229 | [4] | BOLT | STAM16 x 65 |
| 14. | ND021230 | [4] | BOLT | STAM16 x 70 |
| 15. | ND021231 | [12] | BOLT | STAM16 x 80 |
| 16. | ND021232 | [12] | BOLT | STAM16 x 90 |
| 19. | ND027302 | [1] | NUT | STAM 10 |
| 20. | ND021851 | [24] | NUT | STAM16 |
| 23. | ND029250 | [1] | WASHER | STAID 10,5 |
| 24. | ND035943 | [32] | WASHER | STAID 16 |
