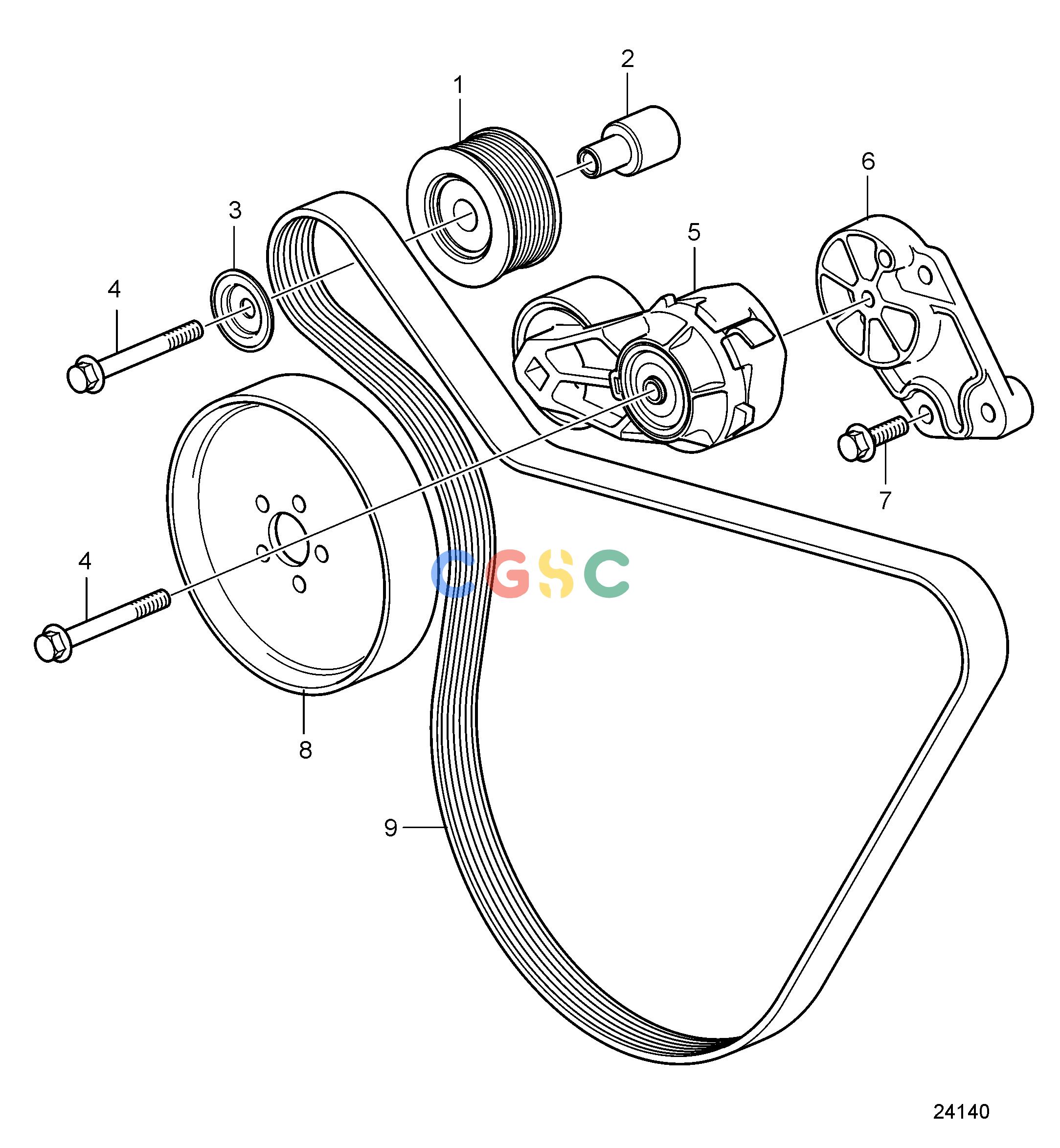

沃尔沃零件查询D11A-A; D11A-B; D11A-C; D11A-D MP; D11A-D (IPS); D11A-E; D11A-E MP; D11A-C MP; D11A-C (IPS)Cooling SystemBelt Transmission and Belt Tensioner DeviceEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
747 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20357382
|
[1] |
Idler pulley
|
|
| 2. |
3887334
|
[1] |
Hub sleeve
|
|
| 3. |
8097084
|
[1] |
Cover
|
|
| 4. |
984759
|
[2] |
Flange screw
|
|
| 5. |
20739751
|
[1] |
Belt tensioner
|
|
| 6. |
3849931
|
[1] |
Bracket
|
|
| 7. |
946472
|
[2] |
Flange screw
|
|
| 8. |
7749110_049
|
|
Pulley, water pump
|
|
| 9. |
982570
|
[1] |
V-ribbed belt
|
|
