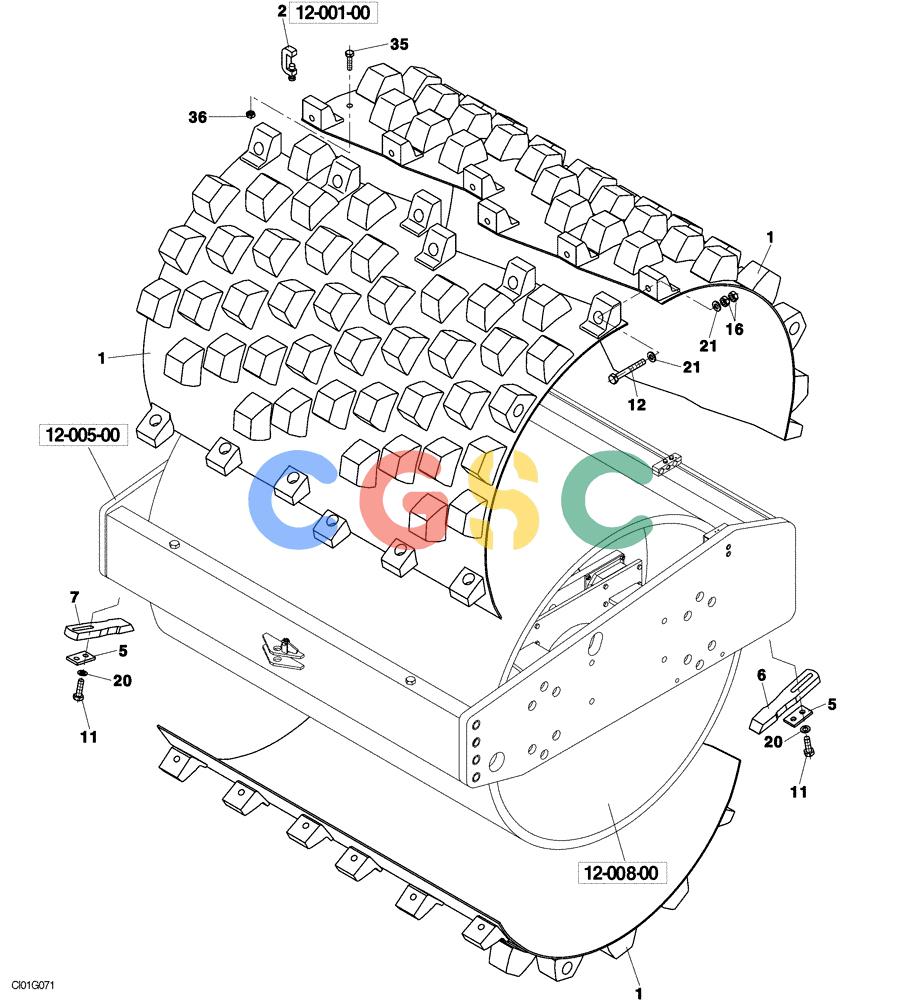

纽荷兰零件查询(CV900) - VIBRATORY ROLLER (9/01-) (12-009-00[01]) - ADAPTING THE DRUM FOR TAMPING COMPACTION New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
423 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND104257 | [3] | SHELL | STA |
| 2. | ND054304 | [8] | CLAMP | STA |
| 5. | ND104395 | [6] | PLATE | STA |
| 6. | ND104345 | [7] | SCRAPER TOOL | STA |
| 7. | ND104344 | [7] | SCRAPER TOOL | STA |
| 11. | ND021228 | [12] | BOLT | STAM16 x 60 |
| 12. | ND021235 | [18] | BOLT | STAM16 x 120 |
| 16. | ND021851 | [36] | NUT | STAM16 |
| 20. | ND035943 | [12] | WASHER | STAID 16 |
| 21. | ND029253 | [36] | WASHER | STAID 17 |
| 35. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
