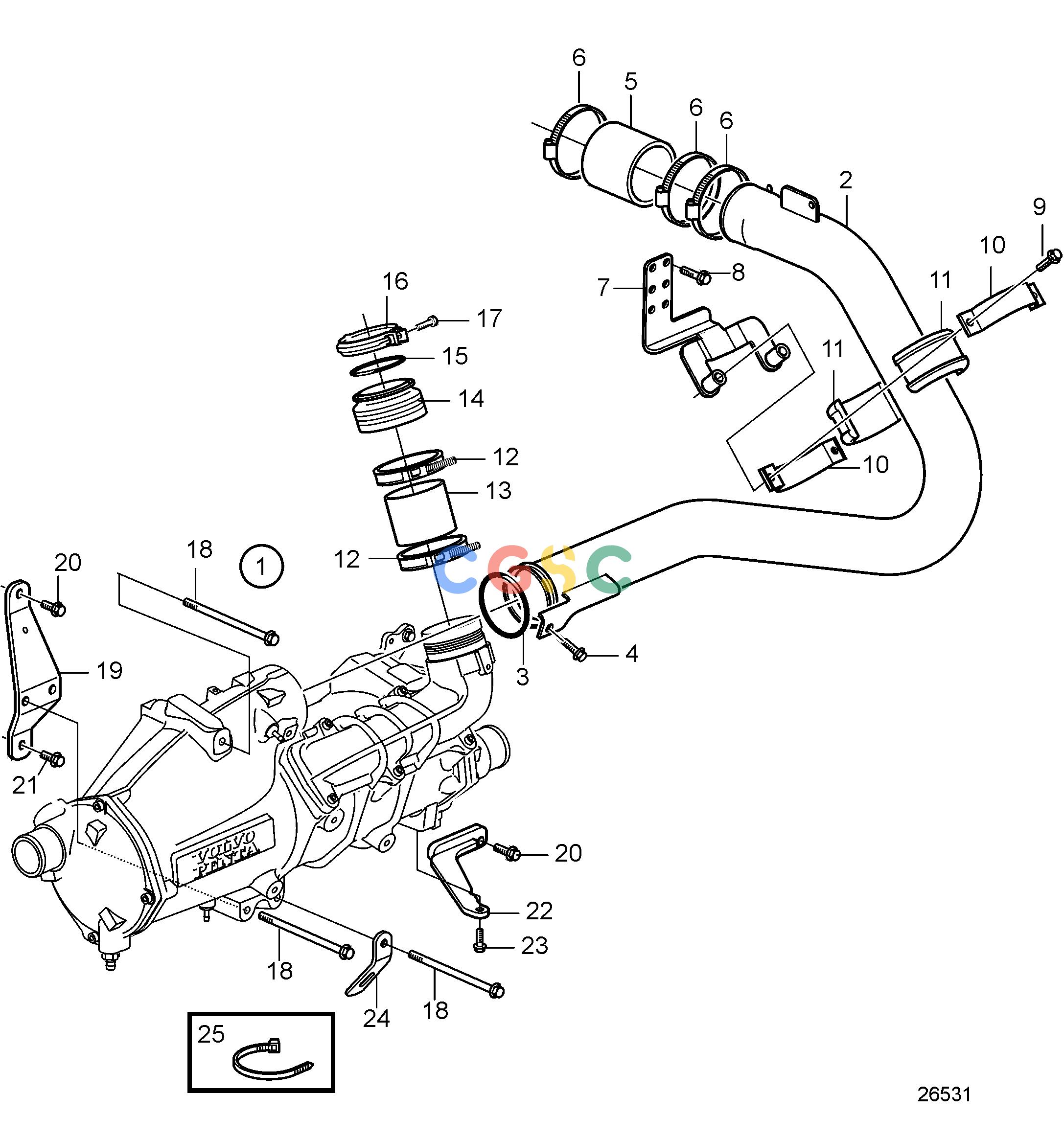

沃尔沃零件查询D11A-A; D11A-B; D11A-C; D11A-D MP; D11A-D (IPS); D11A-E; D11A-E MP; D11A-C MP; D11A-C (IPS)Cooling SystemConnecting Components for Charge Air CoolerEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
930 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21274971
|
[1] |
Charge air cooler
|
|
| 2. |
21113456
|
[1] |
Charge air pipe
|
Replaced by 21272604
|
| 2. |
21272604
|
[1] |
Charge air pipe
|
Replaced by 21933060
|
| 2. |
21933060
|
[1] |
Charge air pipe
|
|
| 3. |
1542783
|
[1] |
O-ring
|
|
| 4. |
984734
|
[1] |
Flange screw
|
|
| 5. |
943952
|
[1] |
Hose
|
L=80mm
|
| 5. |
952986
|
[1] |
Hose
|
L=120mm
|
| 6. |
994567
|
[3] |
Hose clamp
|
Use 2 clamps on the charge air pipe ( onlly for 120 mm)
|
| 7. |
21324373
|
[1] |
Bracket
|
For IPS
|
| 8. |
984738
|
[4] |
Flange screw
|
For IPS
|
| 9. |
973924
|
[2] |
Flange screw
|
For IPS
|
| 10. |
1674206
|
[1] |
Half clamp
|
For IPS
|
| 11. |
21324378
|
[1] |
Bushing
|
For IPS
|
| 12. |
1544731
|
[2] |
Hose clamp
|
|
| 13. |
470327
|
[1] |
Hose
|
|
| 14. |
21274919
|
[1] |
Flange connection
|
|
| 15. |
1542781
|
[1] |
Sealing ring
|
|
| 16. |
1542778
|
[1] |
V-clamp
|
|
| 17. |
994428
|
[1] |
Hexagon screw
|
|
| 18. |
984766
|
[3] |
Flange screw
|
|
| 19. |
|
|
|
|
| 20. |
984735
|
[2] |
Flange screw
|
|
| 21. |
984753
|
[1] |
Flange screw
|
|
| 22. |
3595213
|
[1] |
Bracket
|
|
| 23. |
959238
|
[1] |
Hex. socket screw
|
|
| 24. |
965571
|
[1] |
Bracket
|
|
| 25. |
948211
|
[1] |
Cable tie
|
|
