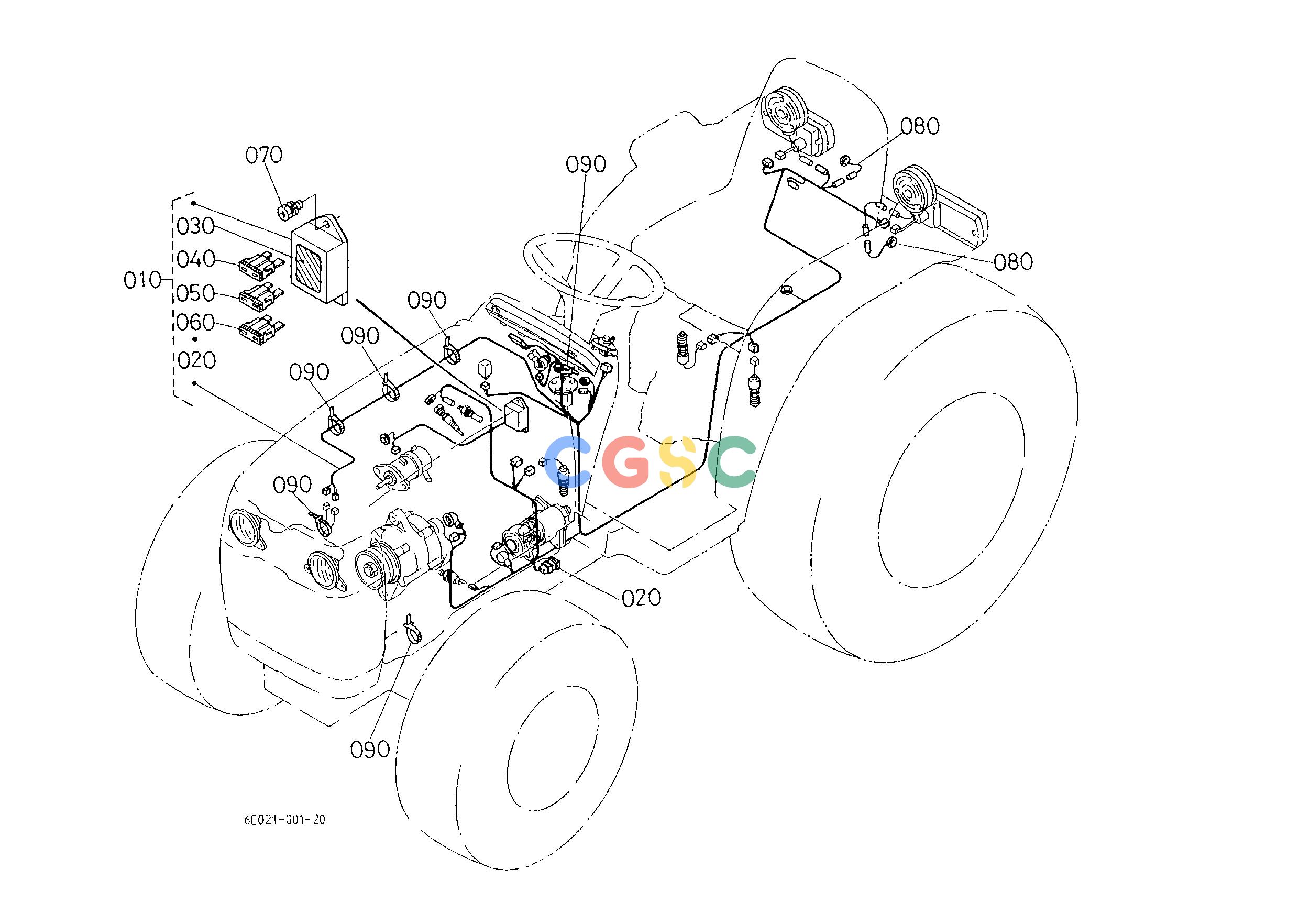

久保田零件查询B50102 ELECTRICAL WIRING [CA] ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
526 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C03155461
|
[1] |
HARNESS,WIRE,ASSY
|
0.0000(lbs); 0.000
|
| 010. |
6C02155463
|
[1] |
ASSY WIRE HARNESS
|
2.1120(lbs); 0.960
|
| 020. |
1747860080
|
[1] |
FUSE
|
0.0176(lbs); 0.008
|
| 030. |
6C04047490
|
[1] |
LABEL,FUSE BOX
|
0.0022(lbs); 0.001
|
| 040. |
6642680010
|
[2] |
FUSE,AUTO
|
0.0220(lbs); 0.010
|
| 050. |
3673075550
|
[1] |
FUSE
|
0.0066(lbs); 0.003
|
| 060. |
3582075560
|
[1] |
FUSE 15A
|
0.0044(lbs); 0.002
|
| 070. |
0120250620
|
[2] |
BOLT,SEMS(PHILLIPS)
|
0.0154(lbs); 0.007
|
| 080. |
6C04055480
|
[2] |
WIRE HARNESS
|
0.0110(lbs); 0.005
|
| 090. |
5358164150
|
[8] |
BAND,CORD
|
0.0044(lbs); 0.002
|
