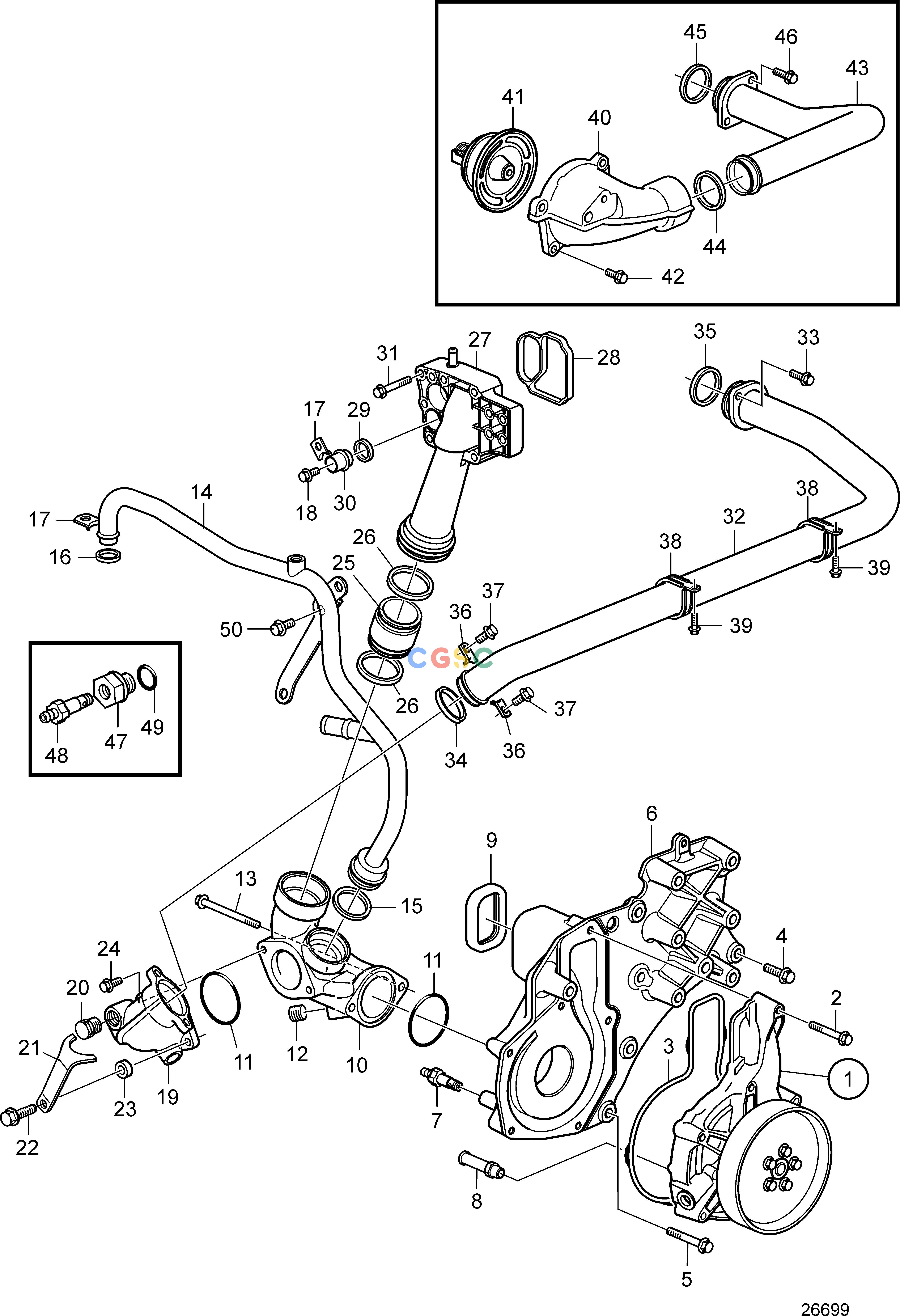

沃尔沃零件查询D11A-A; D11A-B; D11A-C; D11A-D MP; D11A-D (IPS); D11A-E; D11A-E MP; D11A-C MP; D11A-C (IPS)Cooling SystemCooling Water Pump and Thermostat HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
761 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801102
|
[1] |
Coolant pump
|
|
| 1. |
|
|
|
|
| 2. |
959229
|
[6] |
Hex. socket screw
|
|
| 3. |
8131097
|
[1] |
Rubber moulding
|
|
| 4. |
984752
|
[2] |
Flange screw
|
L=20mm
|
| 5. |
946472
|
[6] |
Flange screw
|
L=30mm
|
| 6. |
3808593
|
[1] |
Coolant pump housing
|
|
| 7. |
3583822
|
[1] |
Draining nipple
|
|
| 8. |
977508
|
[1] |
Hose nipple
|
|
| 9. |
20430678
|
[1] |
Rubber moulding
|
|
| 10. |
3836307
|
[1] |
Coolant pipe
|
|
| 11. |
975675
|
[2] |
O-ring
|
|
| 12. |
981763
|
[1] |
Plug
|
|
| 13. |
984744
|
[2] |
Flange screw
|
|
| 14. |
21244966
|
[1] |
Coolant pipe
|
|
| 15. |
1547253
|
[1] |
Sealing ring
|
|
| 16. |
1547252
|
[1] |
Sealing ring
|
|
| 17. |
1546531
|
[2] |
Lock brace
|
|
| 18. |
984733
|
[2] |
Flange screw
|
|
| 19. |
3886496
|
[1] |
Coolant pipe
|
|
| 20. |
982365
|
[1] |
Plug
|
|
| 21. |
21950616
|
[1] |
Bracket
|
|
| 22. |
984737
|
[1] |
Flange screw
|
|
| 23. |
20714050
|
[1] |
Flange screw
|
|
| 24. |
984733
|
[1] |
Flange screw
|
|
| 25. |
20451178
|
[1] |
Connection pipe
|
|
| 26. |
1547254
|
[2] |
Sealing ring
|
|
| 27. |
20555313
|
[1] |
Connection pipe
|
|
| 28. |
20479636
|
[1] |
Sealing strip
|
|
| 29. |
1547252
|
[1] |
Sealing ring
|
|
| 30. |
20845995
|
[1] |
Plug
|
|
| 31. |
973924
|
[5] |
Flange screw
|
|
| 32. |
3886500
|
[1] |
Coolant pipe
|
|
| 33. |
984734
|
[2] |
Flange screw
|
|
| 34. |
1547253
|
[1] |
Sealing ring
|
|
| 35. |
864491
|
[1] |
Gasket
|
|
| 36. |
1546531
|
[2] |
Lock brace
|
|
| 37. |
984733
|
[2] |
Flange screw
|
|
| 38. |
947457
|
[2] |
Clamp
|
|
| 39. |
967949
|
[2] |
Flange screw
|
|
| 40. |
3588673
|
[1] |
Cover
|
|
| 41. |
21412647
|
[1] |
Thermostat
|
76°C
|
| 42. |
984734
|
[4] |
Flange screw
|
|
| 43. |
3836309
|
[1] |
Coolant pipe
|
|
| 44. |
1547253
|
[1] |
Sealing ring
|
|
| 45. |
864491
|
[1] |
Gasket
|
|
| 46. |
984734
|
[2] |
Flange screw
|
|
| 47. |
3812353
|
[1] |
Nipple
|
|
| 48. |
3583822
|
[1] |
Draining nipple
|
|
| 49. |
20899253
|
[1] |
Sealing ring
|
|
| 50. |
984751
|
[1] |
Flange screw
|
|
