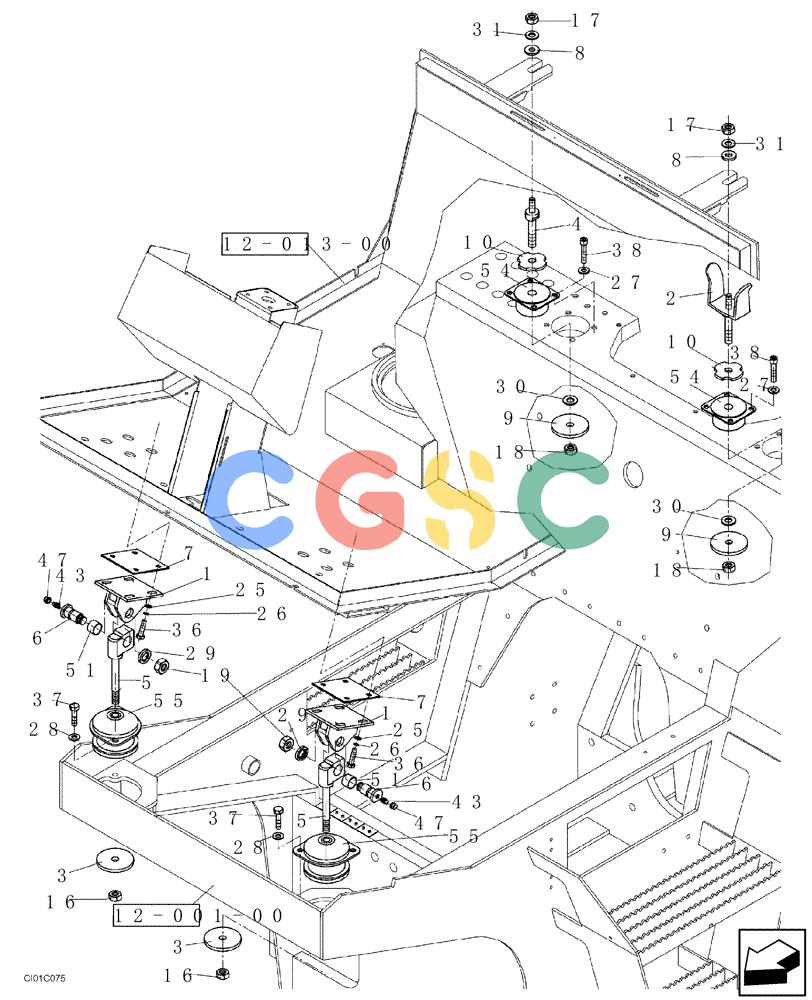

纽荷兰零件查询(CV900) - VIBRATORY ROLLER (9/01-) (12-014-00[01]) - OPERATORS COMPARTMENT - BELLOWS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
822 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND103797 | [2] | SUPPORT | STA |
| 2. | ND103139 | [1] | SCREW | STA |
| 3. | ND049221 | [2] | WASHER | STA |
| 4. | ND103138 | [1] | BOLT | STA |
| 5. | ND104368 | [2] | BRACKET | STA |
| 6. | ND103800 | [2] | PIN | STA |
| 7. | ND049253 | [2] | PLATE | STA |
| 8. | ND103181 | [2] | WASHER | STA |
| 9. | ND103177 | [2] | SPACER | STA |
| 10. | ND103178 | [2] | SPACER | STA |
| 11. | ND104419 | [2] | WASHER | STAID 21 |
| 16. | ND027304 | [2] | NUT | STAM16 |
| 17. | ND021862 | [2] | NUT | STAM16 |
| 18. | ND027305 | [2] | NUT | STAM20 |
| 19. | ND027306 | [2] | NUT | STA |
| 25. | ND029266 | [8] | WASHER | STAID 10 |
| 26. | ND090751 | [8] | WASHER | STAID 10 Superseded by part number: ND035941 |
| 27. | ND035942 | [8] | WASHER | STAID 12 |
| 28. | ND029251 | [4] | WASHER | STAID 13 |
| 30. | ND029270 | [2] | WASHER | STAID 21 |
| 31. | ND035827 | [2] | WASHER | STA |
| 36. | ND021302 | [8] | BOLT | STAM10 x 25 |
| 37. | ND021309 | [4] | BOLT | STAM12 x 25 |
| 38. | ND024270 | [8] | BOLT | STAM12 x 25 |
| 43. | ND070133 | [2] | LUBE NIPPLE,M10 x 1 | STA |
| 47. | ND064758 | [2] | PLUG | STA |
| 51. | ND103402 | [2] | BUSHING | STA |
| 54. | ND090014 | [2] | RUBBER MOUNTING | STA Superseded by part number: ND122385 |
| 55. | ND076109 | [2] | RUBBER MOUNTING | STA |
