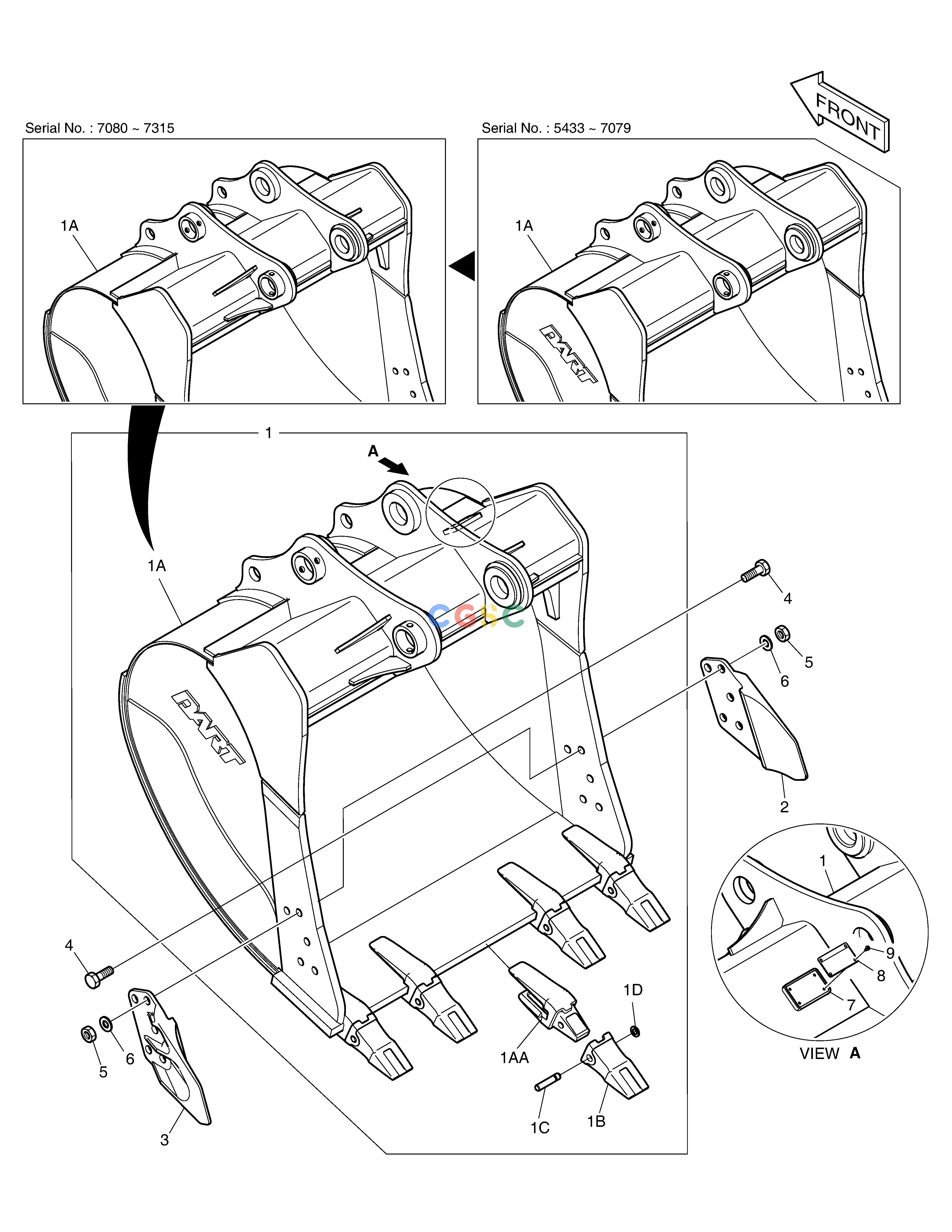

斗山零件查询BUCKET ASS'Y - 1.24m³(54") - SIDE PIN DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
181 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1013110A
|
[1] |
BUCKET ASS'Y-1.24㎥
|
230104-01269
|
| -. |
230104-01269B
|
[1] |
|
|
| -. |
230104-01269
|
[1] |
|
230104-01269A
|
| -. |
230104-01269A
|
[1] |
|
230104-01269B
|
| 1. |
K1013111A
|
[1] |
BUCKET;WITH TOOTH-1.24㎥
|
|
| 1A. |
230104-01271A
|
[1] |
|
230104-01271B
|
| 1A. |
230104-01271B
|
[1] |
|
|
| 1A. |
K1013112
|
[1] |
BUCKET;WELD-1.24㎥
|
230104-01271
|
| 1A. |
230104-01271
|
[1] |
|
230104-01271A
|
| 1AA. |
2713-1218A
|
[5] |
.. ADAPTER;TOOTH
|
|
| 1B. |
713-00024A
|
[5] |
TOOTH;POINT
|
|
| 1C. |
2705-1020
|
[5] |
. PIN,LOCKING
|
|
| 1D. |
2114-1848A
|
[5] |
. WASHER,LOCKING
|
|
| 2. |
2713-1059A
|
[1] |
. CUTTER;SIDE(R.H)
|
|
| 3. |
2713-1060A
|
[1] |
. CUTTER;SIDE(L.H)
|
|
| 4. |
S0574861
|
[10] |
BOLT M24X3.0X75
|
|
| 5. |
S4013333
|
[10] |
. NUT
|
|
| 6. |
2114-1831A
|
[10] |
. WASHER
|
|
| 7. |
110913-00289A
|
[1] |
|
|
| 8. |
950209-04415A
|
[1] |
|
|
| 9. |
DS0501007
|
[4] |
|
|
