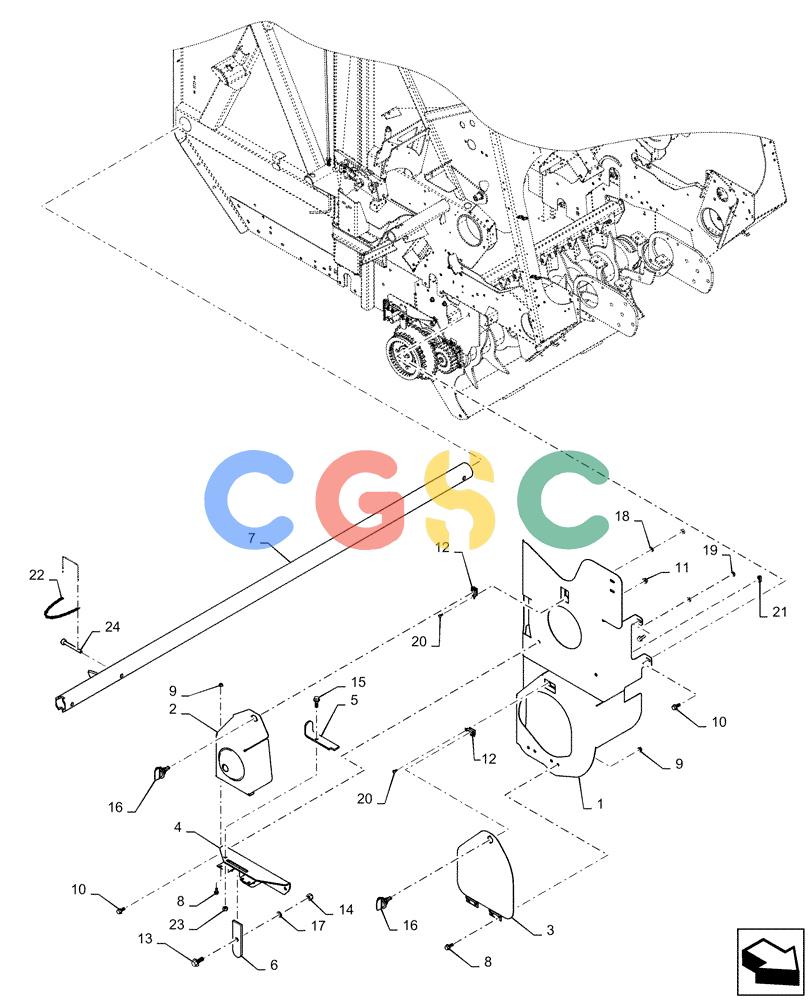

凯斯零件查询(RB455) - CASE IH ROUND BALER - NORTH AMERICA (1/14-12/15) (60.260.BL[08]) - VAR - 726574 - ROTOR, MANUAL REVERSER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
822 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47407687
|
[1] |
SHIELD
|
PLO
|
| 2. |
84596268
|
[1] |
SHIELD
|
NH
|
| 3. |
86642515
|
[1] |
DOOR ASSY.
|
PA
Superseded by part number: 87043305
|
| 4. |
47575852
|
[1] |
ANGLE
|
NH
|
| 5. |
87014172
|
[1] |
STOP
|
PA
|
| 6. |
87014170
|
[1] |
LATCH
|
PA
|
| 7. |
47509866
|
[1] |
ADJUSTING WRENCH
|
NH
|
| 8. |
9804255
|
[8] |
BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8
|
NH
|
| 9. |
9804276
|
[8] |
FLANGE NUT,Hex, M6 x 1, Cl 8
|
NH
|
| 10. |
9804258
|
[6] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 11. |
9804277
|
[2] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 12. |
9840986
|
[2] |
CLIP
|
NH
|
| 13. |
9670066
|
[1] |
FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8
|
NH
|
| 14. |
100038
|
[1] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 15. |
9671714
|
[1] |
FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 16. |
9705390
|
[2] |
LATCH
|
NH
Superseded by part number: 81866169
|
| 17. |
721
|
[1] |
WASHER,13.5mm ID x 22.2mm OD x 1.36mm Thk
|
NH
Superseded by part number: 86622500
|
| 18. |
80684
|
[2] |
LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk
|
NH
|
| 19. |
87304
|
[4] |
NUT,#10-24
|
BEL
|
| 20. |
84821
|
[4] |
SCREW,Truss HD, #10 - 24 x 1/2"
|
NH
|
| 21. |
NH291525
|
[1] |
EDGE
|
NH
.39" x .52" Superseded by part number: 86516805
|
| 22. |
197559
|
[1] |
CHAIN,9" L
|
NH
|
| 23. |
86629542
|
[1] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 24. |
647695
|
[1] |
PIN,7.94mm OD
|
NH
|
