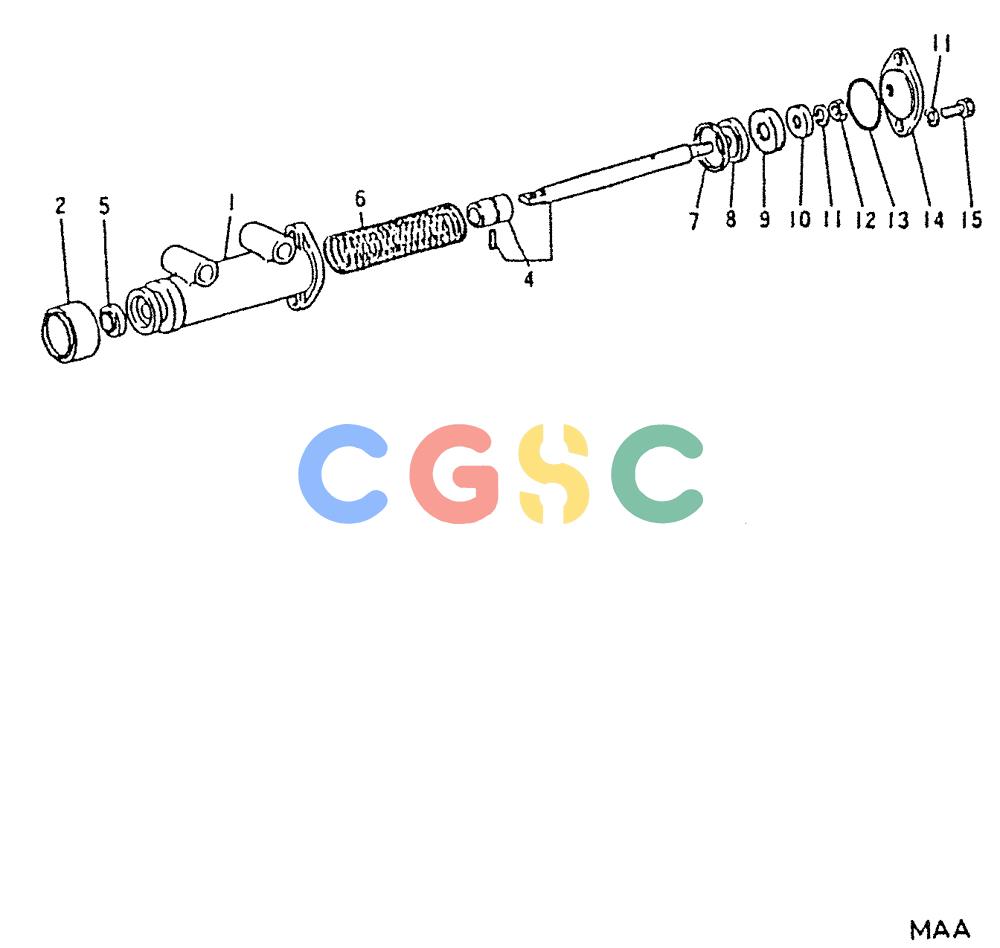

神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (06-012) - CONTROL CYLINDER (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
671 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-15. | VAME053885 | [1] | LINER, ENGINE CYLIND | KOBCONTROL CYLINDER ASSY Superseded by part number: VAME053895 |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCYLINDER, CONTROL |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONCOVER |
| 4. | VAME063092 | [1] | SHAFT ASSY | |
| 5. | VA3153209200 | [1] | SEAL, DUST | |
| 6. | VAME721519 | [1] | SPRING, RETURN | |
| 7. | VA3123355132 | [1] | RING, WEAR | |
| 8. | VAME721524 | [1] | PLATE, PISTON | |
| 9. | VA3153209300 | [1] | PACKING, PISTON | |
| 10. | VA3003304117 | [1] | RETAINER | |
| 11. | VAMF450405 | [3] | WASHER | KOBWASHER, SPG 8 Superseded by part number: 132502A1 |
| 12. | VAMF430005 | [1] | NUT | KOBNUT 8 Superseded by part number: VAF230008000 |
| 13. | VA3153209100 | [1] | O-RING | |
| 14. | VAME706602 | [1] | COVER | |
| 15. | VAMC820973 | [2] | BOLT | |
